Ferrari 458 Speciale Aperta (Convertible) — Timing System - Drive (diagram 006)

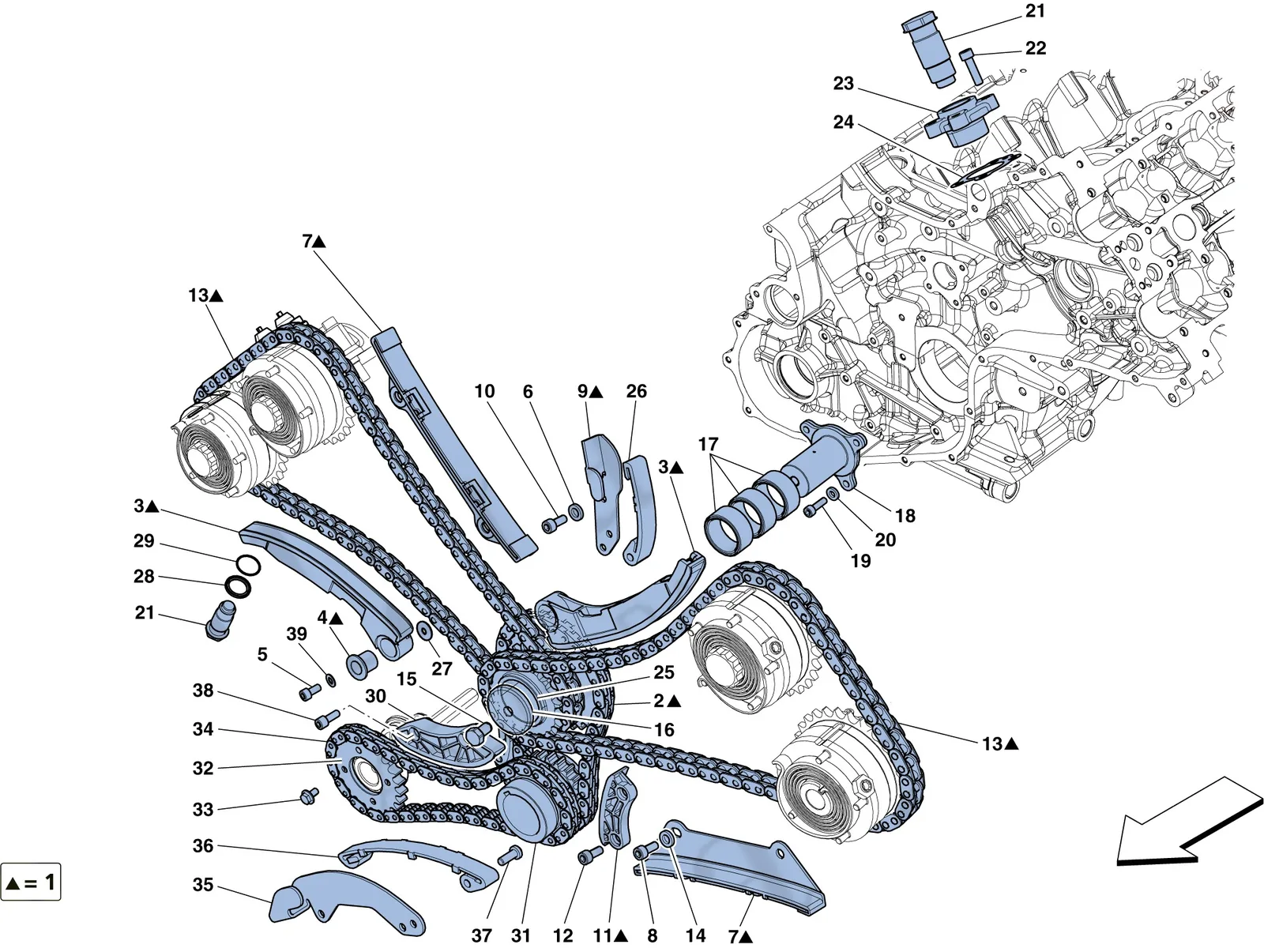

Exploded view of the timing system - drive on the Ferrari 458 Speciale Aperta (Convertible), with 50 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

Ferrari 458 Speciale Aperta (Convertible) Timing System - Drive exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
1284514Ferrari Valve Timing and Pump Drive System - 284514SupersededOrder 315694 instead
1315694Ferrari Valve Timing and Pump Drive System - 315694$1,864.95Special order, ships in 7-14 days
2175286Ferrari Central Timing Chain - 175286$73.41Special order, ships in 7-14 days
3186184Ferrari Guide Shoe -Timing Chain - 186184$237.40Special order, ships in 7-14 days
4175303Ferrari Bush For Timing Guide - 175303$56.52Special order, ships in 7-14 days
514306424Ferrari Screw M8 x 25mm - 14306424SupersededOrder 14306421 instead
612647624Ferrari Washer D 6.45-16x2 - 12647624$0.19Available, ships in 3-6 days
7186185Ferrari Fixed Tension Guide - Timing Chain - 186185$93.00Special order, ships in 7-14 days
814306224Ferrari Screw M8 x 16 - 14306224$0.38Available, ships in 3-6 days
9186159Ferrari Chain Support - 186159$48.93Special order, ships in 7-14 days
10282392Ferrari Screw 6x14 - 282392$0.96Available, ships in 3-6 days
11306094Ferrari Fixed Shoe - 306094$105.86Available, ships in 3-6 days
11186181Ferrari Fixed Shoe - 186181SupersededOrder 306094 instead
12282397Ferrari Screw 6x25 - 282397$1.02Available, ships in 3-6 days
13193616Ferrari Timing Control Chain - 193616$83.27Available, ships in 3-6 days
14163759Ferrari Washer - 163759$26.20Special order, ships in 7-14 days
1516043124Ferrari Screw M8 x 14 - 16043124$0.33Special order, ships in 7-14 days
16194262Ferrari Spacer - 194262$63.90Special order, ships in 7-14 days
17175282Ferrari Roller Cage - 175282$16.29Special order, ships in 7-14 days
18212970Ferrari Support - 212970$237.40Special order, ships in 7-14 days
1914304224Ferrari Screw M5 x 16 - 14304224$0.27Available, ships in 3-6 days
2011181574Ferrari Washer - 11181574$0.06Available, ships in 3-6 days
21197880Ferrari Hydraulic Tensioner - 197880$232.51Available, ships in 3-6 days
22231619Ferrari Screw M6 x 22 - 231619$0.54Available, ships in 3-6 days
23190060Ferrari Bush For Tensioner - 190060$76.13Special order, ships in 7-14 days
24247147Ferrari Gasket - 247147SupersededOrder 323282 instead
24323282Ferrari Gasket - 323282$3.39Available, ships in 3-6 days
25193565Ferrari Transmission Toothed Wheel - 193565$342.66Special order, ships in 7-14 days
26196683Ferrari Chain Tensioner - 196683$73.41Special order, ships in 7-14 days
27175306Ferrari Washer - 175306$7.84Special order, ships in 7-14 days
28190171Ferrari Spacer - 190171$12.15Special order, ships in 7-14 days
29192069Ferrari O-Ring Seal - 192069$2.41Available, ships in 3-6 days
30249844Ferrari Fixed Shoe - 249844$168.88Special order, ships in 7-14 days
31291034Ferrari Crankshaft Gear - 291034$955.96Special order, ships in 7-14 days
32255815Ferrari Pump Drive Gear - 255815$587.44Special order, ships in 7-14 days
33255780Ferrari Screw 5x9 - 255780$2.59Special order, ships in 7-14 days
34253294Ferrari Chain 23x23 - 253294$1,639.98Special order, ships in 7-14 days
35253293Ferrari Mounting - 253293$102.77Special order, ships in 7-14 days
36272014Ferrari Mobile Shoe - 272014$108.16Special order, ships in 7-14 days
38282396Ferrari Screw 6x22 - 282396$1.23Available, ships in 3-6 days
3910569373Ferrari Washer - 10569373$0.17Available, ships in 3-6 days
39255527Ferrari Washer Dia 8 1X12 - 255527SupersededOrder 10569373 instead
16043121Ferrari Bolt 8X15 Uni 188 - 16043121SupersededOrder 16043124 instead
244214Ferrari Crankshaft Gear - 244214SupersededOrder 291034 instead
185854Ferrari Gasket For Hydraulic Tensioner - 185854SupersededOrder 323282 instead
249904Ferrari Mobile Shoe - 249904SupersededOrder 272014 instead
14432221Ferrari Screw - 14432221SupersededOrder 231619 instead
14432224Ferrari Screw M6 x 22 - 14432224SupersededOrder 231619 instead
253292Ferrari Valve Timing and Pump Drive System - 253292SupersededOrder 315694 instead
279065Ferrari Valve Timing and Pump Drive System - 279065SupersededOrder 315694 instead
