Ferrari 458 Speciale Aperta (Convertible) — Fuel System Pumps And Pipes (diagram 009)

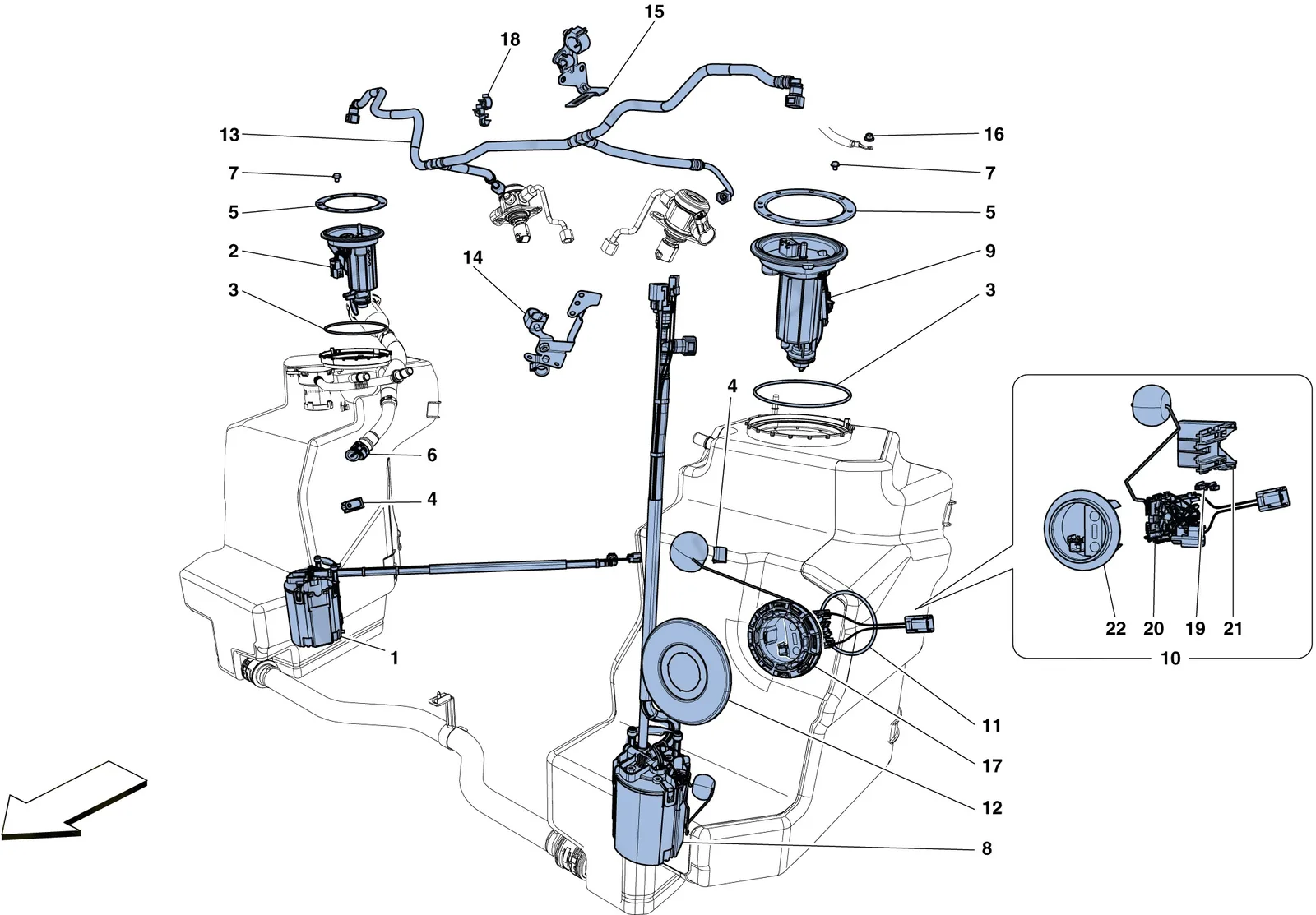

Exploded view of the fuel system pumps and pipes on the Ferrari 458 Speciale Aperta (Convertible), with 28 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
/009.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 272086 | Ferrari RH Fuel Pump - 272086 | $2,814.21 | Special order, ships in 7-14 days |
| 2 | 282784 | Ferrari Fuel Pump with Filter (RH) - 282784 | $614.90 | In stock |
| 3 | 275314 | Ferrari O-Ring - 275314 | $12.31 | Available, ships in 3-6 days |
| 3 | 239412 | Ferrari O-Ring - 239412 | $21.51 | Available, ships in 3-6 days |
| 4 | 254078 | Ferrari Clip - 254078 | $3.68 | Special order, ships in 7-14 days |
| 5 | 275998 | Ferrari Fastener Ring - 275998 | $120.46 | Available, ships in 3-6 days |
| 6 | 237407 | Ferrari On-Off Valve - 237407 | $56.52 | Special order, ships in 7-14 days |
| 7 | 256323 | Ferrari Screw 5x16 - 256323 | $0.98 | Available, ships in 3-6 days |
| 8 | 272087 | Ferrari LH Fuel Pump - 272087 | $2,548.77 | Available, ships in 3-6 days |
| 9 | 282785 | Ferrari Fuel Pump with Filter (LH) - 282785 | $614.90 | Contact us |
| 10 | 273540 | Ferrari Fuel Level Sensor - 273540 | Price on request | Contact us for price and availability |
| 11 | 239413 | Ferrari O-Ring - 239413 | $9.29 | Available, ships in 3-6 days |
| 12 | 250480 | Ferrari Inspection Cap - 250480 | $46.69 | Special order, ships in 7-14 days |
| 13 | 272380 | Ferrari Delivery Pipe - 272380 | $685.34 | Special order, ships in 7-14 days |
| 14 | 262273 | Ferrari Wiring Harness Fastener Bracket - 262273 | $66.07 | Special order, ships in 7-14 days |
| 15 | 290701 | Ferrari Channel Fastener Bracket - 290701 | Price on request | Contact us for price and availability |
| 16 | 14040514 | Ferrari Flanged Nut - 14040514 | Superseded | Order 13046011 instead |
| 17 | 276001 | Ferrari Ring - 276001 | $524.51 | Special order, ships in 7-14 days |
| 18 | 276436 | Ferrari Clip - 276436 | $3.89 | Available, ships in 3-6 days |
| 19 | 238688 | Ferrari Connector - 238688 | $88.49 | Special order, ships in 7-14 days |
| 20 | 253598 | Ferrari Fuel Level Sensor - 253598 | $393.93 | Special order, ships in 7-14 days |
| 21 | 254311 | Ferrari Angle Adaptor - 254311 | $16.94 | Special order, ships in 7-14 days |
| 22 | 273479 | Ferrari Support - 273479 | $194.22 | Special order, ships in 7-14 days |
| 261154 | Ferrari Delivery Pipe - 261154 | Superseded | Order 272380 instead | |
| 13046011 | Ferrari Flanged Nut - 13046011 | $0.73 | Available, ships in 3-6 days | |
| 253597 | Ferrari LH Fuel Pump Filter - 253597 | Superseded | Order 282785 instead | |
| 181929 | Ferrari On-Off Valve - 181929 | $440.56 | Special order, ships in 7-14 days | |
| 253600 | Ferrari RH Fuel Pump Filter - 253600 | Superseded | Order 282784 instead |
