Ferrari 458 Speciale Aperta (Convertible) — Fuel Tanks - Fasteners And Guards (diagram 011)

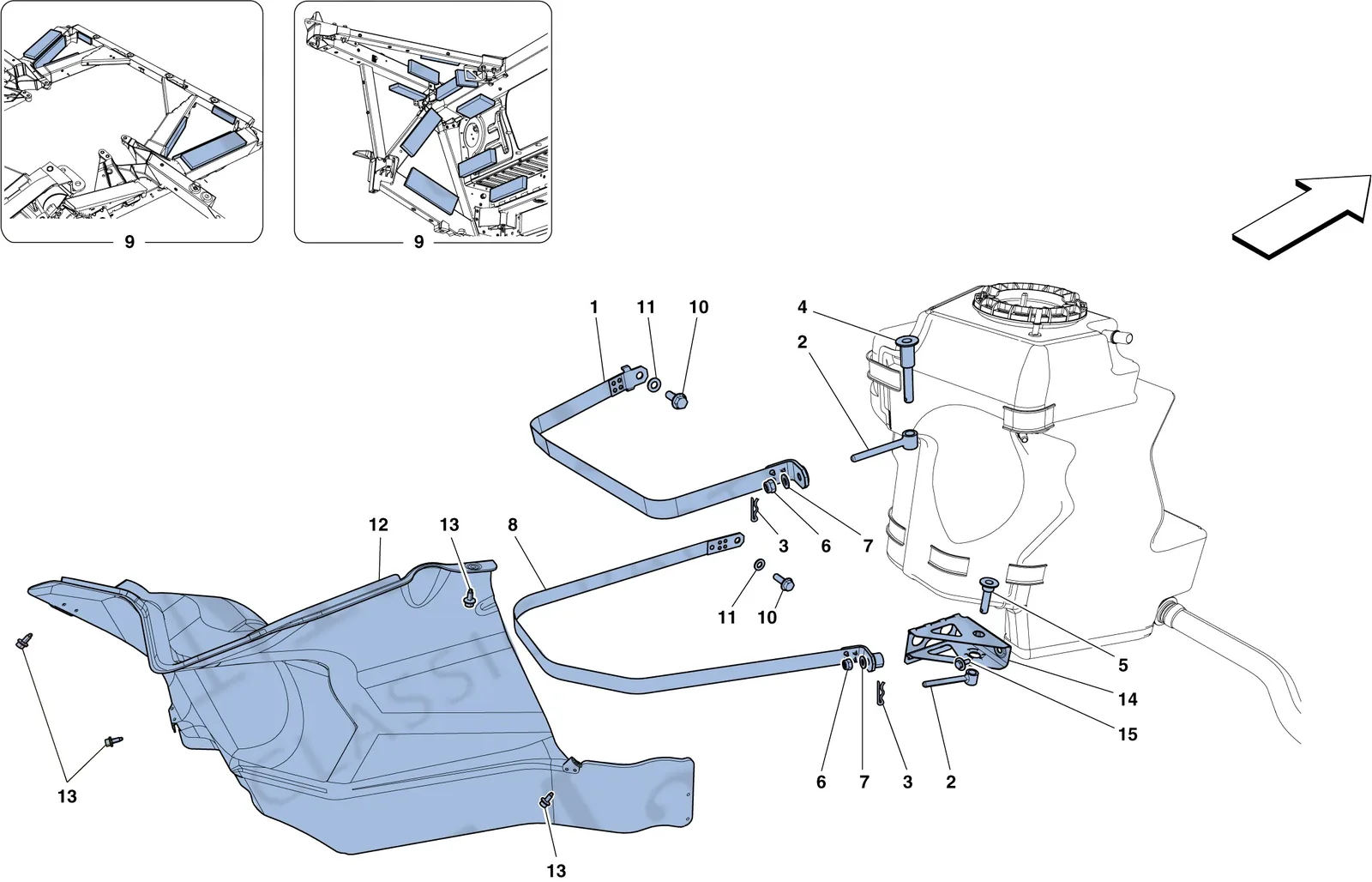

Exploded view of the fuel tanks - fasteners and guards on the Ferrari 458 Speciale Aperta (Convertible), with 24 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
/011.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 263506 | Ferrari RH Upper Tank Retainer Strap - 263506 | $144.38 | Special order, ships in 7-14 days |
| 1 | 263507 | Ferrari LH Upper Tank Retainer Strap - 263507 | $144.38 | Special order, ships in 7-14 days |
| 2 | 298222 | Ferrari Tank Strap Tie-Rod - 298222 | $139.49 | Special order, ships in 7-14 days |
| 3 | 10796440 | Ferrari Split Pin - 10796440 | Price on request | Contact us for price and availability |
| 4 | 271055 | Ferrari Upper Pin - 271055 | $28.25 | Special order, ships in 7-14 days |
| 5 | 256055 | Ferrari Lower Pin - 256055 | $18.82 | Special order, ships in 7-14 days |
| 6 | 14058511 | Ferrari Nut M8 x 8 - 14058511 | $0.40 | Special order, ships in 7-14 days |
| 7 | 14496524 | Ferrari Washer - 14496524 | $0.19 | Available, ships in 3-6 days |
| 8 | 263508 | Ferrari RH Lower Tank Retainer Strap - 263508 | $144.38 | Special order, ships in 7-14 days |
| 8 | 263509 | Ferrari LH Lower Tank Retainer Strap - 263509 | $144.38 | Special order, ships in 7-14 days |
| 9 | 278256 | Ferrari Fuel Tank Anti-Vibration Pad Kit - 278256 | Superseded | Order 296446 instead |
| 9 | 296446 | Ferrari Fuel Tank Anti-Vibration Pad Kit - 296446 | $269.23 | Special order, ships in 7-14 days |
| 10 | 68984500 | Ferrari Screw TEF M10 x 1.25 x 30 - 68984500 | $5.86 | Available, ships in 3-6 days |
| 11 | 11190574 | Ferrari Washer - 11190574 | $0.13 | Available, ships in 3-6 days |
| 12 | 283261 | Ferrari RH Tank Heat Insulation - 283261 | $1,272.82 | Special order, ships in 7-14 days |
| 12 | 283260 | Ferrari LH Tank Heat Insulation - 283260 | $1,272.82 | Special order, ships in 7-14 days |
| 13 | 11585024 | Ferrari Screw 6X20 - 11585024 | $0.63 | Available, ships in 3-6 days |
| 14 | 263510 | Ferrari RH Mounting Bracket For Removable Subframe - 263510 | $124.81 | Special order, ships in 7-14 days |
| 14 | 263513 | Ferrari LH Mounting Bracket For Removable Subframe - 263513 | $124.81 | Special order, ships in 7-14 days |
| 15 | 81591700 | Ferrari Screw TE M6 x 18 with washer - 81591700 | $4.12 | Available, ships in 3-6 days |
| 10796401 | Ferrari Split Pin - 10796401 | $0.13 | Available, ships in 3-6 days | |
| 264555 | Ferrari Split Pin - 264555 | Price on request | Contact us for price and availability | |
| 263505 | Ferrari Tank Strap Tie-Rod - 263505 | $31.80 | Special order, ships in 7-14 days | |
| 275074 | Ferrari Tank Strap Tie-Rod - 275074 | $39.14 | Special order, ships in 7-14 days |
