Ferrari 458 Speciale Aperta (Convertible) — Intake Manifold Cover (diagram 015)

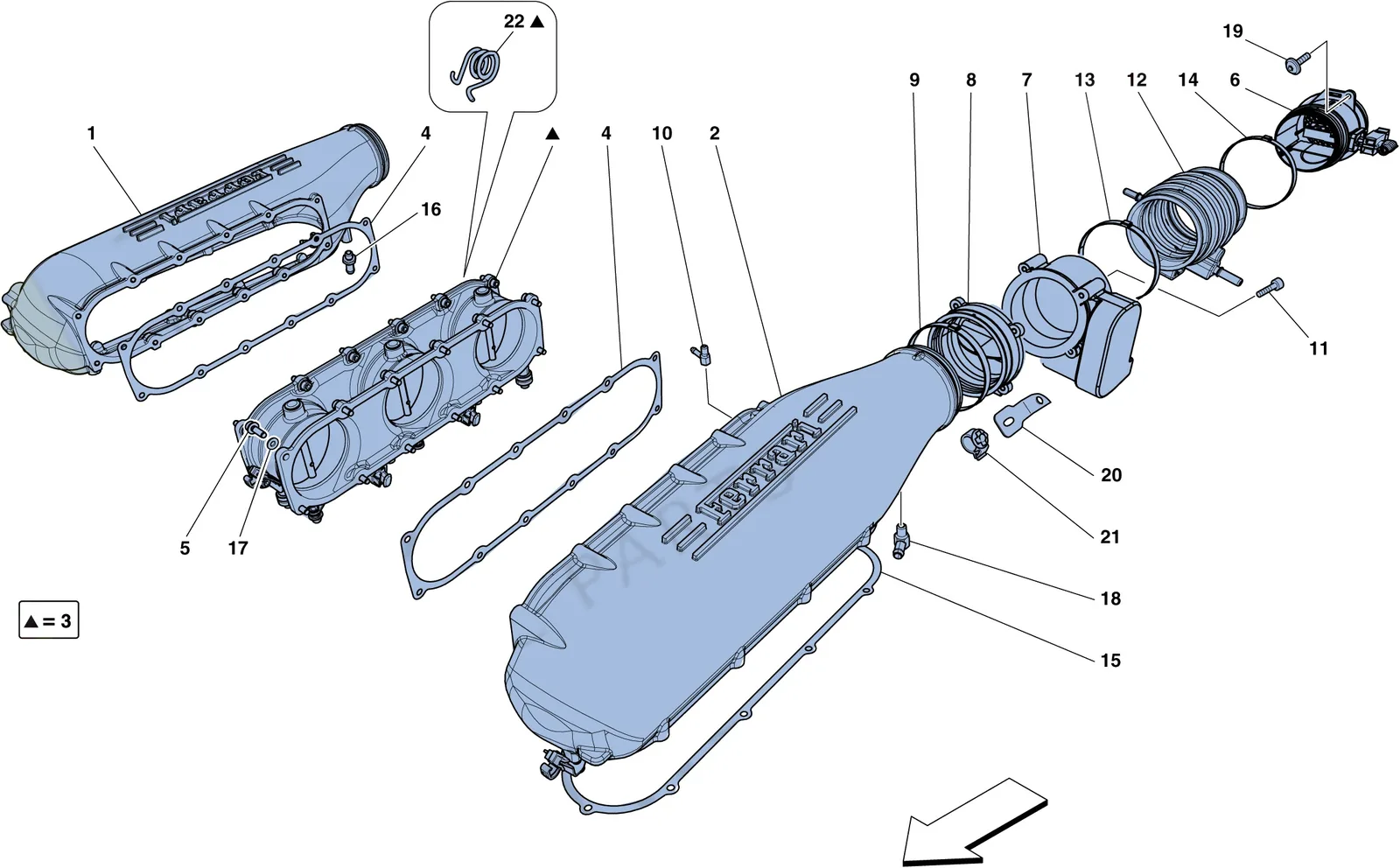

Exploded view of the intake manifold cover on the Ferrari 458 Speciale Aperta (Convertible), with 37 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
/015.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 305955 | Ferrari RH Intake Plenum - 305955 | $10,959.01 | Contact us to order |
| 2 | 305958 | Ferrari LH Intake Plenum - 305958 | $10,959.01 | Contact us to order |
| 3 | 305960 | Ferrari Central Compensator Body Complete - 305960 | $10,593.02 | Contact us to order |
| 4 | 322517 | Ferrari 458 Intake Manifold / Plenum Gasket - 322517 | $52.25 | In stock |
| 4 | 269670 | Ferrari Plenum Chamber Gasket - 269670 | Superseded | Order 322517 instead |
| 5 | 222998 | Ferrari Screw 6x1x25 - 222998 | $154.46 | Special order, ships in 7-14 days |
| 6 | 245028 | Ferrari Mass Air Flow Sensor - 245028 | $398.80 | In stock |
| 7 | 179912 | Ferrari Throttle Body - 179912 | $1,523.67 | Available, ships in 3-6 days |
| 8 | 240262 | Ferrari Spacer - 240262 | $160.25 | Available, ships in 3-6 days |
| 9 | 190151 | Ferrari/Maserati Intake Hose Clamp - 190151 | $8.00 | In stock |
| 10 | 268875 | Ferrari Connector - 268875 | $78.66 | Special order, ships in 7-14 days |
| 11 | 231624 | Ferrari Allen Screw M6 x 45 - 231624 | Superseded | Order 14305924 instead |
| 12 | 272873 | Ferrari LH Connector Pipe - 272873 | $416.09 | Special order, ships in 7-14 days |
| 12 | 282231 | Ferrari LH Connector Pipe - 282231 | $342.66 | Special order, ships in 7-14 days |
| 12 | 272872 | Ferrari RH Connector Pipe - 272872 | $416.09 | Special order, ships in 7-14 days |
| 12 | 282230 | Ferrari RH Connector Pipe - 282230 | $342.66 | Special order, ships in 7-14 days |
| 13 | 180046 | Ferrari Intake Boot Clamp - 180046 | $3.49 | In stock |
| 15 | 322056 | Ferrari 458 Manifold / Plenum Gasket - 322056 | $52.25 | In stock |
| 15 | 252890 | Ferrari Plenum Manifold Gasket - 252890 | Superseded | Order 322056 instead |
| 16 | 268878 | Ferrari Connector - 268878 | $32.60 | Special order, ships in 7-14 days |
| 17 | 11197774 | Ferrari Conic Washer 6.4x12x1.2 - 11197774 | $0.12 | Available, ships in 3-6 days |
| 18 | 268877 | Ferrari Connector - 268877 | $110.61 | Special order, ships in 7-14 days |
| 19 | 169814 | Ferrari Screw M5 x 14 TBFEI - 169814 | $2.61 | Available, ships in 3-6 days |
| 20 | 249878 | Ferrari Bracket - 249878 | $11.23 | Special order, ships in 7-14 days |
| 21 | 178430 | Ferrari Fuel Pipe Clip - 178430 | $0.73 | Available, ships in 3-6 days |
| 22 | 235784 | Ferrari Spring - 235784 | $22.25 | Special order, ships in 7-14 days |
| 246598 | Ferrari LH Connector Pipe - 246598 | $239.85 | Special order, ships in 7-14 days | |
| 247257 | Ferrari LH Connector Pipe - 247257 | Price on request | Contact us for price and availability | |
| 272875 | Ferrari LH Connector Pipe - 272875 | $416.09 | Special order, ships in 7-14 days | |
| 252892 | Ferrari Plenum Chamber Gasket - 252892 | Superseded | Order 322517 instead | |
| 246596 | Ferrari RH Connector Pipe - 246596 | $239.85 | Special order, ships in 7-14 days | |
| 247256 | Ferrari RH Connector Pipe - 247256 | Price on request | Contact us for price and availability | |
| 272874 | Ferrari RH Connector Pipe - 272874 | $416.09 | Special order, ships in 7-14 days | |
| 179671 | Ferrari Spacer - 179671 | Superseded | Order 240262 instead | |
| 195206 | Ferrari Spacer - 195206 | Superseded | Order 240262 instead | |
| 210194 | Ferrari Union - 210194 | Superseded | Order 268878 instead | |
| 11197779 | Ferrari Washer - 11197779 | Superseded | Order 11197774 instead |
