Ferrari 458 Speciale Aperta (Convertible) — Gearbox Oil Lubrication And Cooling System (diagram 023)

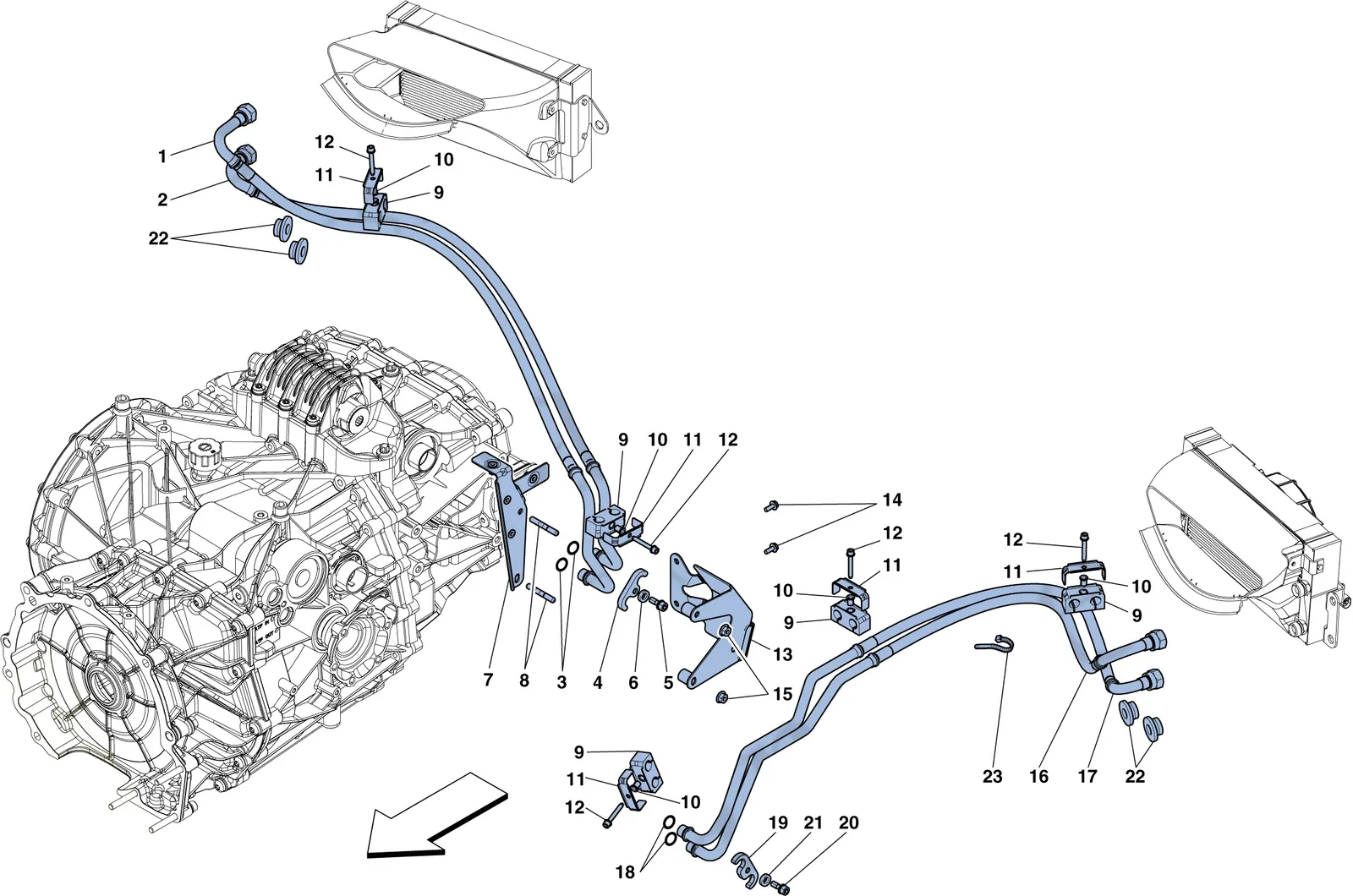

Exploded view of the gearbox oil lubrication and cooling system on the Ferrari 458 Speciale Aperta (Convertible), with 24 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
/023.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 248224 | Ferrari Gearbox Oil Delivery Pipe - 248224 | $685.34 | Special order, ships in 7-14 days |
| 2 | 248225 | Ferrari Gearbox Oil Delivery Pipe - 248225 | $2,028.13 | Special order, ships in 7-14 days |
| 3 | 254644 | Ferrari O-Ring Gasket - 254644 | $0.77 | Available, ships in 3-6 days |
| 4 | 253632 | Ferrari Fork - 253632 | Superseded | Order 253631 instead |
| 5 | 253465 | Ferrari Screw - 253465 | $65.24 | Special order, ships in 7-14 days |
| 6 | 11198074 | Ferrari/Maserati Washer - 11198074 | $0.14 | In stock |
| 7 | 306000 | Ferrari Bracket - 306000 | $97.88 | Special order, ships in 7-14 days |
| 8 | 13543824 | Ferrari Stud Bolt M8x16 -Shank length 40mm- - 13543824 | $6.31 | Available, ships in 3-6 days |
| 9 | 243396 | Ferrari Rubber Support Block - 243396 | $41.76 | Special order, ships in 7-14 days |
| 10 | 243399 | Ferrari Bushing - 243399 | $1.44 | Special order, ships in 7-14 days |
| 11 | 243398 | Ferrari Plate - 243398 | $21.60 | Special order, ships in 7-14 days |
| 12 | 11628524 | Ferrari Screw 6X40 - 11628524 | $2.59 | Special order, ships in 7-14 days |
| 12 | 11568224 | Ferrari Screw 6X45 - 11568224 | $1.84 | Special order, ships in 7-14 days |
| 13 | 304575 | Ferrari Bracket - 304575 | $183.56 | Special order, ships in 7-14 days |
| 14 | 13836424 | Ferrari Screw 6x16 - 13836424 | $0.65 | Available, ships in 3-6 days |
| 15 | 13046224 | Ferrari Nut - 13046224 | $0.73 | Available, ships in 3-6 days |
| 16 | 256689 | Ferrari Oil Delivery Pipe - 256689 | $2,195.56 | Available, ships in 3-6 days |
| 17 | 260773 | Ferrari Oil Return Pipe - 260773 | $2,627.26 | Special order, ships in 7-14 days |
| 19 | 274609 | Ferrari Fork - 274609 | $73.94 | Special order, ships in 7-14 days |
| 22 | 283630 | Ferrari Drip Baffle Ring - 283630 | $11.29 | Special order, ships in 7-14 days |
| 23 | 257790 | Ferrari Ring Clamp - 257790 | $4.10 | Special order, ships in 7-14 days |
| 253464 | Ferrari Fork - 253464 | Superseded | Order 274609 instead | |
| 253631 | Ferrari Fork Without Captive Screw - 253631 | $83.68 | Special order, ships in 7-14 days | |
| 13543821 | Ferrari Stud M8 x 16 Gambo 40 - 13543821 | $4.54 | Special order, ships in 7-14 days |
