Ferrari 458 Speciale Aperta (Convertible) — Complete Pedal Board Assembly (diagram 024)

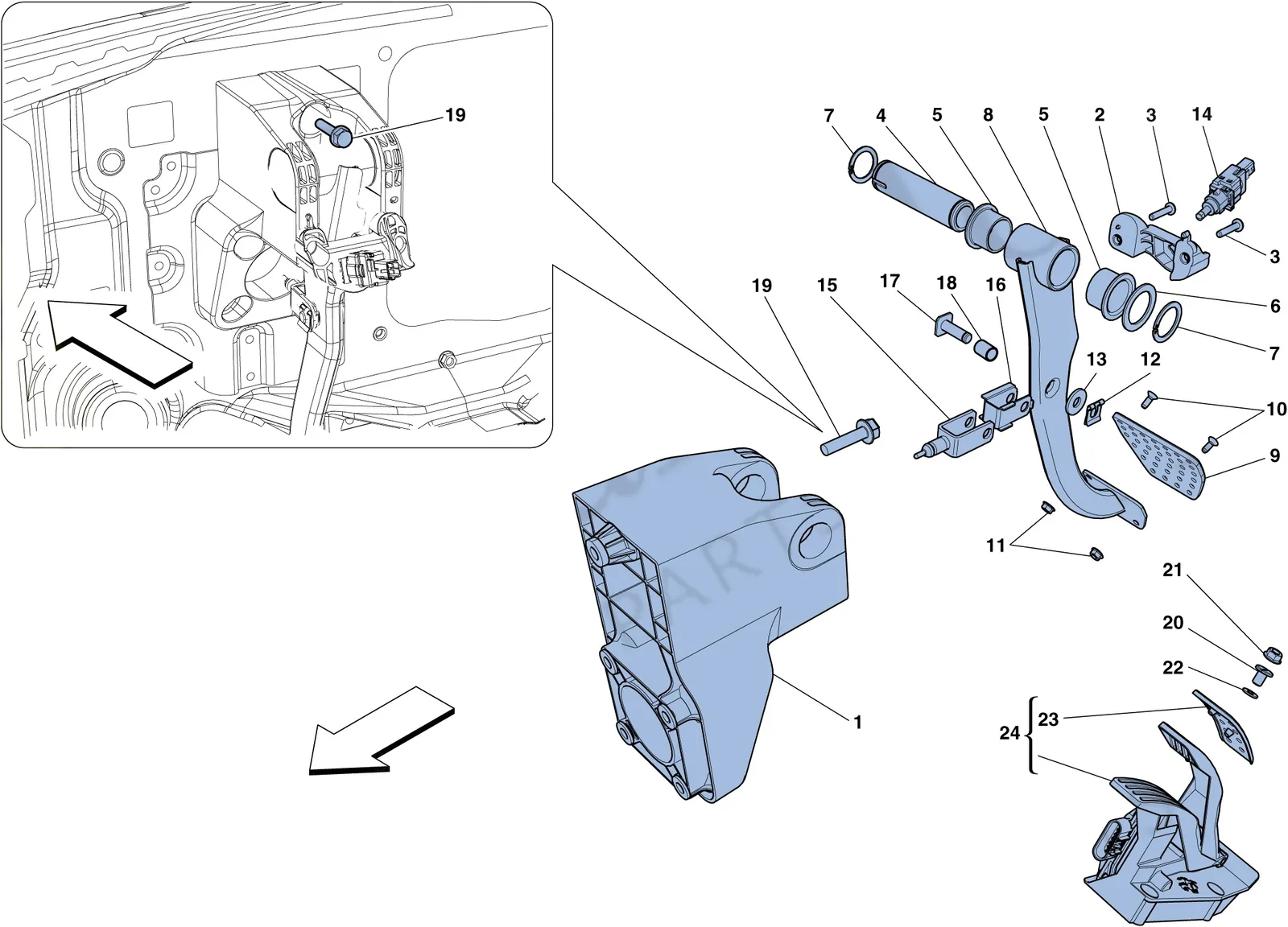

Exploded view of the complete pedal board assembly on the Ferrari 458 Speciale Aperta (Convertible), with 27 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
/024.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 256436 | Ferrari Pedal Board Mounting - 256436 | $837.14 | Special order, ships in 7-14 days |
| 2 | 259123 | Ferrari F1 Switch Bracket - 259123 | $88.09 | Special order, ships in 7-14 days |
| 3 | 240931 | Ferrari Screw - 240931 | $9.16 | Special order, ships in 7-14 days |
| 4 | 240930 | Ferrari Pin - 240930 | $130.29 | Special order, ships in 7-14 days |
| 5 | 240771 | Ferrari Part Search Results - 240771 | $102.69 | Special order, ships in 7-14 days |
| 6 | 240929 | Ferrari Rubber Pivot Washer - 240929 | $20.09 | Special order, ships in 7-14 days |
| 7 | 12700076 | Ferrari Seeger Ring - 12700076 | $18.99 | Special order, ships in 7-14 days |
| 8 | 256426 | Ferrari Brake Pedal LHD - 256426 | $1,649.69 | Special order, ships in 7-14 days |
| 8 | 228972 | Ferrari Brake Pedal RHD - 228972 | $1,231.11 | Special order, ships in 7-14 days |
| 9 | 240987 | Ferrari Drilled Plate - 240987 | $417.97 | Special order, ships in 7-14 days |
| 10 | 14441324 | Ferrari Countersunk Allen Screw TSEI M6 x 16 - 14441324 | $0.52 | Available, ships in 3-6 days |
| 11 | 12578111 | Ferrari Flanged Nyloc Nut - 12578111 | $0.50 | Available, ships in 3-6 days |
| 12 | 11064176 | Ferrari Safety Clip - 11064176 | $5.65 | Available, ships in 3-6 days |
| 13 | 245181 | Ferrari Rubber Washer - 245181 | $15.49 | Special order, ships in 7-14 days |
| 14 | 201957 | Ferrari/Maserati Push Button Switch - 201957 | $56.90 | In stock |
| 15 | 245178 | Ferrari Brake Servo Linkage Yoke - 245178 | $120.46 | Special order, ships in 7-14 days |
| 16 | 245179 | Ferrari Cage - 245179 | $39.31 | Special order, ships in 7-14 days |
| 17 | 245180 | Ferrari Pin - 245180 | $127.82 | Special order, ships in 7-14 days |
| 18 | 260639 | Ferrari Bushing - 260639 | $28.39 | Special order, ships in 7-14 days |
| 19 | 16287524 | Ferrari Flanged Bolt M8 x 40 - 16287524 | $2.59 | Available, ships in 3-6 days |
| 20 | 69855300 | Ferrari Press-Fit Button - 69855300 | $1.02 | Available, ships in 3-6 days |
| 21 | 102741 | Ferrari/Maserati Nyloc Nut M6 - 102741 | $0.45 | In stock |
| 21 | 12575421 | Ferrari Nyloc Nut M6 x 6 - 12575421 | $0.40 | Available, ships in 3-6 days |
| 22 | 12646624 | Ferrari Washer 6.15-15x1.5 - 12646624 | $0.40 | Available, ships in 3-6 days |
| 23 | 243120 | Ferrari Accelerator Pedal Complete - 243120 | $442.56 | Special order, ships in 7-14 days |
| 24 | 243117 | Ferrari Accelerator Pedal - 243117 | $450.00 | In stock |
| 12575411 | Ferrari Nyloc Nut M6 x 6 - 12575411 | Superseded | Order 12575421 instead |
