Ferrari 458 Speciale Aperta (Convertible) — Front Brake Callipers (diagram 029)

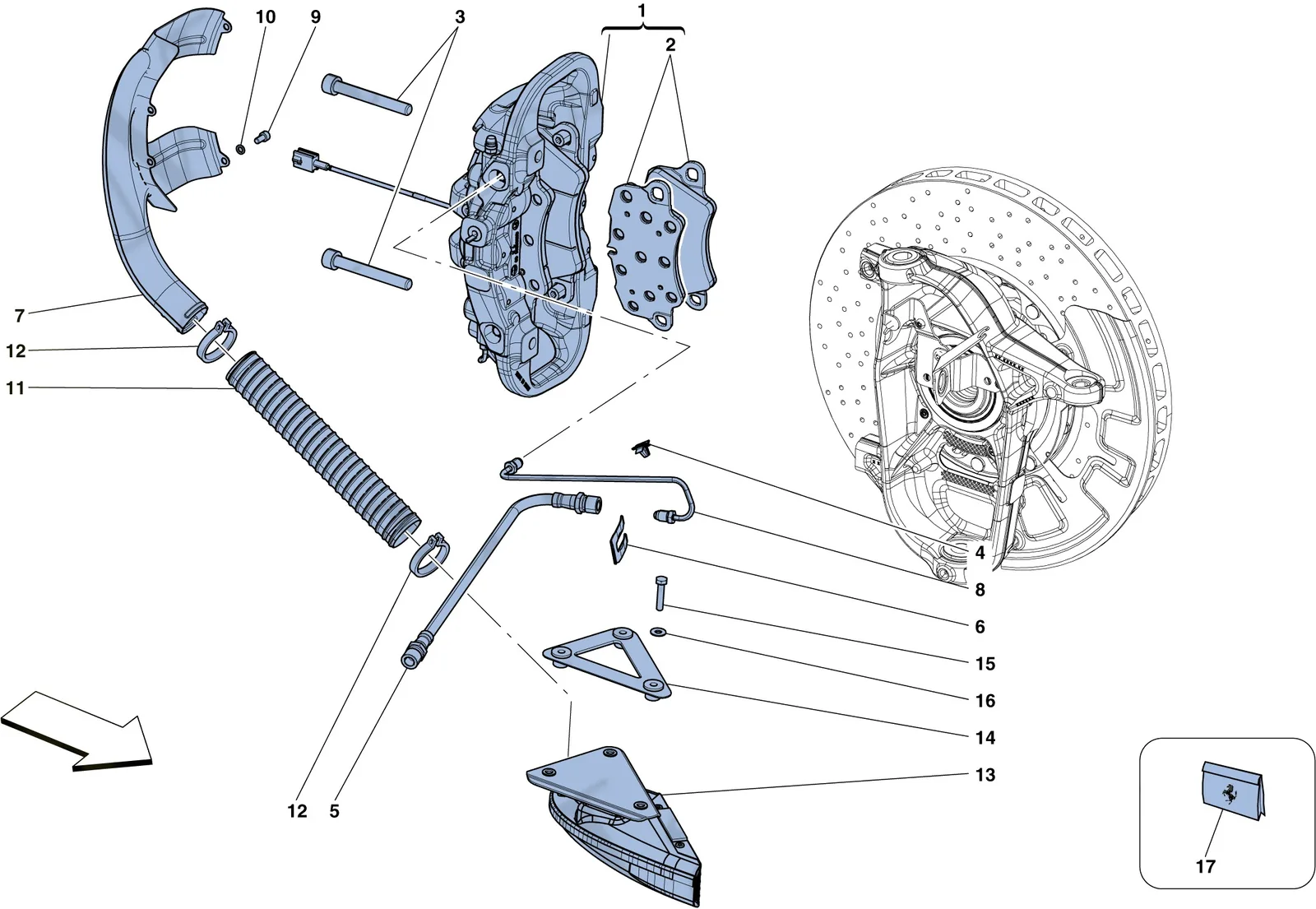

Exploded view of the front brake callipers on the Ferrari 458 Speciale Aperta (Convertible), with 43 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
/029.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 306261 | Ferrari LH Front Caliper With Pads - 306261 | $8,910.40 | Special order, ships in 7-14 days |
| 1 | 306283 | Ferrari LH Front Caliper With Pads - 306283 | $9,208.78 | Special order, ships in 7-14 days |
| 1 | 306281 | Ferrari LH Front Caliper With Pads - 306281 | $9,011.93 | Special order, ships in 7-14 days |
| 1 | 306279 | Ferrari LH Front Caliper With Pads - 306279 | $9,192.21 | Special order, ships in 7-14 days |
| 1 | 306277 | Ferrari LH Front Caliper With Pads - 306277 | $8,968.41 | Special order, ships in 7-14 days |
| 1 | 306274 | Ferrari LH Front Caliper With Pads - 306274 | $9,753.77 | Special order, ships in 7-14 days |
| 1 | 306272 | Ferrari LH Front Caliper With Pads - 306272 | $9,208.78 | Special order, ships in 7-14 days |
| 1 | 306267 | Ferrari LH Front Caliper With Pads - 306267 | $8,910.40 | Special order, ships in 7-14 days |
| 1 | 306264 | Ferrari LH Front Caliper With Pads - 306264 | $8,910.40 | Special order, ships in 7-14 days |
| 1 | 306262 | Ferrari RH Front Caliper With Pads - 306262 | $8,910.40 | Special order, ships in 7-14 days |
| 1 | 306284 | Ferrari RH Front Caliper With Pads - 306284 | $9,208.78 | Special order, ships in 7-14 days |
| 1 | 306282 | Ferrari RH Front Caliper With Pads - 306282 | $9,011.93 | Special order, ships in 7-14 days |
| 1 | 306280 | Ferrari RH Front Caliper With Pads - 306280 | $9,192.21 | Special order, ships in 7-14 days |
| 1 | 306278 | Ferrari RH Front Caliper With Pads - 306278 | Price on request | Contact us for price and availability |
| 1 | 306275 | Ferrari RH Front Caliper With Pads - 306275 | $9,753.77 | Special order, ships in 7-14 days |
| 1 | 306273 | Ferrari RH Front Caliper With Pads - 306273 | $9,208.78 | Special order, ships in 7-14 days |
| 1 | 306271 | Ferrari RH Front Caliper With Pads - 306271 | $8,910.40 | Special order, ships in 7-14 days |
| 1 | 306266 | Ferrari RH Front Caliper With Pads - 306266 | $8,910.40 | Special order, ships in 7-14 days |
| 2 | 70003278 | Ferrari Front Pad Set With Spring - 70003278 | $2,852.46 | Available, ships in 3-6 days |
| 3 | 195167 | Ferrari Screw TCEI M12 x 1.5 x 95 - 195167 | $34.94 | Available, ships in 3-6 days |
| 4 | 204781 | Ferrari Clip - 204781 | $1.67 | Available, ships in 3-6 days |
| 5 | 271711 | Ferrari Front Flexible Tube 330mm - 271711 | Superseded | Order 977802 instead |
| 5 | 977802 | Ferrari Flexible Brake Hose L 330mm - 977802 | $81.11 | Available, ships in 3-6 days |
| 6 | 116374 | Ferrari/Maserati Clip - 116374 | $3.20 | In stock |
| 7 | 306017 | Ferrari LH Front Caliper Housing Cover - 306017 | $1,468.65 | Special order, ships in 7-14 days |
| 7 | 306018 | Ferrari RH Front Caliper Housing Cover - 306018 | $1,468.65 | Special order, ships in 7-14 days |
| 8 | 292474 | Ferrari RH Hose Front Brake Pipe From Caliper - 292474 | $344.21 | Special order, ships in 7-14 days |
| 8 | 292473 | Ferrari LH Hose Front Brake Pipe From Caliper - 292473 | $344.21 | Special order, ships in 7-14 days |
| 9 | 14305187 | Ferrari Screw 6x12 - 14305187 | $0.77 | Available, ships in 3-6 days |
| 10 | 12648278 | Ferrari Washer 6 15-10X - 12648278 | $0.50 | Available, ships in 3-6 days |
| 11 | 302698 | Ferrari Brake Air Pipe - 302698 | $172.10 | Special order, ships in 7-14 days |
| 12 | 296782 | Ferrari Hose Clamp 32-50mm - 296782 | $17.67 | Available, ships in 3-6 days |
| 13 | 303202 | Ferrari RH Brake Air Duct - 303202 | $590.91 | Special order, ships in 7-14 days |
| 13 | 303201 | Ferrari LH Brake Air Duct - 303201 | $590.91 | Special order, ships in 7-14 days |
| 14 | 303207 | Ferrari RH Duct Bracket - 303207 | $169.87 | Special order, ships in 7-14 days |
| 14 | 303206 | Ferrari LH Duct Bracket - 303206 | $169.87 | Special order, ships in 7-14 days |
| 15 | 10902824 | Ferrari Screw M6 x 30 - 10902824 | $0.17 | Available, ships in 3-6 days |
| 16 | 11193274 | Ferrari Washer - 11193274 | $0.06 | Available, ships in 3-6 days |
| 17 | 70003492 | Ferrari Front Brake Caliper Dust Seal Kit - 70003492 | $184.38 | Special order, ships in 7-14 days |
| 12486580 | Ferrari Botton - 12486580 | Superseded | Order 204781 instead | |
| 116373 | Ferrari Brake Hose - 977802 | Superseded | Order 977802 instead | |
| 175871 | Ferrari Clip - 175871 | Superseded | Order 204781 instead | |
| 323365 | Ferrari Connector Fastener Clip - 323365 | Superseded | Order 204781 instead |
