Ferrari 458 Speciale Aperta (Convertible) — Front Suspension - Shock Absorber And Brake Disc (diagram 034)

Exploded view of the front suspension - shock absorber and brake disc on the Ferrari 458 Speciale Aperta (Convertible), with 48 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

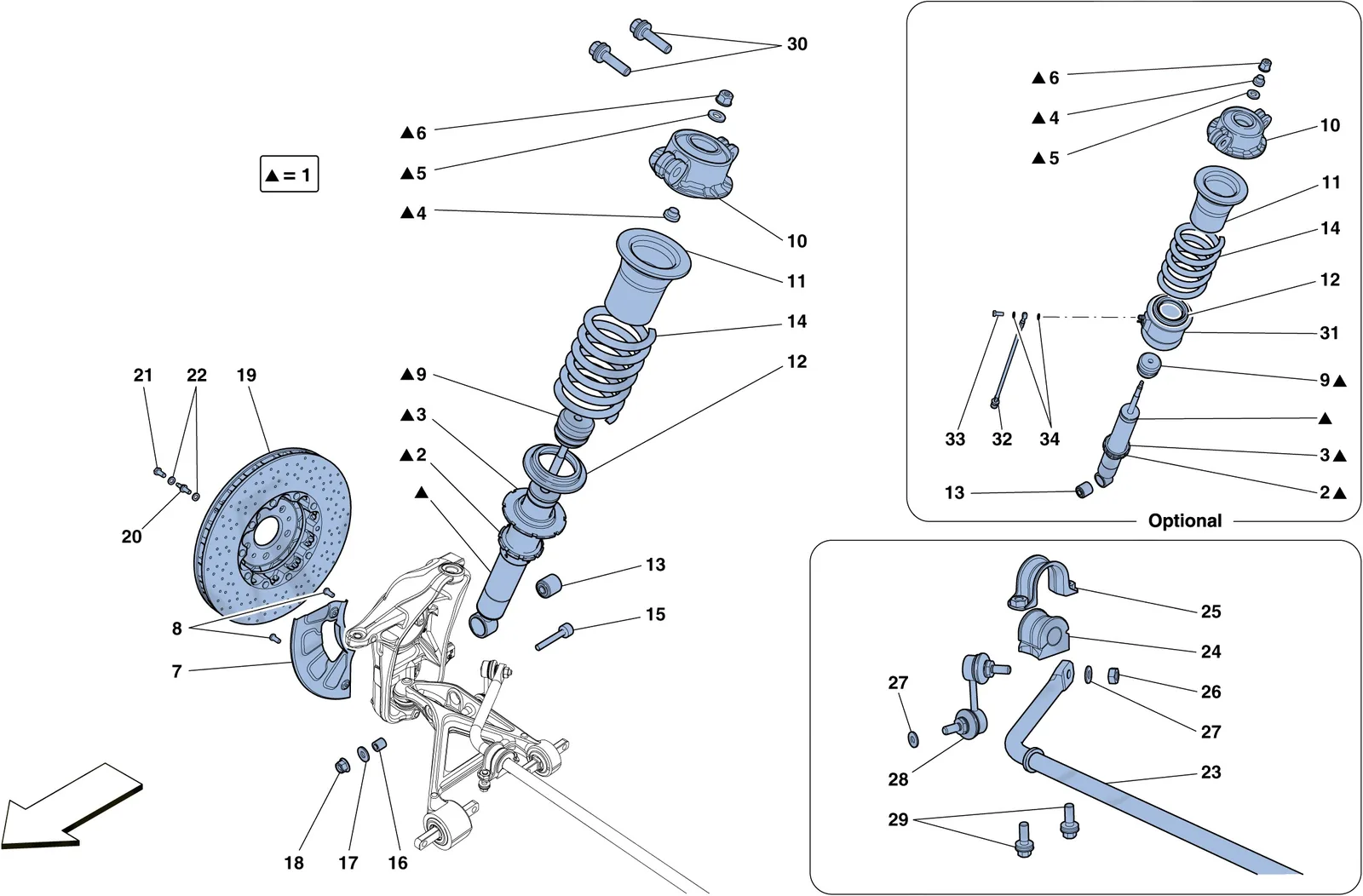

Ferrari 458 Speciale Aperta (Convertible) Front Suspension - Shock Absorber And Brake Disc exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
1302409Ferrari Front Shock Absorber - 302409$3,702.98Available, ships in 3-6 days
1302263Ferrari Front Shock Absorber - 302263SupersededOrder 310994 instead
1310994Ferrari Front Shock Absorber - 310994$4,107.58Special order, ships in 7-14 days
2220351Ferrari Ring Nut - 220351$88.61Special order, ships in 7-14 days
2263196Ferrari Ring Nut - 263196$295.43Available, ships in 3-6 days
3263195Ferrari Spring Retainer - 263195$270.83Special order, ships in 7-14 days
3251483Ferrari Spring Platform - 251483$269.23Available, ships in 3-6 days
4220383Ferrari Bush - 220383$66.35Available, ships in 3-6 days
5220377Ferrari Washer D.12.1 - 24 X 3 - 220377$14.84Special order, ships in 7-14 days
6220378Ferrari Nut M12 - 220378$9.16Special order, ships in 7-14 days
7280651Ferrari RH Front Disc Shield - 280651$639.27Special order, ships in 7-14 days
7280650Ferrari LH Front Disc Shield - 280650$639.27Special order, ships in 7-14 days
8250657Ferrari Screw M6 x 14 TBTX - 250657$13.36Available, ships in 3-6 days
9267936Ferrari Endstop Bush - 267936$66.45Available, ships in 3-6 days
10250394Ferrari 458/F12/California Shock Upper Stop Cap - 250394$456.70In stock
11293621Ferrari Spring Support Pad - 293621$28.39Available, ships in 3-6 days
12188996Ferrari Spring Support Pad - 188996$23.57Available, ships in 3-6 days
13157630Ferrari Front and Rear Shock Bushing PREKOM - 157630$87.45In stock
14302533Ferrari Front Suspension Spring - 302533$212.92Special order, ships in 7-14 days
14312841Ferrari Front Suspension Spring - 312841$171.31Special order, ships in 7-14 days
15237297Ferrari Screw TCEI M12 x 1.25 x 8 - 237297$58.98Special order, ships in 7-14 days
16237821Ferrari Bushing 18x15 - 237821$9.16Available, ships in 3-6 days
1712646921Ferrari Washer - 12646921$0.92Available, ships in 3-6 days
18255271Ferrari Nut M12 x 1.25 x - 255271$2.59Available, ships in 3-6 days
19300249Ferrari Front Brake Disc - 300249SupersededOrder 301125 instead
19301125Ferrari Front Brake Disc - 301125$8,056.39Special order, ships in 7-14 days
20104370Ferrari Wheel Alignment Stud - 104370$16.39In stock
21228131Ferrari Screw M8 x 20 - 228131$1.53Available, ships in 3-6 days
22228132Ferrari Spring Washer - 228132$0.59Available, ships in 3-6 days
23289876Ferrari Stabiliser Bar - 289876$566.30Special order, ships in 7-14 days
24233210Ferrari Stabiliser Bar Bush - 233210$31.93Available, ships in 3-6 days
25245822Ferrari Retainer Bracket - 245822$39.37Available, ships in 3-6 days
2612164714Ferrari Nut M10 x 1.25 x 8 - 12164714$0.82Available, ships in 3-6 days
2712601474Ferrari Wavy Washer 10mm - 12601474$0.06Available, ships in 3-6 days
28246120Ferrari RH Ball Joint Tie-Rod - 246120$169.62Special order, ships in 7-14 days
28246119Ferrari LH Ball Joint Tie-Rod - 246119$169.62Special order, ships in 7-14 days
29245843Ferrari Screw TE M10 x 1.25 x 30 with washer - 245843$4.56Available, ships in 3-6 days
30248790Ferrari Screw M12 x 1.25 x 50 - 248790$7.63Available, ships in 3-6 days
31300214Ferrari Actuator Complete - 300214$2,162.69Special order, ships in 7-14 days
31262384Ferrari Actuator Complete - 262384$2,511.47Special order, ships in 7-14 days
32260409Ferrari Hose For Vehicle Lift - 260409$467.80Special order, ships in 7-14 days
33261587Ferrari Union - 261587$49.14Special order, ships in 7-14 days
34259638Ferrari Gasket 8.7-14 - 259638$21.60Special order, ships in 7-14 days
749878Ferrari Nut - 749878SupersededOrder 220378 instead
190870Ferrari Screw 6x14 - 190870$4.10Special order, ships in 7-14 days
106853Ferrari Spring Washer 10mm - 106853SupersededOrder 12601474 instead
10516873Ferrari Washer - 10516873SupersededOrder 12601474 instead
12601471Ferrari Washer - 12601471SupersededOrder 12601474 instead

All 458 Speciale Aperta (Convertible) diagrams
