Ferrari 458 Speciale Aperta (Convertible) — Battery (diagram 041)

Exploded view of the battery on the Ferrari 458 Speciale Aperta (Convertible), with 53 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

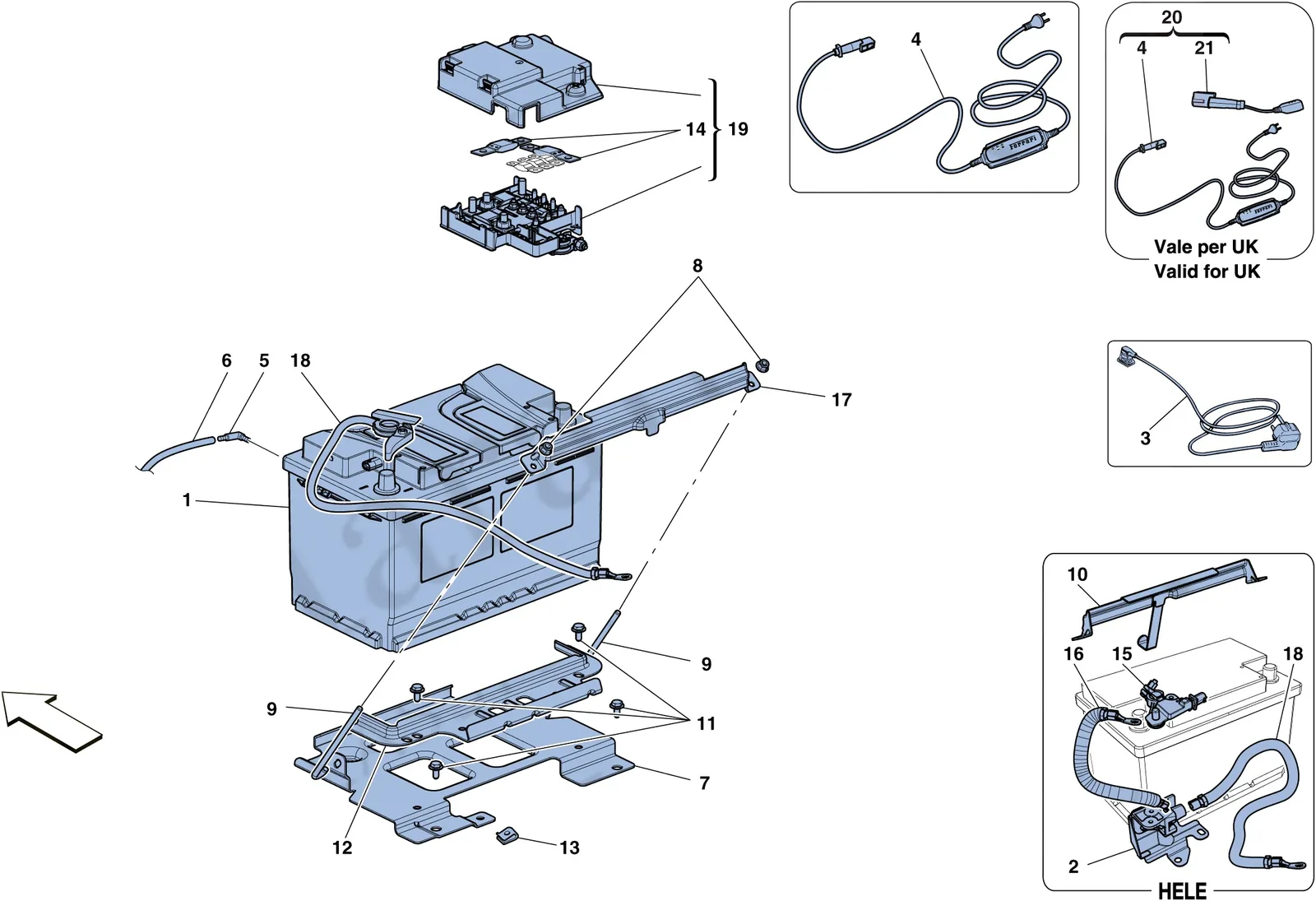

Ferrari 458 Speciale Aperta (Convertible) Battery exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
1312188Ferrari Battery 70AH - L3 VRLA 760A - 312188$765.52Available, ships in 3-6 days
2272083Ferrari S&S Negative Pole Complete LHD - 272083$194.48Special order, ships in 7-14 days
2275963Ferrari S&S Negative Pole Complete RHD - 275963$215.38Special order, ships in 7-14 days
2314517Ferrari S&S Negative Pole Complete RHD - 314517$137.04Special order, ships in 7-14 days
3258698Ferrari Power Cable LHD - 258698$93.00Special order, ships in 7-14 days
3263383Ferrari Power Cable RHD - 263383$190.90Special order, ships in 7-14 days
470002821Ferrari Battery Trickle Charger Kit - 70002821$587.40In stock
470002820Ferrari Battery Charger Kit - 70002820$461.83Available, ships in 3-6 days
470002822Ferrari Battery Charger Kit - 70002822$598.33Available, ships in 3-6 days
470001702Ferrari Battery Charger Kit - 70001702SupersededOrder 70002822 instead
470001701Ferrari Battery Charger Kit - 70001701SupersededOrder 70002821 instead
4260122Ferrari Battery Charger Kit - 260122Price on requestContact us for price and availability
5199631Ferrari Union - 199631$0.82Available, ships in 3-6 days
6262706Ferrari Battery Breather Pipe - 262706$10.83Special order, ships in 7-14 days
785225200Ferrari Battery Bracket Complete - 85225200$183.56Special order, ships in 7-14 days
785241800Ferrari Battery Bracket Complete - 85241800$660.87Special order, ships in 7-14 days
814058419Ferrari Flanged Nut - 14058419$1.61Special order, ships in 7-14 days
985235500Ferrari Battery Fastener Tie-Rod - 85235500$31.99Special order, ships in 7-14 days
1085280000Ferrari Bracket - 85280000$135.39Special order, ships in 7-14 days
1111625624Ferrari/Maserati Screw - 11625624$1.50In stock
1282514100Ferrari Retainer Bracket - 82514100$59.07Special order, ships in 7-14 days
1287208500Ferrari Retainer Bracket - 87208500$660.87Special order, ships in 7-14 days
1362766300Ferrari Spire Clip M6 - 62766300$1.36Available, ships in 3-6 days
14278366Ferrari Cal 5 Fuse 500A - 278366$21.95In stock
15274661Ferrari Battery Sensor - 274661$240.73Special order, ships in 7-14 days
16273184Ferrari Ground Cables From Sensor To Pole - 273184$73.85Special order, ships in 7-14 days
1785225800Ferrari Bracket - 85225800$95.43Special order, ships in 7-14 days
18300473Ferrari Battery Ground Cables Complete LHD - 300473$393.93Special order, ships in 7-14 days
18300981Ferrari Battery Ground Cables Complete LHD - 300981$210.49Special order, ships in 7-14 days
18303356Ferrari Battery Ground Cables Complete - 303356$269.23Special order, ships in 7-14 days
18303357Ferrari Battery Ground Cables Complete - 303357$151.74Special order, ships in 7-14 days
19291683Ferrari Battery ECU Complete LHD - 291683$203.15Special order, ships in 7-14 days
19301911Ferrari Battery Ecu Complete - 301911$342.66Special order, ships in 7-14 days
2070001796Ferrari Battery Charger Kit - 70001796SupersededOrder 70003485 instead
2070003485Ferrari Battery Charger Kit - 70003485$788.71Available, ships in 3-6 days
2195998029Ferrari Adaptor Tek - 95998029$36.68Available, ships in 3-6 days
214466Ferrari Battery 70AH - L3 VRLA 760A - 214466SupersededOrder 312188 instead
168852Ferrari Battery 70AH 12 V Type VR 760 - 168852SupersededOrder 312188 instead
178682Ferrari Battery Charger Kit - 178682SupersededOrder 70002820 instead
178683Ferrari Battery Charger Kit - 178683SupersededOrder 70002821 instead
231503Ferrari Battery Charger Kit - 231503SupersededOrder 70002820 instead
231504Ferrari Battery Charger Kit - 231504SupersededOrder 70002821 instead
231505Ferrari Battery Charger Kit - 231505Price on requestContact us for price and availability
231506Ferrari Battery Charger Kit - 231506SupersededOrder 70003485 instead
236798Ferrari Battery Charger Kit - 236798SupersededOrder 70002822 instead
260120Ferrari Battery Charger Kit - 260120SupersededOrder 70002820 instead
260121Ferrari Battery Charger Kit - 260121SupersededOrder 70002821 instead
260123Ferrari Battery Charger Kit - 260123SupersededOrder 70003485 instead
260124Ferrari Battery Charger Kit - 260124SupersededOrder 70002822 instead
70001700Ferrari Battery Charger Kit - 70001700SupersededOrder 70002820 instead
277359Ferrari Battery ECU - 277359SupersededOrder 291683 instead
291682Ferrari Battery ECU - 291682SupersededOrder 291683 instead
84398100Ferrari Retainer Bracket - 84398100SupersededOrder 82514100 instead

All 458 Speciale Aperta (Convertible) diagrams
