Ferrari 458 Speciale Aperta (Convertible) — Evaporator Unit (diagram 046)

Exploded view of the evaporator unit on the Ferrari 458 Speciale Aperta (Convertible), with 42 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

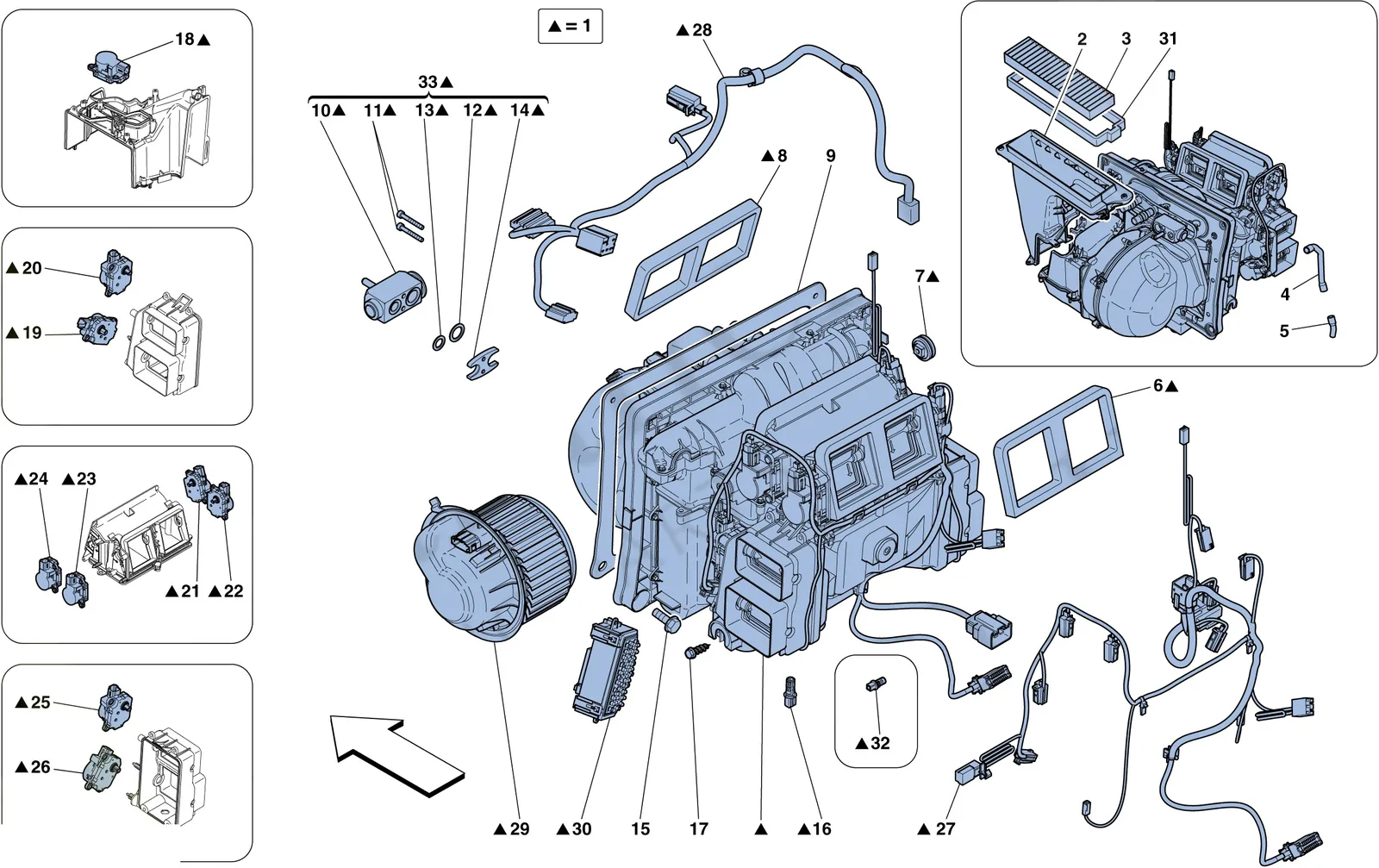

Ferrari 458 Speciale Aperta (Convertible) Evaporator Unit exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
183856800Ferrari Evaporator Complete - 83856800$6,690.55Special order, ships in 7-14 days
283594700Ferrari Mobile Duct LHD - 83594700$174.80Special order, ships in 7-14 days
284085600Ferrari Mobile Duct RHD - 84085600$295.43Special order, ships in 7-14 days
382295100Ferrari 458/488/F8 Cabin Pollen Filter - 82295100$53.90In stock
483244100Ferrari Upper Drain Pipe LHD - 83244100$44.29Special order, ships in 7-14 days
483953500Ferrari Upper Drain Pipe RHD - 83953500$76.30Special order, ships in 7-14 days
583304600Ferrari Lower Drain Pipe D. 10-15X 325 - 83304600$44.29Special order, ships in 7-14 days
682046800Ferrari Front Sink - 82046800$344.21Special order, ships in 7-14 days
768389800Ferrari Rubber Pad - 68389800$12.52Special order, ships in 7-14 days
882046600Ferrari Sink For Defrost Ducting - 82046600$344.21Special order, ships in 7-14 days
983982800Ferrari Gasket - 83982800$56.89Available, ships in 3-6 days
1082049300Ferrari Txv Block - 82049300SupersededOrder 82073600 instead
1182049500Ferrari Screw - 82049500Price on requestContact us for price and availability
1282049100Ferrari O-Ring - 82049100SupersededOrder 82073600 instead
1382049200Ferrari O-Ring - 82049200SupersededOrder 82073600 instead
1482049400Ferrari Plate - 82049400Price on requestContact us for price and availability
1516287127Ferrari Screw 8x20 - 16287127$0.92Special order, ships in 7-14 days
1668390100Ferrari Air Sensor - 68390100$21.60Available, ships in 3-6 days
1762771900Ferrari Screw D. 4.2 x 16 TBIC - 62771900$0.54Available, ships in 3-6 days
18264869Ferrari Lin Bus Recirculation Actuator - 264869$326.35Special order, ships in 7-14 days
1982047300Ferrari Actuator - 82047300$305.96Special order, ships in 7-14 days
2082047400Ferrari RH Lin Bus Lateral Actuator - 82047400$304.58Special order, ships in 7-14 days
2182047500Ferrari Actuator - 82047500$304.58Special order, ships in 7-14 days
2282047600Ferrari RH Lin Bus Fan Actuator - 82047600$304.58Special order, ships in 7-14 days
2382047700Ferrari Actuator - 82047700$326.35Special order, ships in 7-14 days
2482047900Ferrari Actuator - 82047900$304.58Special order, ships in 7-14 days
2582048100Ferrari Actuator - 82048100$304.58Special order, ships in 7-14 days
2682048200Ferrari Actuator - 82048200$304.58Special order, ships in 7-14 days
27280369Ferrari AC Wiring Harness - 280369$1,542.07Special order, ships in 7-14 days
28264879Ferrari AC Wiring Harness - 264879$517.04Special order, ships in 7-14 days
29264880Ferrari Fan - 264880$1,304.98Special order, ships in 7-14 days
30264881Ferrari Speed Regulator - 264881$664.78Special order, ships in 7-14 days
3183081700Ferrari Dynamic Intake Filler Foam - 83081700$27.47Available, ships in 3-6 days
3283749200Ferrari Evaporator Sensor - 83749200$349.68Special order, ships in 7-14 days
3387404800Ferrari TXV Service Kit - 87404800$783.26Special order, ships in 7-14 days
82073600Ferrari AC Expansion Valve - 82073600$368.80In stock
264882Ferrari Dynamic Intake Filler Foam - 264882SupersededOrder 83081700 instead
82797700Ferrari Evaporator Complete - 82797700SupersededOrder 83856800 instead
83346500Ferrari Evaporator Complete - 83346500SupersededOrder 83856800 instead
82761800Ferrari Mobile Duct LHD - 82761800SupersededOrder 83594700 instead
82969400Ferrari Mobile Duct RHD - 82969400SupersededOrder 84085600 instead
82596600Ferrari Upper Drain Pipe - 82596600SupersededOrder 83244100 instead

All 458 Speciale Aperta (Convertible) diagrams
