Ferrari 458 Speciale Aperta (Convertible) — Bodyshell - External Trim (diagram 100)

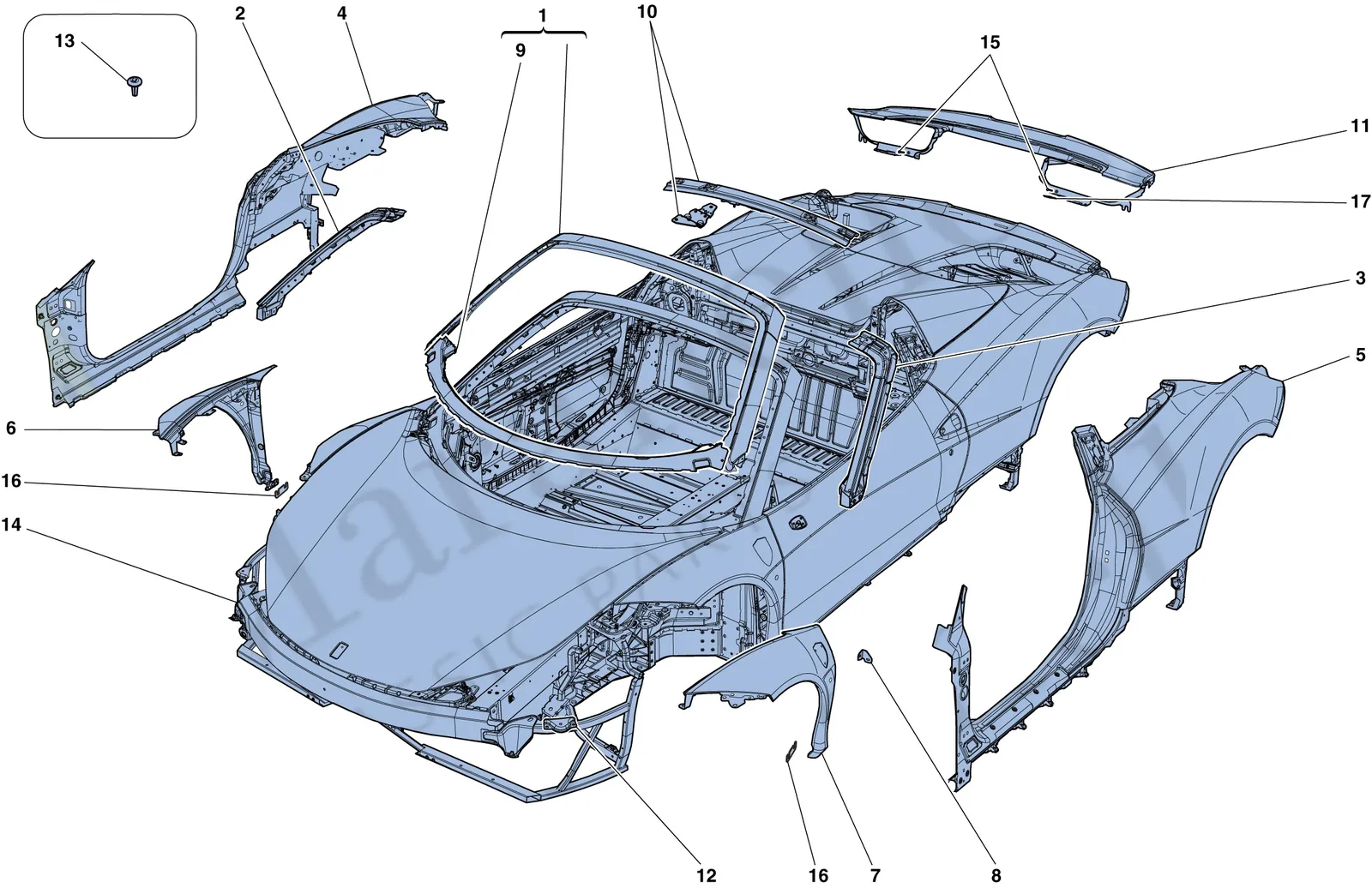

Exploded view of the bodyshell - external trim on the Ferrari 458 Speciale Aperta (Convertible), with 34 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
/100.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 82164111 | Ferrari Windscreen Surround - 82164111 | $4,308.06 | Special order, ships in 7-14 days |
| 2 | 264618 | Ferrari RH Upper Pillar - 264618 | Superseded | Order 985264618 instead |
| 3 | 264617 | Ferrari LH Upper Pillar - 264617 | Superseded | Order 985264617 instead |
| 4 | 84325811 | Ferrari RH Flank - 84325811 | $13,715.79 | Contact us to order |
| 4 | 82149511 | Ferrari RH Flank - 82149511 | $16,362.77 | Contact us to order |
| 5 | 84326311 | Ferrari LH Flank - 84326311 | $13,672.30 | Contact us to order |
| 5 | 82155511 | Ferrari LH Flank - 82155511 | $16,362.77 | Contact us to order |
| 6 | 85288711 | Ferrari RH Front Fender - 85288711 | $3,427.38 | Contact us to order |
| 6 | 85289111 | Ferrari RH Front Fender - 85289111 | $4,198.23 | Contact us to order |
| 7 | 85288611 | Ferrari LH Front Fender - 85288611 | $3,427.38 | Contact us to order |
| 7 | 85289011 | Ferrari LH Front Fender - 85289011 | $4,198.23 | Contact us to order |
| 8 | 81542900 | Ferrari RH Upper Bracket - 81542900 | $179.10 | Available, ships in 3-6 days |
| 8 | 81543000 | Ferrari LH Upper Bracket - 81543000 | $179.10 | Available, ships in 3-6 days |
| 9 | 83740411 | Ferrari Lower Roof Crossmember - 83740411 | $758.79 | Special order, ships in 7-14 days |
| 10 | 82164800 | Ferrari Upper Windscreen Crossmember - 82164800 | Superseded | Order 82164811 instead |
| 11 | 86373011 | Ferrari Rear Spoiler - 86373011 | $7,264.04 | Special order, ships in 7-14 days |
| 12 | 82534100 | Ferrari LH Head Lamp Fastener Bracket - 82534100 | $149.29 | Special order, ships in 7-14 days |
| 12 | 82534000 | Ferrari RH Head Lamp Fastener Bracket - 82534000 | $149.29 | Special order, ships in 7-14 days |
| 13 | 81126900 | Ferrari Rivet D.4.8X7.5 - 81126900 | $0.86 | Available, ships in 3-6 days |
| 13 | 82398700 | Ferrari Rivet D. 4.8 X 9 - 82398700 | $0.96 | Available, ships in 3-6 days |
| 13 | 81126700 | Ferrari Rivet D.3.9X7 - 81126700 | $0.65 | Available, ships in 3-6 days |
| 13 | 81126600 | Ferrari Rivet D.3.9X7 - 81126600 | $0.71 | Available, ships in 3-6 days |
| 13 | 81126500 | Ferrari Rivet D.3.9X5.5 - 81126500 | $0.59 | Available, ships in 3-6 days |
| 13 | 81126800 | Ferrari Rivet D.3.9X8 - 81126800 | $0.79 | Available, ships in 3-6 days |
| 15 | 16286127 | Ferrari Screw 6x20 - 16286127 | $0.82 | Available, ships in 3-6 days |
| 16 | 82675400 | Ferrari Front Fender Spacer Kit - 82675400 | $76.13 | Special order, ships in 7-14 days |
| 17 | 67418100 | Ferrari Shim - 67418100 | $2.59 | Special order, ships in 7-14 days |
| 82155500 | Ferrari LH Flank - 82155500 | Superseded | Order 82155511 instead | |
| 84326300 | Ferrari LH Flank - 84326300 | Superseded | Order 84326311 instead | |
| 985264617 | Ferrari LH Upper Pillar - 985264617 | $2,703.78 | Special order, ships in 7-14 days | |
| 82149500 | Ferrari RH Flank - 82149500 | Superseded | Order 82149511 instead | |
| 84325800 | Ferrari RH Flank - 84325800 | Superseded | Order 84325811 instead | |
| 985264618 | Ferrari RH Upper Pillar - 985264618 | $2,703.78 | Special order, ships in 7-14 days | |
| 82164811 | Ferrari Upper Windscreen Crossmember - 82164811 | $1,101.47 | Special order, ships in 7-14 days |
