Ferrari 458 Speciale Aperta (Convertible) — Chassis - Structure, Rear Elements And Panels (diagram 104)

Exploded view of the chassis - structure, rear elements and panels on the Ferrari 458 Speciale Aperta (Convertible), with 67 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

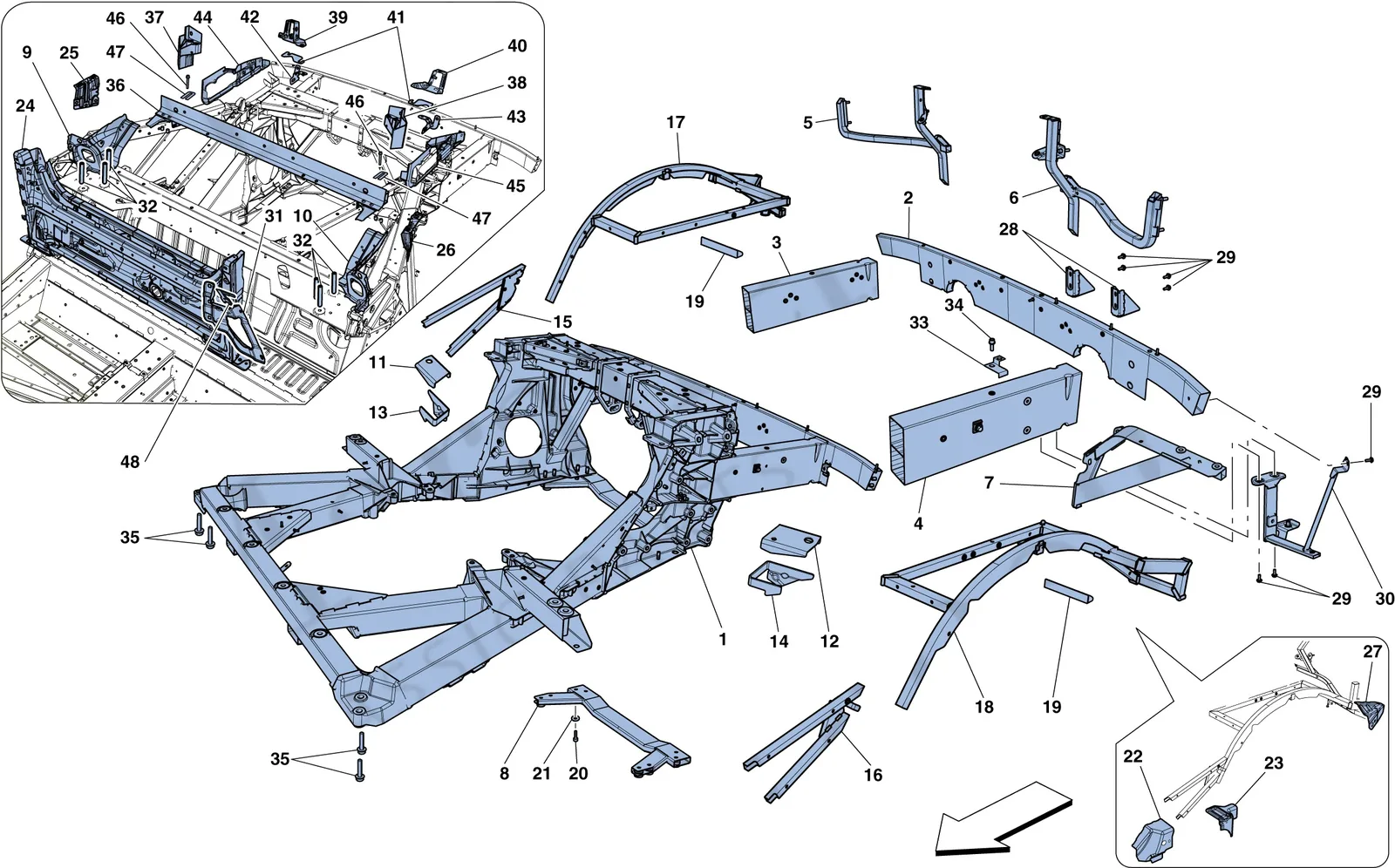

Ferrari 458 Speciale Aperta (Convertible) Chassis - Structure, Rear Elements And Panels exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
1985316134Ferrari Rear Subframe - 985316134$26,751.28Contact us to order
2297876Ferrari Rear Bumper Fastening Crossmember - 297876$2,788.11Special order, ships in 7-14 days
3295233Ferrari RH Rear Strut - 295233$856.69Special order, ships in 7-14 days
4295231Ferrari LH Rear Strut - 295231$856.69Special order, ships in 7-14 days
584630500Ferrari RH Rear Radiator Trellis - 84630500$1,762.38Special order, ships in 7-14 days
684630400Ferrari LH Rear Radiator Trellis - 84630400$1,762.38Special order, ships in 7-14 days
785536100Ferrari LH Flank Mounting Bracket - 85536100$881.17Special order, ships in 7-14 days
785536000Ferrari RH Flank Mounting Bracket - 85536000$881.17Special order, ships in 7-14 days
8316202Ferrari Lower Gearbox Mounting Crossmember - 316202$1,934.88Special order, ships in 7-14 days
983229400Ferrari RH Front Roof Tub Bracket - 83229400SupersededOrder 83229411 instead
1083229500Ferrari LH Front Roof Tub Bracket - 83229500$159.08Special order, ships in 7-14 days
1182572600Ferrari RH Upper Rear Bracket - 82572600$19.30Special order, ships in 7-14 days
1282572700Ferrari LH Upper Rear Bracket - 82572700$19.30Special order, ships in 7-14 days
13260696Ferrari RH Lower Rear Bracket - 260696$215.38Special order, ships in 7-14 days
14260695Ferrari LH Lower Rear Bracket - 260695$269.23Special order, ships in 7-14 days
1584042200Ferrari RH Front Frame - 84042200$975.50Available, ships in 3-6 days
1684042600Ferrari LH Front Frame - 84042600$975.50Available, ships in 3-6 days
1785537300Ferrari RH Rear Flank Trellis - 85537300$709.82Special order, ships in 7-14 days
1885537200Ferrari LH Rear Flank Trellis - 85537200$709.82Special order, ships in 7-14 days
1981952000Ferrari Angular Brace For Flank Mounting Bracket - 81952000$15.39Special order, ships in 7-14 days
20101632Ferrari Half Shaft Bolt - 101632$14.50In stock
2014308234Ferrari Screw - 14308234SupersededOrder 101632 instead
20101632/AFerrari Bolt - 101632/A$96.58Available, ships in 3-6 days
2112626024Ferrari Washer - 12626024$0.50Special order, ships in 7-14 days
2281288800Ferrari LH Lower Front Bracket - 81288800$367.14Special order, ships in 7-14 days
2281287800Ferrari RH Lower Front Bracket - 81287800$367.14Special order, ships in 7-14 days
2381518200Ferrari LH Lower Rear Bracket - 81518200$95.43Special order, ships in 7-14 days
2381518100Ferrari RH Lower Rear Bracket - 81518100$95.43Special order, ships in 7-14 days
2482140800Ferrari Tub For Powered Rear Screen - 82140800$2,722.83Special order, ships in 7-14 days
2583499100Ferrari RH Flank Lateral Shield Mounting Bracket - 83499100$63.61Special order, ships in 7-14 days
2683499300Ferrari LH Flank Lateral Shield Mounting Bracket - 83499300$39.14Special order, ships in 7-14 days
2781582700Ferrari LH Rear Flank Bracket - 81582700$293.71Special order, ships in 7-14 days
2781582600Ferrari RH Rear Flank Bracket - 81582600$293.71Special order, ships in 7-14 days
2885701900Ferrari Central Diffuser Fastener Bracket - 85701900$562.96Available, ships in 3-6 days
2911625824Ferrari Screw 6x18 - 11625824$0.71Available, ships in 3-6 days
3085642200Ferrari LH Lateral Bumper Mounting Frame - 85642200$832.22Special order, ships in 7-14 days
3085641900Ferrari RH Lateral Bumper Mounting Frame - 85641900$832.22Special order, ships in 7-14 days
3183959000Ferrari RH Pillar Connector Reinforcement - 83959000$78.76Special order, ships in 7-14 days
3183959100Ferrari LH Pillar Connector Reinforcement - 83959100$78.76Special order, ships in 7-14 days
3213791321Ferrari Screw - 13791321$1.92Special order, ships in 7-14 days
33302293Ferrari Pipe Mounting Bracket - 302293$46.48Special order, ships in 7-14 days
34231617Ferrari Screw M6 x 18 TCEI - 231617SupersededOrder 14433124 instead
35239965Ferrari Screw M12 x 1.75 x 6 - 239965$83.15Special order, ships in 7-14 days
3682149000Ferrari Rear Roof Tub Crossmember - 82149000$807.74Special order, ships in 7-14 days
3783739000Ferrari RH Vertical Extruded Element - 83739000SupersededOrder 83739011 instead
3883739100Ferrari LH Vertical Extruded Element - 83739100$367.14Special order, ships in 7-14 days
3983330300Ferrari RH Lid Buffer Bracket - 83330300$367.14Special order, ships in 7-14 days
4083458500Ferrari LH Lid Buffer Bracket - 83458500$367.14Special order, ships in 7-14 days
4183458600Ferrari Spacer For Buffer Bracket - 83458600$9.10Special order, ships in 7-14 days
4284249300Ferrari RH Buffer Connector Bracket - 84249300$26.89Special order, ships in 7-14 days
4384249500Ferrari LH Buffer Connector Bracket - 84249500$26.89Special order, ships in 7-14 days
4483189900Ferrari RH Rear Mounting Bracket - 83189900$660.87Special order, ships in 7-14 days
4583190200Ferrari LH Rear Mounting Bracket - 83190200$660.87Special order, ships in 7-14 days
46231630Ferrari Screw 8x65 - 231630$1.88Available, ships in 3-6 days
4785584100Ferrari Shim - 85584100$4.56Special order, ships in 7-14 days
4884446700Ferrari Shim 0.5mm - 84446700$27.06Special order, ships in 7-14 days
4884615100Ferrari Shim 1.0mm - 84615100$27.06Special order, ships in 7-14 days
4884615400Ferrari Shim 1.5mm - 84615400Price on requestContact us for price and availability
103432Ferrari Bolt - 103432SupersededOrder 101632 instead
82043000Ferrari LH Front Frame - 82043000$176.22Special order, ships in 7-14 days
83229511Ferrari LH Front Roof Tub Bracket - 83229511$344.69Special order, ships in 7-14 days
82042900Ferrari RH Front Frame - 82042900$176.22Special order, ships in 7-14 days
83229411Ferrari RH Front Roof Tub Bracket - 83229411$344.69Special order, ships in 7-14 days
83739011Ferrari RH Vertical Extruded Element - 83739011$344.69Special order, ships in 7-14 days
14433121Ferrari Screw - 14433121SupersededOrder 231617 instead
265036Ferrari Screw - 265036SupersededOrder 101632 instead
82140811Ferrari Tub For Powered Rear Screen - 82140811$7,194.47Special order, ships in 7-14 days

All 458 Speciale Aperta (Convertible) diagrams
