Ferrari 458 Speciale Aperta (Convertible) — Insulation (diagram 106)

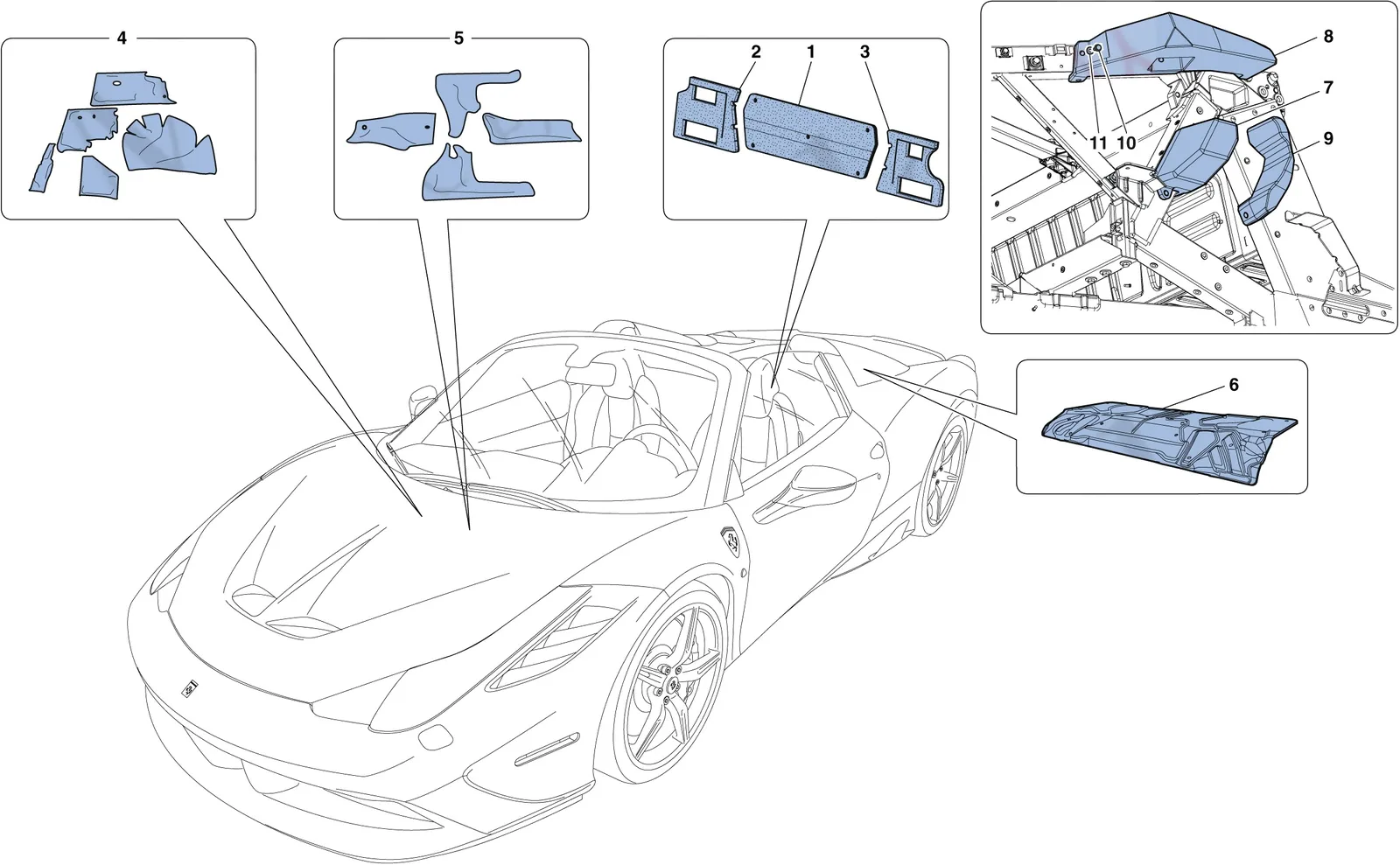

Exploded view of the insulation on the Ferrari 458 Speciale Aperta (Convertible), with 13 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
/106.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 82667800 | Ferrari Firewall Hatch Insulation - 82667800 | $110.13 | Special order, ships in 7-14 days |
| 2 | 82667600 | Ferrari RH Rear Firewall Insulation - 82667600 | $66.07 | Special order, ships in 7-14 days |
| 3 | 82854700 | Ferrari LH Rear Firewall Insulation - 82854700 | $66.07 | Special order, ships in 7-14 days |
| 4 | 82923500 | Ferrari HVAC Unit Insulation Kit - 82923500 | $182.18 | Special order, ships in 7-14 days |
| 5 | 82923400 | Ferrari Air Con Mobile Duct Insulation Kit LHD - 82923400 | $174.80 | Special order, ships in 7-14 days |
| 5 | 83030200 | Ferrari Air Con Mobile Duct Insulation Kit RHD - 83030200 | $270.83 | Special order, ships in 7-14 days |
| 6 | 278507 | Ferrari Roof Tub Heat Shield - 278507 | $562.96 | Special order, ships in 7-14 days |
| 7 | 84907600 | Ferrari Foam Element 1 For Crash Box - 84907600 | $293.71 | Special order, ships in 7-14 days |
| 8 | 86031500 | Ferrari Protective Foam - 86031500 | $587.44 | Special order, ships in 7-14 days |
| 9 | 84907800 | Ferrari Foam Element 3 For Crash Box - 84907800 | $127.27 | Special order, ships in 7-14 days |
| 10 | 10903021 | Ferrari Bolt - 10903021 | Price on request | Contact us for price and availability |
| 11 | 12648978 | Ferrari Washer - 12648978 | $1.04 | Available, ships in 3-6 days |
| 83030300 | Ferrari Insulation Kit For HVAC Unit - 83030300 | $205.58 | Special order, ships in 7-14 days |
