Ferrari 458 Speciale Aperta (Convertible) — Roof (diagram 110)

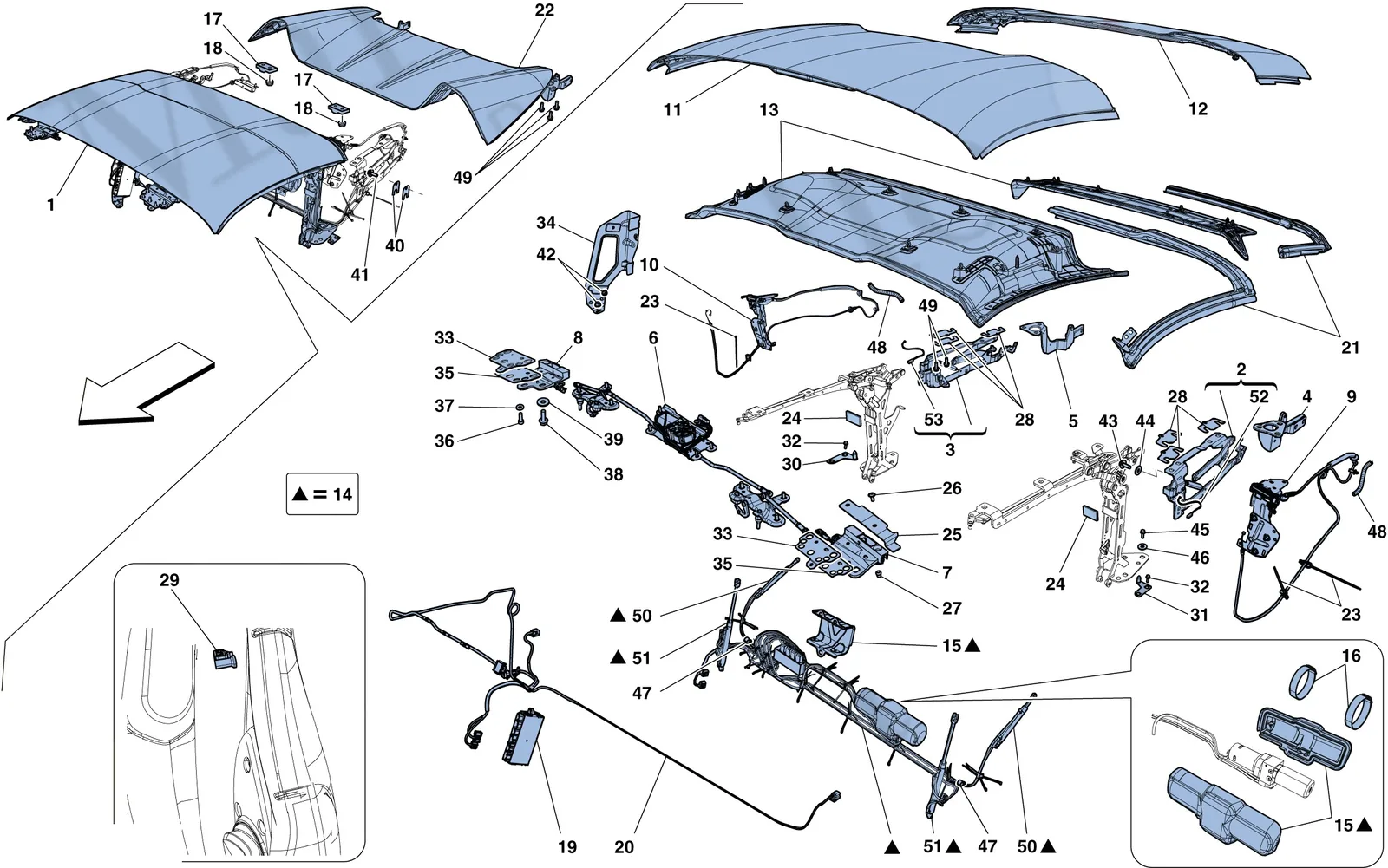

Exploded view of the roof on the Ferrari 458 Speciale Aperta (Convertible), with 69 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

Ferrari 458 Speciale Aperta (Convertible) Roof exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
283977600Ferrari LH Cover Lifter Mechanism Complete - 83977600$1,600.44Special order, ships in 7-14 days
383977700Ferrari RH Cover Lifter Mechanism Complete - 83977700$1,600.44Special order, ships in 7-14 days
483979300Ferrari LH Hinge Complete - 83979300$418.56Special order, ships in 7-14 days
583979200Ferrari RH Hinge Complete - 83979200$418.56Special order, ships in 7-14 days
683977800Ferrari Latch System Complete - 83977800$3,788.88Special order, ships in 7-14 days
783977900Ferrari LH Striker Complete - 83977900$549.71Available, ships in 3-6 days
883978000Ferrari RH Striker Complete - 83978000$663.86Special order, ships in 7-14 days
983978300Ferrari LH Flap Inner Shell - 83978300$1,231.11Special order, ships in 7-14 days
1083978400Ferrari RH Flap Inner Shell - 83978400$1,231.11Special order, ships in 7-14 days
1183977000Ferrari Front Roof Assembly - 83977000$11,879.81Contact us to order
1283977300Ferrari Rear Roof Assembly - 83977300$10,451.71Contact us to order
1384726100Ferrari Front And Rear Headliner Kit - 84726100$4,924.50Special order, ships in 7-14 days
1484603300Ferrari Hydraulic System Kit Complete - 84603300$16,039.87Special order, ships in 7-14 days
1584697900Ferrari Hydraulic System Soundproofing Kit - 84697900$664.78Special order, ships in 7-14 days
1684603200Ferrari Hydraulic System Fastener Kit - 84603200$115.54Special order, ships in 7-14 days
1783978100Ferrari LH Bumper Complete - 83978100$13.49Special order, ships in 7-14 days
1813046112Ferrari Nut - 13046112$0.46Available, ships in 3-6 days
1983979100Ferrari Roof ECU - 83979100$4,429.29Special order, ships in 7-14 days
2083979000Ferrari Wire Harnesses - 83979000$714.03Special order, ships in 7-14 days
2184726500Ferrari Front And Rear Seal Kit - 84726500$3,876.28Special order, ships in 7-14 days
2283979411Ferrari Tonneau Cover - 83979411$6,539.03Special order, ships in 7-14 days
23145854Ferrari Cable tie 200mm - 145854$0.57Available, ships in 3-6 days
2484706800Ferrari Adhesive Foam Rubber - 84706800$1.48Special order, ships in 7-14 days
2584643500Ferrari RH Bracket - 84643500$21.14Special order, ships in 7-14 days
2584643400Ferrari LH Bracket - 84643400$21.14Special order, ships in 7-14 days
2685692200Ferrari SCREW M5 x 12 - 85692200$0.65Available, ships in 3-6 days
2665366700Ferrari Screw 5x12 TBEI - 65366700$1.74Available, ships in 3-6 days
27168698Ferrari Nut M5 x 11 - 168698$3.68Available, ships in 3-6 days
2884807000Ferrari Spacer 0.5mm - 84807000$8.82Available, ships in 3-6 days
2884807100Ferrari Spacer 1.0mm - 84807100$8.82Available, ships in 3-6 days
2884842000Ferrari Spacer 3.0mm - 84842000$10.81Available, ships in 3-6 days
29215411Ferrari Pipe Clip - 215411$3.24Available, ships in 3-6 days
3084256000Ferrari RH Rear Centring Plate - 84256000$86.15Special order, ships in 7-14 days
3184256100Ferrari LH Rear Centring Plate - 84256100Price on requestContact us for price and availability
3211568124Ferrari Screw M6 x 20 TCE - 11568124$1.78Available, ships in 3-6 days
3386496000Ferrari RH Windscreen Striker Plate - 86496000$100.93Special order, ships in 7-14 days
3386495900Ferrari LH Windscreen Striker Plate - 86495900$100.93Special order, ships in 7-14 days
3486496100Ferrari Ecu Mounting Bracket - 86496100$151.74Special order, ships in 7-14 days
3584503800Ferrari Shim Kit For Adjusting Roof Relative To Windscreen - 84503800$78.66Special order, ships in 7-14 days
3614305334Ferrari Screw M6 x 20 - 14305334$0.38Available, ships in 3-6 days
3712646624Ferrari Washer 6.15-15x1.5 - 12646624$0.40Available, ships in 3-6 days
3816287224Ferrari Screw M8x25 - 16287224$0.82Available, ships in 3-6 days
3811617624Ferrari Screw - 11617624SupersededOrder 16287224 instead
39219344Ferrari Washer D8.5x24x - 219344SupersededOrder 124338 instead
4084508500Ferrari Tub Lifting Mechanism Fastener Shim 0.5mm - 84508500$9.16Special order, ships in 7-14 days
4084508600Ferrari Tub Lifting Mechanism Fastener Shim 1.0mm - 84508600$9.16Special order, ships in 7-14 days
4084508700Ferrari Tub Lifting Mechanism Fastener Shim 1.5mm - 84508700$13.74Special order, ships in 7-14 days
4085422400Ferrari Tub Lifting Mechanism Fastener Shim 4.0mm - 85422400$6.31Special order, ships in 7-14 days
4182271400Ferrari Screw with Washer M8 x 25 TE - 82271400$2.59Available, ships in 3-6 days
4214040514Ferrari Flanged Nut - 14040514SupersededOrder 13046011 instead
4516286127Ferrari Screw 6x20 - 16286127$0.82Available, ships in 3-6 days
4612640678Ferrari Washer 6.15x25x2 - 12640678$3.47Available, ships in 3-6 days
47244223Ferrari Clip - 244223$8.93Special order, ships in 7-14 days
4884975900Ferrari Bowden Cable Protector Spira - 84975900$34.25Available, ships in 3-6 days
5070003528Ferrari Cylinder Cover Kit - 70003528$3,597.04Special order, ships in 7-14 days
5170003529Ferrari Roof Piston Kit - 70003529$4,004.99Special order, ships in 7-14 days
5288035900Ferrari Cable Harness With LH Cover Lift Sensor Complete - 88035900$566.30Special order, ships in 7-14 days
5388036000Ferrari Cable Harness With RH Cover Lift Sensor Complete - 88036000$664.78Special order, ships in 7-14 days
13046011Ferrari Flanged Nut - 13046011$0.73Available, ships in 3-6 days
87551100Ferrari LH Flap Mechanism - 87551100SupersededOrder 83978300 instead
14054042Ferrari Nut - 14054042SupersededOrder 168698 instead
14054048Ferrari Nut - 14054048SupersededOrder 168698 instead
87646500Ferrari RH Flap Mechanism - 87646500SupersededOrder 83978400 instead
86719000Ferrari Roof ECU - 86719000$4,429.29Special order, ships in 7-14 days
80415900Ferrari Screw - 80415900$32.60Available, ships in 3-6 days
12640606Ferrari Washer - 12640606SupersededOrder 12640678 instead
12640608Ferrari Washer - 12640608SupersededOrder 12640678 instead
12640677Ferrari Washer - 12640677SupersededOrder 12640678 instead
124338Ferrari Washer D. 8 - 25 x 3 - 124338$14.55Available, ships in 3-6 days
