Ferrari 458 Speciale Aperta (Convertible) — Front Lid And Opening Mechanism (diagram 111)

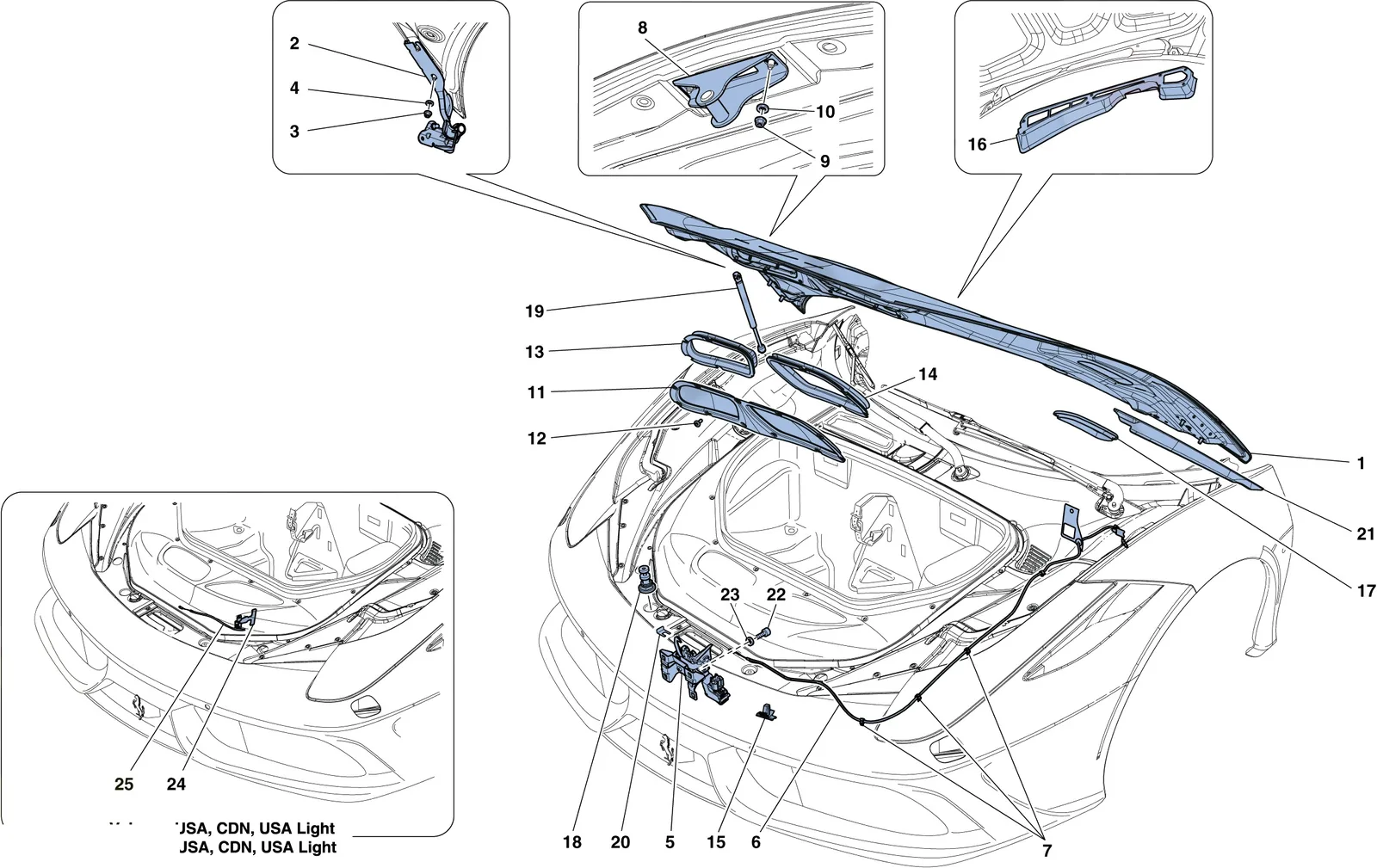

Exploded view of the front lid and opening mechanism on the Ferrari 458 Speciale Aperta (Convertible), with 38 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
/111.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 85321711 | Ferrari Front Lid - 85321711 | $9,965.13 | Contact us to order |
| 1 | 85743711 | Ferrari Front Lid - 85743711 | $10,481.12 | Contact us to order |
| 2 | 84633000 | Ferrari RH Hinge Complete - 84633000 | $216.66 | Special order, ships in 7-14 days |
| 2 | 84632900 | Ferrari LH Hinge Complete - 84632900 | $216.66 | Special order, ships in 7-14 days |
| 3 | 13832211 | Ferrari Nut - 13832211 | $0.52 | Available, ships in 3-6 days |
| 4 | 12647021 | Ferrari Washer - 12647021 | $0.57 | Special order, ships in 7-14 days |
| 5 | 83679100 | Ferrari Lid Lock Complete - 83679100 | $787.90 | Special order, ships in 7-14 days |
| 5 | 83678900 | Ferrari Bonnet Lock Complete - 83678900 | $935.64 | Special order, ships in 7-14 days |
| 6 | 81580700 | Ferrari Front Lid Release Bowden Cable - 81580700 | $110.13 | Special order, ships in 7-14 days |
| 7 | 14569480 | Ferrari Clip 10x3.8 Black - 14569480 | $0.54 | Available, ships in 3-6 days |
| 8 | 82139200 | Ferrari Striker Plate - 82139200 | $66.35 | Special order, ships in 7-14 days |
| 9 | 14054577 | Ferrari Domed Nut - 14054577 | $0.59 | Available, ships in 3-6 days |
| 10 | 12648178 | Ferrari Washer - 12648178 | $5.00 | Special order, ships in 7-14 days |
| 11 | 85322800 | Ferrari Lid Grille - 85322800 | $522.16 | Special order, ships in 7-14 days |
| 12 | 65752800 | Ferrari Screw M4 x 10 TBEI - 65752800 | $4.12 | Available, ships in 3-6 days |
| 13 | 85925700 | Ferrari RH Front Lid Grille Seal - 85925700 | $293.71 | Special order, ships in 7-14 days |
| 14 | 85925800 | Ferrari LH Front Lid Grille Seal - 85925800 | $203.15 | Special order, ships in 7-14 days |
| 15 | 204781 | Ferrari Clip - 204781 | $1.67 | Available, ships in 3-6 days |
| 16 | 83807100 | Ferrari Front Lid Air Duct Seal LHD - 83807100 | $211.73 | Special order, ships in 7-14 days |
| 16 | 83341000 | Ferrari Front Lid Air Duct Seal RHD - 83341000 | $270.83 | Available, ships in 3-6 days |
| 17 | 85998700 | Ferrari HVAC Gasket - 85998700 | $174.03 | Special order, ships in 7-14 days |
| 18 | 849815 | Ferrari Anti Vibration Damper - 849815 | $51.62 | Available, ships in 3-6 days |
| 18 | 82966000 | Ferrari Anti Vibration Damper - 82966000 | Superseded | Order 849815 instead |
| 19 | 82750900 | Ferrari 458 Front Lid Strut - 82750900 | $86.90 | In stock |
| 20 | 83007600 | Ferrari Shim For Front Lid Lock - 83007600 | $10.85 | Special order, ships in 7-14 days |
| 21 | 84037300 | Ferrari LH Cosmetic Cover - 84037300 | $36.69 | Special order, ships in 7-14 days |
| 21 | 84037600 | Ferrari RH Cover - 84037600 | $36.69 | Special order, ships in 7-14 days |
| 22 | 13027026 | Ferrari Screw M6 x 16 TCEI - 13027026 | $2.01 | Available, ships in 3-6 days |
| 23 | 11194674 | Ferrari Washer - 11194674 | $0.92 | Available, ships in 3-6 days |
| 24 | 67053000 | Ferrari Boot Safety Handle - 67053000 | $66.35 | Special order, ships in 7-14 days |
| 25 | 86247600 | Ferrari Child Safety Realease Bowden Cable - 86247600 | $227.62 | Special order, ships in 7-14 days |
| 12486580 | Ferrari Botton - 12486580 | Superseded | Order 204781 instead | |
| 175871 | Ferrari Clip - 175871 | Superseded | Order 204781 instead | |
| 248061 | Ferrari Clip - 248061 | $4.12 | Available, ships in 3-6 days | |
| 323365 | Ferrari Connector Fastener Clip - 323365 | Superseded | Order 204781 instead | |
| 81509300 | Ferrari Front Bonnet Lock - 81509300 | Superseded | Order 83679100 instead | |
| 83172400 | Ferrari Lid Lock Complete - 83172400 | Superseded | Order 83678900 instead | |
| 12647001 | Ferrari Washer - 12647001 | Superseded | Order 12647021 instead |
