Ferrari 458 Speciale Aperta (Convertible) — Screens, Windows And Seals (diagram 119)

Exploded view of the screens, windows and seals on the Ferrari 458 Speciale Aperta (Convertible), with 50 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

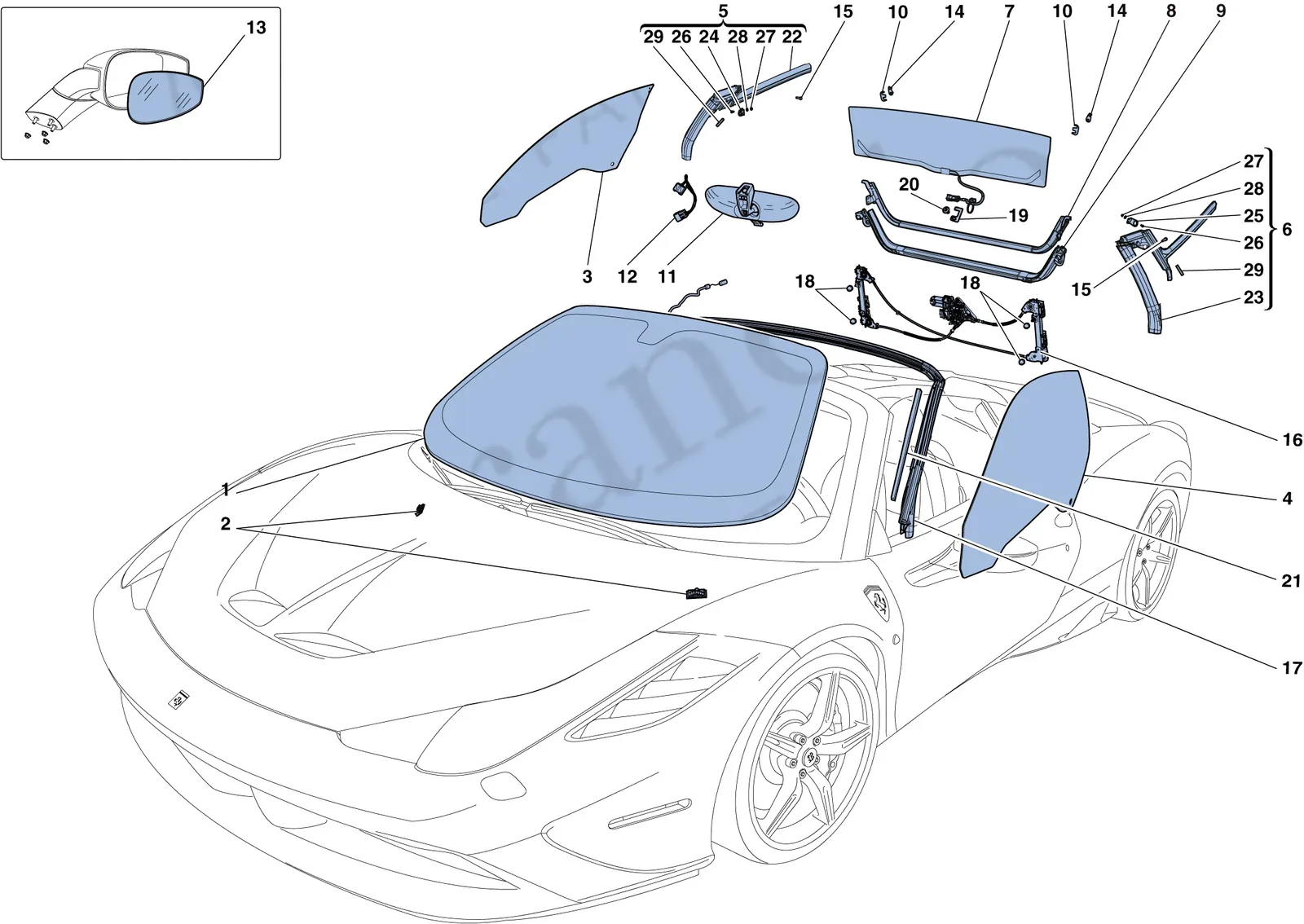

Ferrari 458 Speciale Aperta (Convertible) Screens, Windows And Seals exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
186314000Ferrari Windscreen - 86314000$6,902.45Contact us to order
186388300Ferrari Windscreen - 86388300$9,687.47Contact us to order
282234900Ferrari Spacer Block - 82234900$4.41Available, ships in 3-6 days
382996300Ferrari RH Door Window - 82996300$1,116.19Contact us to order
482996200Ferrari LH Door Window - 82996200$1,116.19Contact us to order
584163310Ferrari RH Door Perimeter Seal - 84163310Price on requestContact us for price and availability
684163210Ferrari LH Door Perimeter Seal - 84163210Price on requestContact us for price and availability
782202400Ferrari Rear Screen - 82202400$1,159.97Contact us to order
882201100Ferrari Internal Rear Screen Seal - 82201100$911.01Special order, ships in 7-14 days
982201200Ferrari External Rear Screen Seal - 82201200SupersededOrder 891744 instead
1085422500Ferrari Shim - 85422500$8.93Special order, ships in 7-14 days
1084413900Ferrari Shim - 84413900$5.44Special order, ships in 7-14 days
1182908500Ferrari Interior Rear View Mirror Complete - 82908500$245.25Available, ships in 3-6 days
1184475000Ferrari Interior Rear View Mirror Complete - 84475000$739.74Special order, ships in 7-14 days
1186042600Ferrari Interior Rear View Mirror Complete - 86042600$4,979.45Special order, ships in 7-14 days
1186134300Ferrari Interior Rear View Mirror Complete - 86134300$1,517.60Special order, ships in 7-14 days
1186143800Ferrari Interior Rear View Mirror Complete - 86143800$14,043.22Contact us to order
1260684944Ferrari Rain And Dusk Sensor ECU - 60684944$355.38Available, ships in 3-6 days
1382824400Ferrari RH External Rear Mirror Glass - 82824400$77.18Available, ships in 3-6 days
1382824500Ferrari LH External Rear Mirror Glass - 82824500$114.79Available, ships in 3-6 days
1383739800Ferrari RH External Rear Mirror Glass - 83739800$240.73Special order, ships in 7-14 days
1383094000Ferrari RH External Rear Mirror Glass - 83094000$240.73Special order, ships in 7-14 days
1383093800Ferrari LH External Rear Mirror Glass - 83093800$131.29Special order, ships in 7-14 days
1382910100Ferrari RH External Rear Mirror Glass - 82910100$1,436.00Special order, ships in 7-14 days
1383094100Ferrari RH External Rear Mirror Glass - 83094100$1,827.64Special order, ships in 7-14 days
1383739900Ferrari RH External Rear Mirror Glass - 83739900$1,370.72Special order, ships in 7-14 days
1382910200Ferrari LH External Rear Mirror Glass - 82910200$1,436.00Special order, ships in 7-14 days
1383093900Ferrari LH External Rear Mirror Glass - 83093900$1,436.00Special order, ships in 7-14 days
1484413000Ferrari Plate - 84413000$24.02Special order, ships in 7-14 days
1514304287Ferrari Screw 5x16 - 14304287$0.71Special order, ships in 7-14 days
1683072100Ferrari Rear Screen Lifter - 83072100$1,466.38Special order, ships in 7-14 days
1782200900Ferrari Windscreen Perimeter Seal - 82200900$1,352.72Available, ships in 3-6 days
1885148300Ferrari Cap - 85148300$5.04Special order, ships in 7-14 days
19156198Ferrari Clip - 156198SupersededOrder 155751 instead
19155751Ferrari Clip - 155751$8.49Available, ships in 3-6 days
2064460500Ferrari Screw M5 x 0.8 x 10 - 64460500$2.13Available, ships in 3-6 days
2184582900Ferrari Adhesive Pad For Windscreen - 84582900$7.40Special order, ships in 7-14 days
2282199500Ferrari RH Door Perimeter Seal - 82199500$892.05Special order, ships in 7-14 days
2382200000Ferrari LH Door Perimeter Seal - 82200000$892.05Special order, ships in 7-14 days
2484131500Ferrari Extension For Node B Insert RH Side - 84131500Price on requestContact us for price and availability
2584131400Ferrari Extension For Node B Insert LH Side - 84131400Price on requestContact us for price and availability
2610977524Ferrari Screw M5 x 10 - 10977524$0.27Available, ships in 3-6 days
2714059114Ferrari Nut M5 - 14059114$0.27Available, ships in 3-6 days
2810615874Ferrari Washer - 10615874$0.59Available, ships in 3-6 days
2984700800Ferrari Plug - 84700800$44.03Special order, ships in 7-14 days
84766100Ferrari Cap - 84766100SupersededOrder 85148300 instead
891744Ferrari External Rear Screen Seal - 891744$875.44Special order, ships in 7-14 days
81436600Ferrari Interior Rear View Mirror Complete - 81436600SupersededOrder 84475000 instead
82598700Ferrari Interior Rear View Mirror Complete - 82598700$2,550.32Special order, ships in 7-14 days
190935Ferrari Rain And Dusk Sensor Ecu - 190935SupersededOrder 60684944 instead
