Ferrari 458 Speciale Aperta (Convertible) — Windscreen Wiper, Windscreen Washer And Horns (diagram 127)

Exploded view of the windscreen wiper, windscreen washer and horns on the Ferrari 458 Speciale Aperta (Convertible), with 40 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

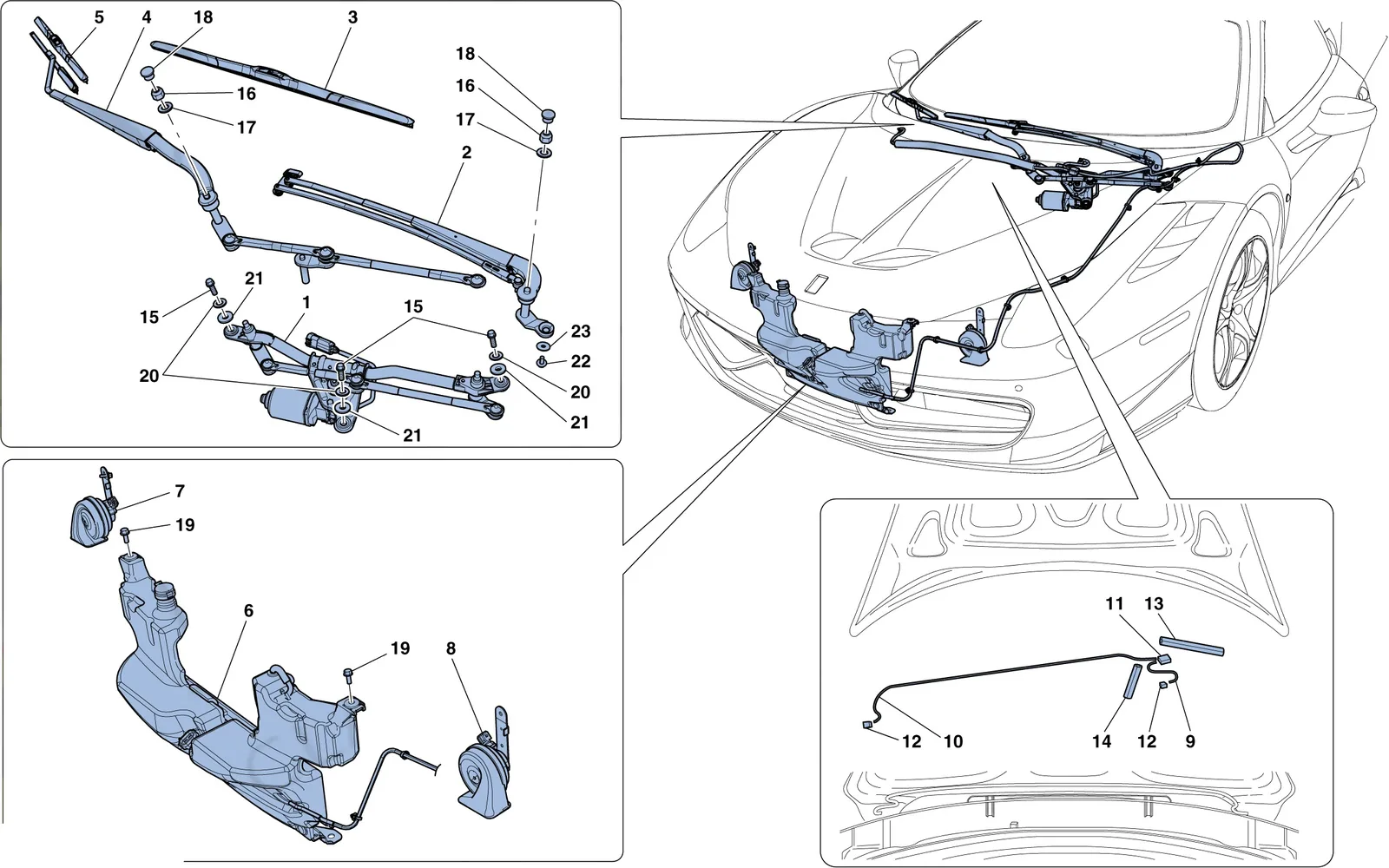

Ferrari 458 Speciale Aperta (Convertible) Windscreen Wiper, Windscreen Washer And Horns exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
185774200Ferrari Windscreen Wiper Complete LHD - 85774200$1,321.77Special order, ships in 7-14 days
185890100Ferrari Windscreen Wiper Complete RHD - 85890100$1,811.33Special order, ships in 7-14 days
281511900Ferrari Driver Side Windscreen Wiper Arm LHD - 81511900$590.91Special order, ships in 7-14 days
282964300Ferrari Driver Side Windscreen Wiper Arm RHD - 82964300$590.91Special order, ships in 7-14 days
380534900Ferrari Wiper Blade Driver Side (Left) - 80534900$75.74In stock
380539000Ferrari Drivers Side Wiper Blade RHD - 80539000$240.73Available, ships in 3-6 days
481511800Ferrari Passenger Side Windscreen Wiper Arm LHD - 81511800$295.43Special order, ships in 7-14 days
482964200Ferrari Passenger Side Windscreen Wiper Arm RHD - 82964200$295.43Special order, ships in 7-14 days
581511600Ferrari 458/488/F8 Wiper Blade Passenger Side (Right) - 81511600$64.46In stock
582964000Ferrari Passenger Side Windscreen Wiper Blade RHD - 82964000$183.83Available, ships in 3-6 days
685711600Ferrari Windscreen/Head Lamp Washer - 85711600$905.64Special order, ships in 7-14 days
7256356Ferrari RH Horn - 256356$63.08Special order, ships in 7-14 days
8256357Ferrari LH Horn - 256357$63.08Special order, ships in 7-14 days
983087800Ferrari Pipe 4 x 8 x 126 - 83087800Price on requestContact us for price and availability
1083087900Ferrari Pipe 4X8X865 - 83087900SupersededOrder 84075600 instead
1182984600Ferrari Check Valve (3 Way) - 82984600Price on requestContact us for price and availability
1265191000Ferrari Spray Nozzle - 65191000$5.44Available, ships in 3-6 days
1383982600Ferrari Anti-Vibration Rubber Pipe - 83982600$9.53Special order, ships in 7-14 days
1483982500Ferrari Anti-Vibration Rubber Pipe - 83982500$3.39Special order, ships in 7-14 days
1510902824Ferrari Screw M6 x 30 - 10902824$0.17Available, ships in 3-6 days
1610791011Ferrari Nut M10 x 1.25 x 6 - 10791011$1.40Available, ships in 3-6 days
1712601474Ferrari Wavy Washer 10mm - 12601474$0.06Available, ships in 3-6 days
1815811787Ferrari Protective Cap 17 x 10.5 - 15811787$1.53Available, ships in 3-6 days
1981045300Ferrari Screw 6x16 - 81045300$1.36Special order, ships in 7-14 days
2012601274Ferrari Wavy Washer 6mm - 12601274$1.04Available, ships in 3-6 days
2112640604Ferrari Washer D.6 15-25X - 12640604$0.27Available, ships in 3-6 days
2262940900Ferrari Allen Head Screw M6 x 15 TBEI - 62940900$2.59Available, ships in 3-6 days
2312643724Ferrari/Maserati Washer - 12643724$0.20In stock
2314499324Ferrari Washer - 14499324SupersededOrder 12643724 instead
84075600Ferrari Pipe 4 x 8 x 865 - 84075600$92.99Special order, ships in 7-14 days
80131500Ferrari Spray Nozzle - 80131500SupersededOrder 65191000 instead
106853Ferrari Spring Washer 10mm - 106853SupersededOrder 12601474 instead
10516873Ferrari Washer - 10516873SupersededOrder 12601474 instead
12601224Ferrari Washer - 12601224SupersededOrder 12601274 instead
12601471Ferrari Washer - 12601471SupersededOrder 12601474 instead
12605370Ferrari Washer - 12605370SupersededOrder 12601274 instead
12605371Ferrari Washer - 12605371SupersededOrder 12601274 instead
14499301Ferrari Washer - 14499301SupersededOrder 12643724 instead
680232Ferrari Washer - 680232SupersededOrder 12601274 instead
12605374Ferrari Wavy Washer - 12605374SupersededOrder 12601274 instead
