Ferrari 458 Speciale Aperta (Convertible) — Anti-Theft System (diagram 132)

Exploded view of the anti-theft system on the Ferrari 458 Speciale Aperta (Convertible), with 23 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

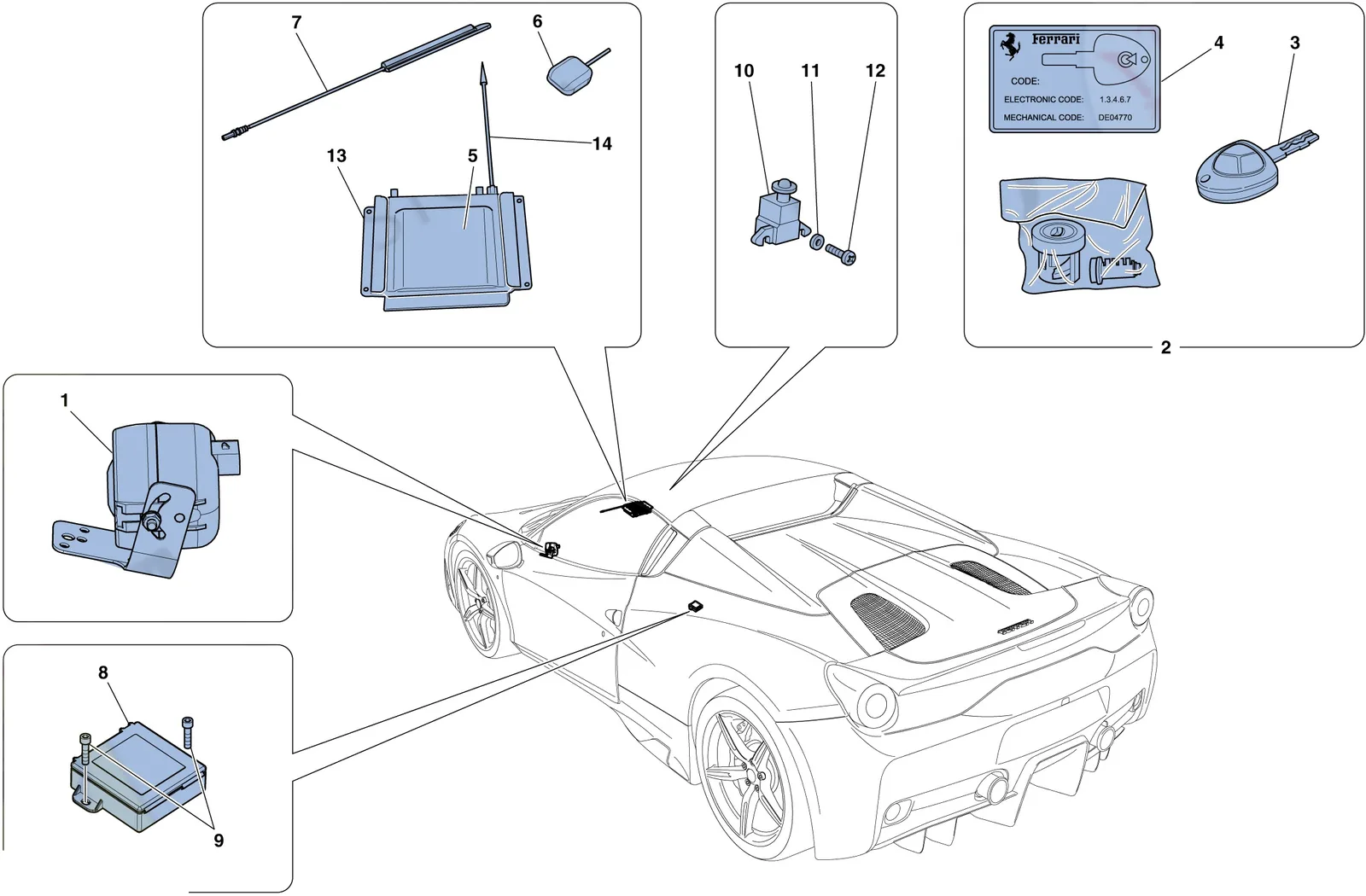

Ferrari 458 Speciale Aperta (Convertible) Anti-Theft System exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
1294965Ferrari Siren Unit Complete - 294965$232.07Available, ships in 3-6 days
1315686Ferrari Siren Unit Complete - 315686$282.82Special order, ships in 7-14 days
2263527Ferrari Key And Block Kit - 263527$1,419.67Special order, ships in 7-14 days
3266649Ferrari Uncoded Key - 266649$1,003.57Special order, ships in 7-14 days
4153603Ferrari Key Code Card - 153603$100.34Special order, ships in 7-14 days
5307603Ferrari ADR10 Satellite Anti-Theft System ECU - 307603$6,529.70Special order, ships in 7-14 days
6278513Ferrari GPS Antenna - 278513$652.72Special order, ships in 7-14 days
7278514Ferrari GSM Antenna - 278514$63.08Special order, ships in 7-14 days
8293416Ferrari Master Dipole Anti-Lift Sensor - 293416$721.22Special order, ships in 7-14 days
8316531Ferrari Master Dipole Anti-Lift Sensor - 316531$587.44Special order, ships in 7-14 days
914305224Ferrari Screw 6x16 - 14305224$0.96Available, ships in 3-6 days
914305221Ferrari Screw M6 x 16 - 14305221$0.17Available, ships in 3-6 days
10239744Ferrari Two-Tone Infoled - 239744$193.35Special order, ships in 7-14 days
1115688801Ferrari Screw M3.5 x 13 - 15688801SupersededOrder 63343400 instead
1163343400Ferrari Screw 4x15 - 63343400$5.02Available, ships in 3-6 days
1212637801Ferrari Washer - 12637801$0.19Available, ships in 3-6 days
13297179Ferrari Bracket - 297179$318.19Special order, ships in 7-14 days
14307605Ferrari ADR10 Satellite Alarm System Ecu - 307605$522.16Special order, ships in 7-14 days
235627Ferrari ADR5 Satellite Anti-Theft System ECU - 235627Price on requestContact us for price and availability
188253Ferrari Bicolor Warning Light - 188253SupersededOrder 239744 instead
277205Ferrari Satellite Anti-Theft System Ecu - 277205SupersededOrder 307603 instead
293779Ferrari Satellite Anti-Theft System Ecu - 293779$4,002.68Special order, ships in 7-14 days
285149Ferrari Siren Unit Complete - 285149SupersededOrder 294965 instead

All 458 Speciale Aperta (Convertible) diagrams
