Ferrari 458 Speciale — Servo Brake System (diagram 027)

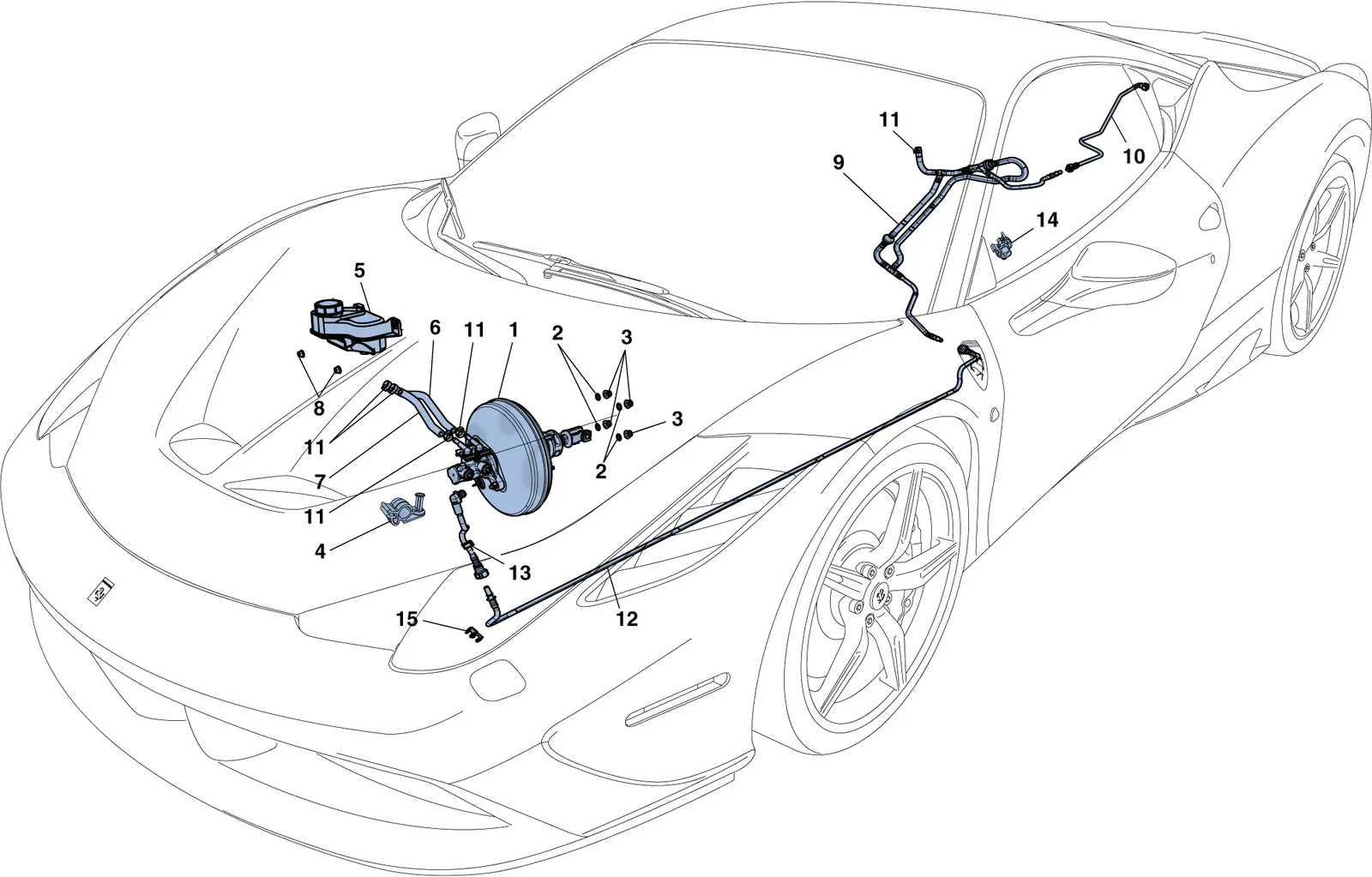

Exploded view of the servo brake system on the Ferrari 458 Speciale, with 28 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 244010 | Ferrari Brake Servo With Pump Complete LHD - 244010 | $1,092.79 | Special order, ships in 7-14 days |
| 1 | 248907 | Ferrari Brake Servo With Pump Complete RHD - 248907 | $848.53 | Special order, ships in 7-14 days |
| 2 | 12601374 | Ferrari Wavy Washer 8mm - 12601374 | $3.12 | Available, ships in 3-6 days |
| 3 | 12578211 | Ferrari Flanged Nyloc Nut - 12578211 | $0.57 | Special order, ships in 7-14 days |
| 4 | 250733 | Ferrari Clip - 250733 | $1.67 | Special order, ships in 7-14 days |
| 5 | 259047 | Ferrari 458/488/812/F12 Brake Fluid Reservoir - 259047 | $67.78 | In stock |
| 6 | 238606 | Ferrari Rubber Pipe LHD - 238606 | $39.37 | Special order, ships in 7-14 days |
| 6 | 262569 | Ferrari Rubber Pipe RHD - 262569 | $120.62 | Special order, ships in 7-14 days |
| 7 | 238607 | Ferrari Rubber Pipe LHD - 238607 | $34.44 | Special order, ships in 7-14 days |
| 7 | 262570 | Ferrari Rubber Pipe RHD - 262570 | $120.62 | Special order, ships in 7-14 days |
| 8 | 14040611 | Ferrari Nut M6 - 14040611 | $0.57 | Available, ships in 3-6 days |
| 9 | 293099 | Ferrari Pipe With Kaiser Valve - 293099 | $440.56 | Special order, ships in 7-14 days |
| 10 | 262205 | Ferrari Connector Pipe - 262205 | $83.20 | Special order, ships in 7-14 days |
| 11 | 13432070 | Ferrari/Maserati Screw Collar / Hose Clamp - 13432070 | $0.95 | In stock |
| 12 | 262432 | Ferrari Underfloor Pipe - 262432 | $139.49 | Special order, ships in 7-14 days |
| 13 | 273670 | Ferrari Front Vacuum Pipe Complete LHD - 273670 | $393.93 | Special order, ships in 7-14 days |
| 13 | 275505 | Ferrari Front Vacuum Pipe Complete RHD - 275505 | $228.97 | Special order, ships in 7-14 days |
| 13 | 263409 | Ferrari Front Vacuum Pipe Complete LHD - 263409 | $391.61 | Special order, ships in 7-14 days |
| 13 | 262431 | Ferrari Front Vacuum Pipe Complete RHD - 262431 | $73.41 | Special order, ships in 7-14 days |
| 14 | 268340 | Ferrari Bracket - 268340 | $17.84 | Special order, ships in 7-14 days |
| 15 | 140130 | Ferrari Clip - 140130 | $0.27 | Available, ships in 3-6 days |
| 262204 | Ferrari Pipe With Kaiser Valve - 262204 | Superseded | Order 293099 instead | |
| 10615670 | Ferrari Washer - 10615670 | Superseded | Order 12601374 instead | |
| 10615671 | Ferrari Washer - 10615671 | Superseded | Order 12601374 instead | |
| 10615674 | Ferrari Washer - 10615674 | Superseded | Order 12601374 instead | |
| 10615679 | Ferrari Washer - 10615679 | Superseded | Order 12601374 instead | |
| 12601370 | Ferrari Washer - 12601370 | Superseded | Order 12601374 instead | |
| 12601379 | Ferrari Washer - 12601379 | Superseded | Order 12601374 instead |
