Ferrari 488 Pista Spider — Brake Master Cylinder Reservoir (diagram 070)

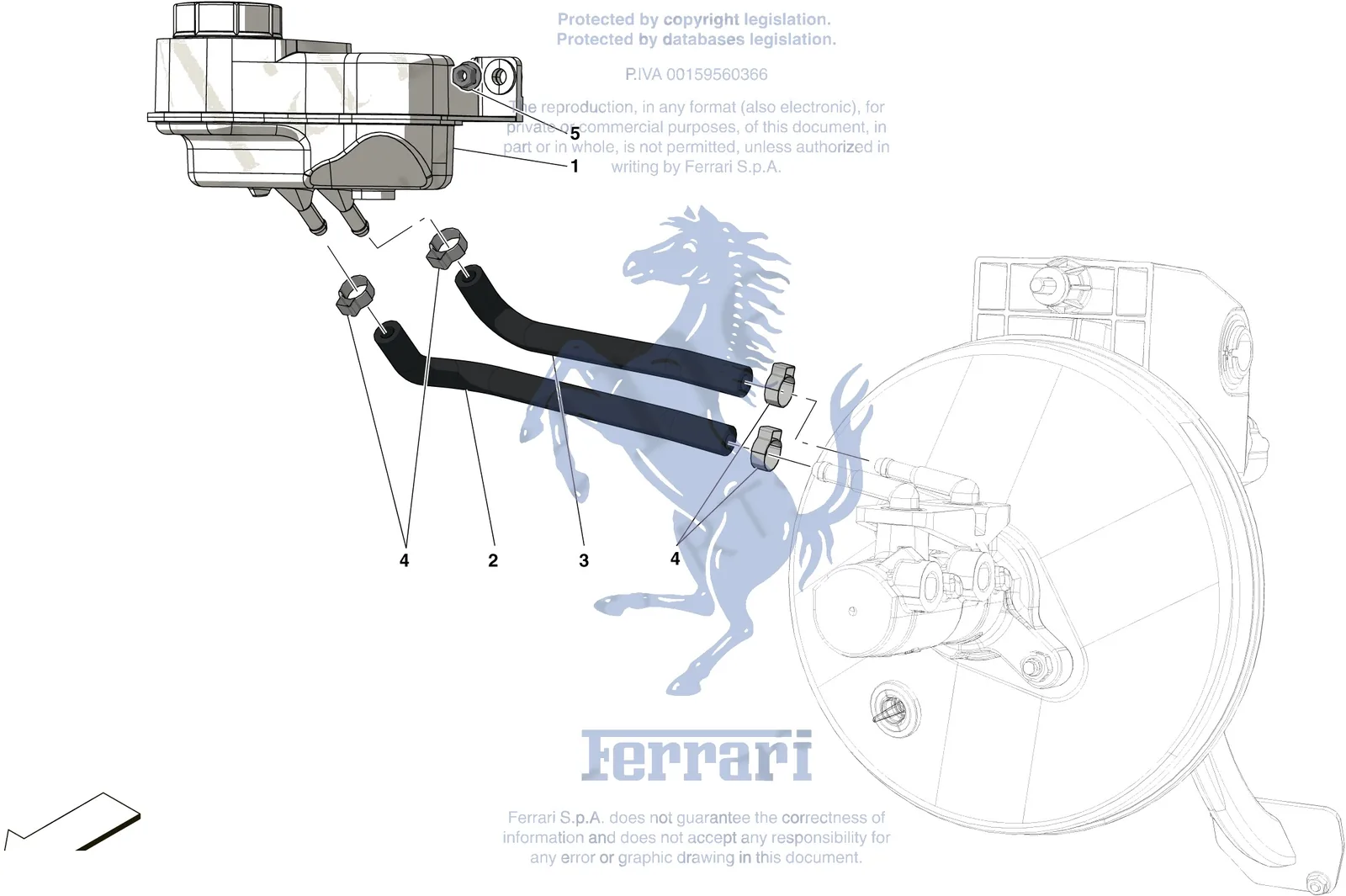

Exploded view of the brake master cylinder reservoir on the Ferrari 488 Pista Spider, with 5 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 259047 | Ferrari 458/488/812/F12 Brake Fluid Reservoir - 259047 | $67.78 | In stock |
| 2 | 238606 | Ferrari Rubber Pipe LHD - 238606 | $39.37 | Special order, ships in 7-14 days |
| 3 | 238607 | Ferrari Rubber Pipe LHD - 238607 | $34.44 | Special order, ships in 7-14 days |
| 4 | 13432070 | Ferrari/Maserati Screw Collar / Hose Clamp - 13432070 | $0.95 | In stock |
| 5 | 14040611 | Ferrari Nut M6 - 14040611 | $0.57 | Available, ships in 3-6 days |
