Ferrari 488 Pista Spider — Lateral Substructure (diagram 101)

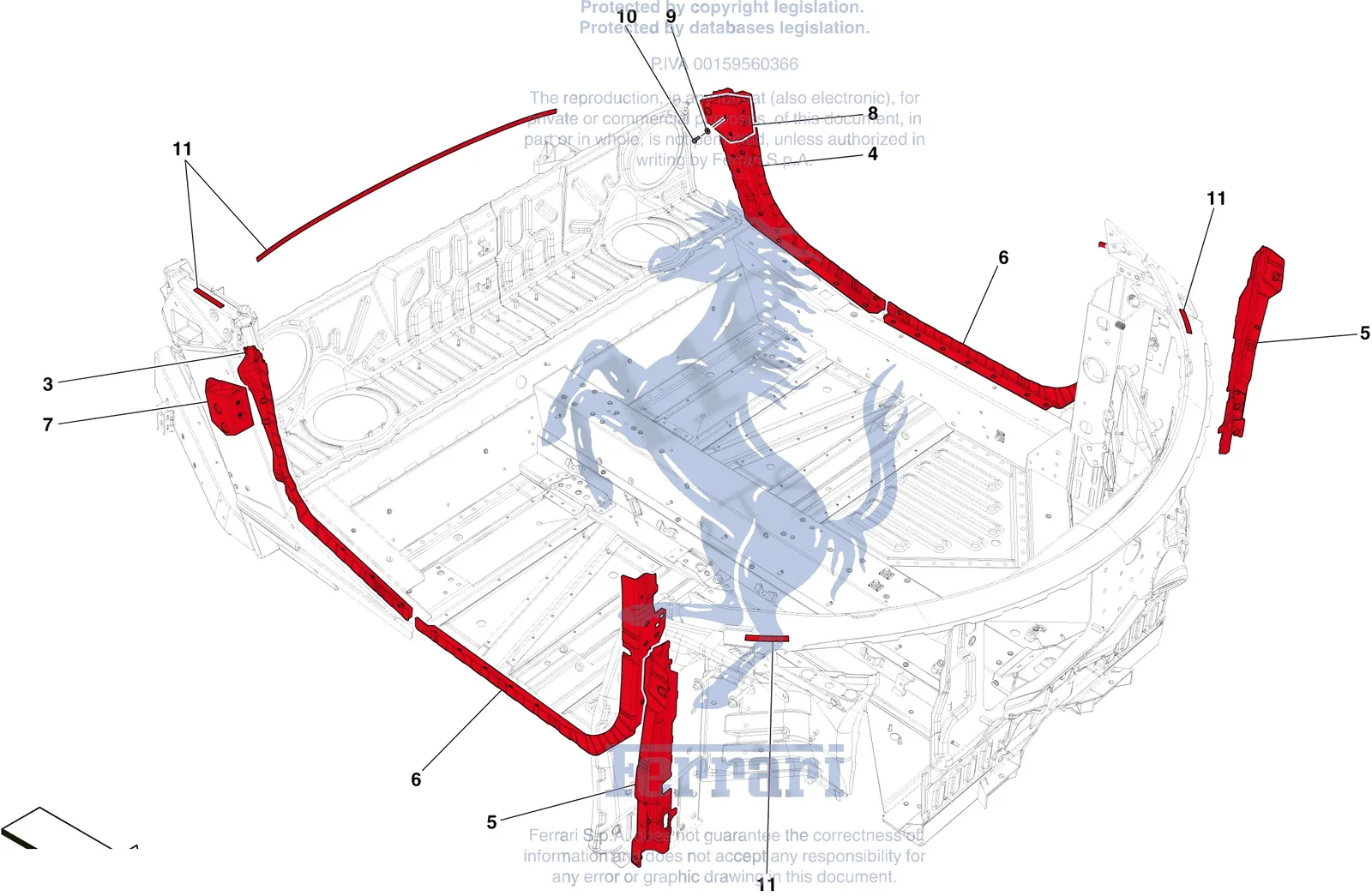

Exploded view of the lateral substructure on the Ferrari 488 Pista Spider, with 17 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 3 | 83815011 | Ferrari RH Rear Endpiece - 83815011 | $517.04 | Special order, ships in 7-14 days |
| 4 | 83814711 | Ferrari LH Rear Endpiece - 83814711 | $517.04 | Special order, ships in 7-14 days |
| 5 | 86675811 | Ferrari A Pillar Flange. Front LH Se - 86675811 | $443.17 | Special order, ships in 7-14 days |
| 7 | 86744411 | Ferrari RH Lock Striker Reinforcemen - 86744411 | $664.78 | Special order, ships in 7-14 days |
| 8 | 86744211 | Ferrari LH Lock Striker Reinforcemen - 86744211 | $664.78 | Special order, ships in 7-14 days |
| 9 | 12626021 | Ferrari Washer - 12626021 | $0.82 | Special order, ships in 7-14 days |
| 10 | 16287234 | Ferrari SCREW - 16287234 | $1.05 | Available, ships in 3-6 days |
| 11 | 65918500 | Ferrari VIBRATION DAMPER - 65918500 | Price on request | Contact us for price and availability |
| 86675800 | Ferrari LH Front Section Pillar Flange - 86675800 | $183.56 | Special order, ships in 7-14 days | |
| 86744200 | Ferrari LH Lock Striker Reinforcemen - 86744200 | Superseded | Order 86744211 instead | |
| 82820400 | Ferrari LH Rear Endpiece - 82820400 | $212.92 | Special order, ships in 7-14 days | |
| 83814700 | Ferrari LH Rear Endpiece - 83814700 | $178.65 | Special order, ships in 7-14 days | |
| 86675900 | Ferrari RH Front Element Pillar Flange - 86675900 | Superseded | Order 86675911 instead | |
| 86744400 | Ferrari RH Lock Striker Reinforcemen - 86744400 | Superseded | Order 86744411 instead | |
| 83371800 | Ferrari RH Rear Endpiece - 83371800 | $212.92 | Special order, ships in 7-14 days | |
| 83815000 | Ferrari RH Rear Endpiece - 83815000 | $178.65 | Special order, ships in 7-14 days | |
| 1 | 86675911 | Ferrari A Pillar Flange. Front RH El - 86675911 | $443.17 | Special order, ships in 7-14 days |
