Ferrari 488 Pista — [ENGINE] - B.01 - CRANKCASE (diagram 0004)
Exploded view of the [engine] - b.01 - crankcase on the Ferrari 488 Pista, with 48 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

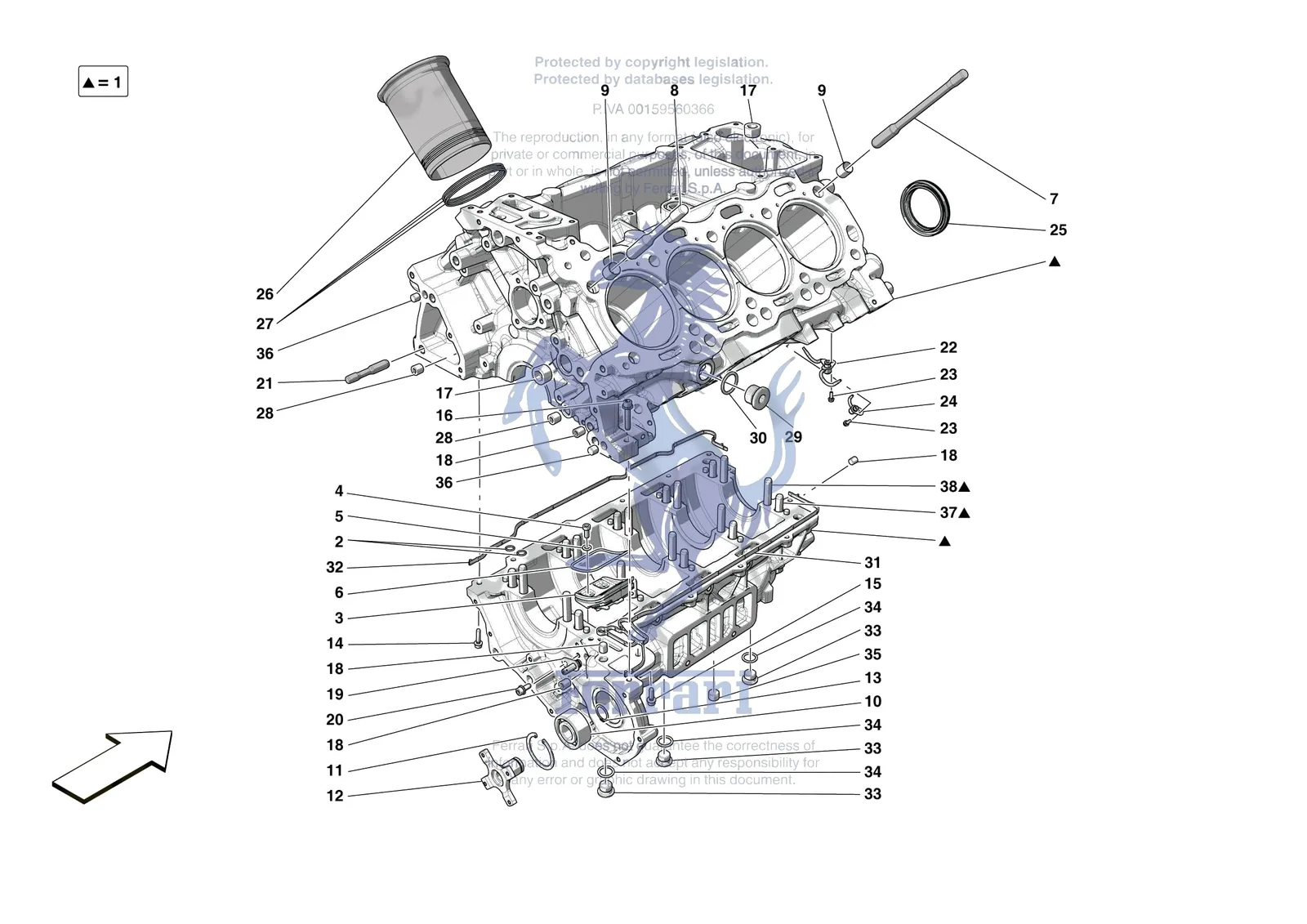

![Ferrari 488 Pista [ENGINE] - B.01 - CRANKCASE exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/488-pista/0004.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 302154 | Ferrari Cap - 302154 | $13.03 | Special order, ships in 7-14 days | |
| 296397 | Ferrari Gasket - 296397 | Superseded | Order 339289 instead | |
| 310839 | Ferrari Gasket - 310839 | Superseded | Order 339287 instead | |
| 300499 | Ferrari Screw - 300499 | $1.44 | Special order, ships in 7-14 days | |
| 216568 | Ferrari Screw 6x30 - 216568 | Superseded | Order 231621 instead | |
| 11066875 | Ferrari Snap Ring - 11066875 | Superseded | Order 11066876 instead | |
| 194490 | Ferrari Threaded Plug - 194490 | Superseded | Order 164400 instead | |
| 194495 | Ferrari Threaded Plug - 194495 | Superseded | Order 282755 instead | |
| 14326001 | Ferrari Threaded Plug D 10x1.25 - 14326001 | Superseded | Order 282755 instead | |
| 11197779 | Ferrari Washer - 11197779 | Superseded | Order 11197774 instead | |
| 1 | 807811 | Ferrari Crankcase-Lower Crankcase Sh - 807811 | $7,549.48 | Special order, ships in 7-14 days |
| 2 | 134705 | Ferrari O-Ring - 134705 | $0.76 | In stock |
| 3 | 312836 | Ferrari Complete Valve Holder - 312836 | $492.43 | Special order, ships in 7-14 days |
| 4 | 13026924 | Ferrari Screw 6x14 - 13026924 | $0.57 | Available, ships in 3-6 days |
| 5 | 11197774 | Ferrari Conic Washer 6.4x12x1.2 - 11197774 | $0.12 | Available, ships in 3-6 days |
| 6 | 103994 | Ferrari Gasket - 103994 | $9.33 | Special order, ships in 7-14 days |
| 7 | 270464 | Ferrari Stud Bolt - 270464 | $46.75 | Special order, ships in 7-14 days |
| 8 | 271564 | Ferrari Stud Bolt M14 x 1.5 to M12 - 271564 | $46.75 | Available, ships in 3-6 days |
| 9 | 185360 | Ferrari Centering Dowel - 185360 | $5.44 | Special order, ships in 7-14 days |
| 10 | 247049 | Ferrari Bearing - 247049 | $87.40 | Special order, ships in 7-14 days |
| 11 | 11060276 | Ferrari Circlip - 11060276 | $0.92 | Available, ships in 3-6 days |
| 12 | 304697 | Ferrari Drive Joint - 304697 | $295.43 | Special order, ships in 7-14 days |
| 13 | 11066876 | Ferrari Circlip 20E - 11066876 | $0.13 | Available, ships in 3-6 days |
| 14 | 231620 | Ferrari/Maserati Screw - 231620 | $0.58 | In stock |
| 15 | 231618 | Ferrari Allen Head Screw M6x20 TCEI - 231618 | $0.57 | Available, ships in 3-6 days |
| 16 | 231621 | Ferrari Allen Screw M6 x 30 TCEI - 231621 | $0.73 | Available, ships in 3-6 days |
| 17 | 282753 | Ferrari Cover - Threaded Plug - 282753 | $13.09 | Special order, ships in 7-14 days |
| 18 | 282755 | Ferrari Threaded Plug D 10x1.25 - 282755 | $4.35 | Available, ships in 3-6 days |
| 19 | 317217 | Ferrari Chain Cooling Nozzle Assembly - 317217 | $91.08 | Special order, ships in 7-14 days |
| 20 | 282392 | Ferrari Screw 6x14 - 282392 | $0.96 | Available, ships in 3-6 days |
| 21 | 278120 | Ferrari Stud Bolt - 278120 | $39.37 | Special order, ships in 7-14 days |
| 22 | 298858 | Ferrari Piston Cooling Nozzle Assembly - 298858 | $64.00 | Special order, ships in 7-14 days |
| 23 | 315493 | Ferrari Screw - 315493 | $2.13 | Special order, ships in 7-14 days |
| 24 | 298859 | Ferrari Piston Cooling Nozzle Assembly - 298859 | $44.29 | Special order, ships in 7-14 days |
| 25 | 271598 | Ferrari/Maserati Front Crankshaft Oil Seal - 271598 | $62.78 | In stock |
| 26 | 334890 | Ferrari Cylinder Sleeve - 334890 | $545.77 | Special order, ships in 7-14 days |
| 27 | 334895 | Ferrari Gasket - 334895 | $7.36 | Special order, ships in 7-14 days |
| 28 | 291078 | Ferrari Threaded Plug 12x11 - 291078 | $5.02 | Special order, ships in 7-14 days |
| 29 | 307477 | Ferrari/Maserati Crankcase Threaded Plug - 307477 | $5.35 | In stock |
| 30 | 10263460 | Ferrari/Maserati Copper Washer - 10263460 | $1.93 | In stock |
| 31 | 339287 | Ferrari Gasket - 339287 | $44.29 | Special order, ships in 7-14 days |
| 32 | 339289 | Ferrari Gasket - 339289 | $81.23 | Special order, ships in 7-14 days |
| 33 | 306145 | Ferrari 488 Crankcase Drain Plug - 306145 | $11.99 | In stock |
| 34 | 10259960 | Ferrari Copper Washer - 10259960 | $1.21 | In stock |
| 35 | 164400 | Ferrari Threaded Plug - 164400 | $6.96 | Special order, ships in 7-14 days |
| 36 | 311001 | Ferrari Alignment Dowel - 311001 | $6.10 | Special order, ships in 7-14 days |
| 37 | 270465 | Ferrari Stud Bolt - 270465 | $36.92 | Special order, ships in 7-14 days |
| 38 | 270466 | Ferrari Stud Bolt - 270466 | $41.82 | Special order, ships in 7-14 days |
