Ferrari 488 Pista — [ENGINE] - B.07 - TORSION DAMPER (diagram 0010)

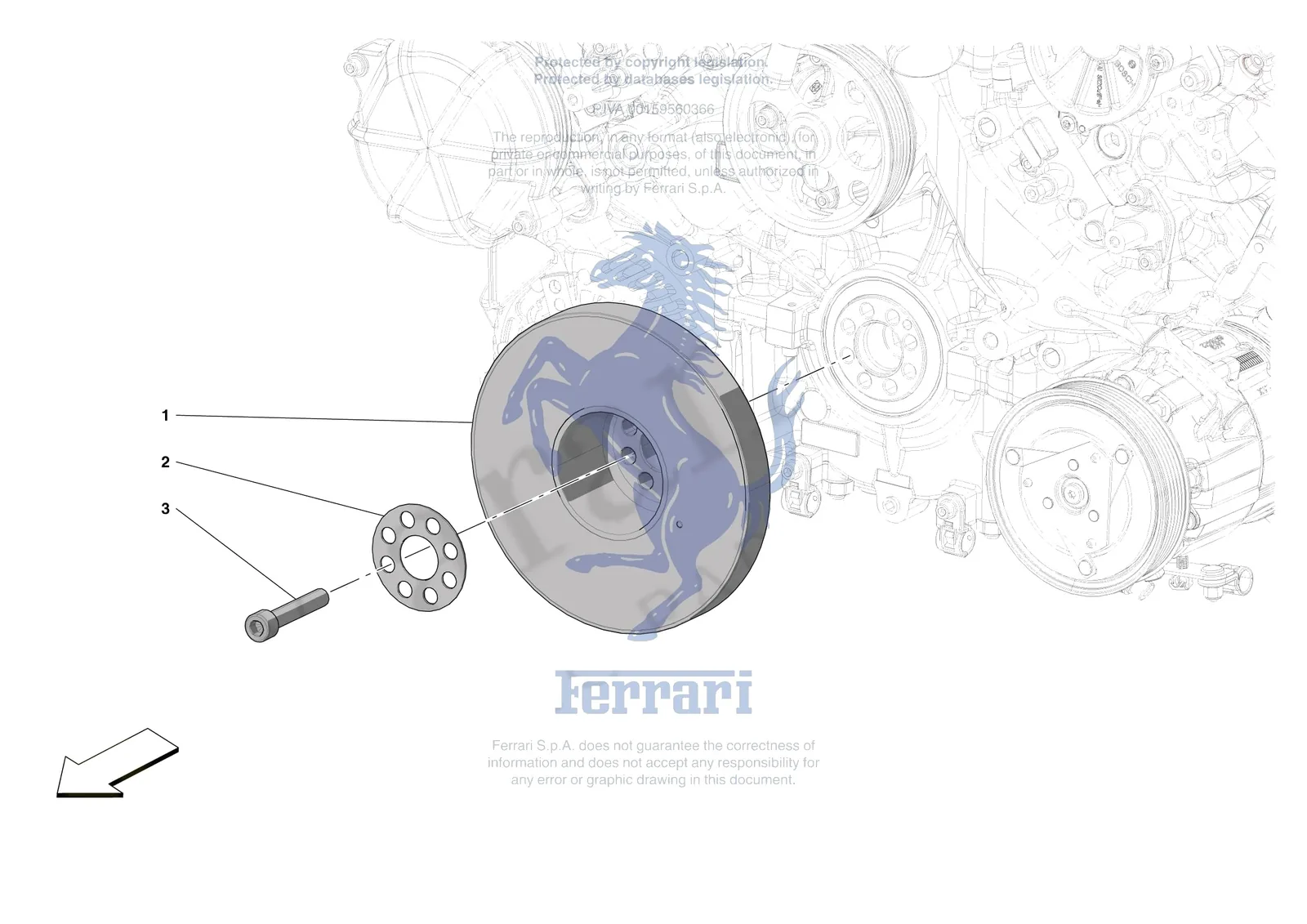

Exploded view of the [engine] - b.07 - torsion damper on the Ferrari 488 Pista, with 6 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari 488 Pista [ENGINE] - B.07 - TORSION DAMPER exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/488-pista/0010.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 311102 | Ferrari Torsion Damper - 311102 | Superseded | Order 819216 instead | |
| 337807 | Ferrari Torsion Damper - 337807 | Superseded | Order 819216 instead | |
| 1 | 771929 | Ferrari Torsion Damper - 771929 | Superseded | Order 819216 instead |
| 1 | 819216 | Ferrari Torsion Damper - 819216 | $2,436.45 | Special order, ships in 7-14 days |
| 2 | 271609 | Ferrari Flywheel Washer - 271609 | $5.04 | Special order, ships in 7-14 days |
| 3 | 14308074 | Ferrari Screw - 14308074 | $4.12 | Available, ships in 3-6 days |
