Ferrari 488 Pista — [ENGINE] - B.15 - INJECTION CONTROL (diagram 0020)

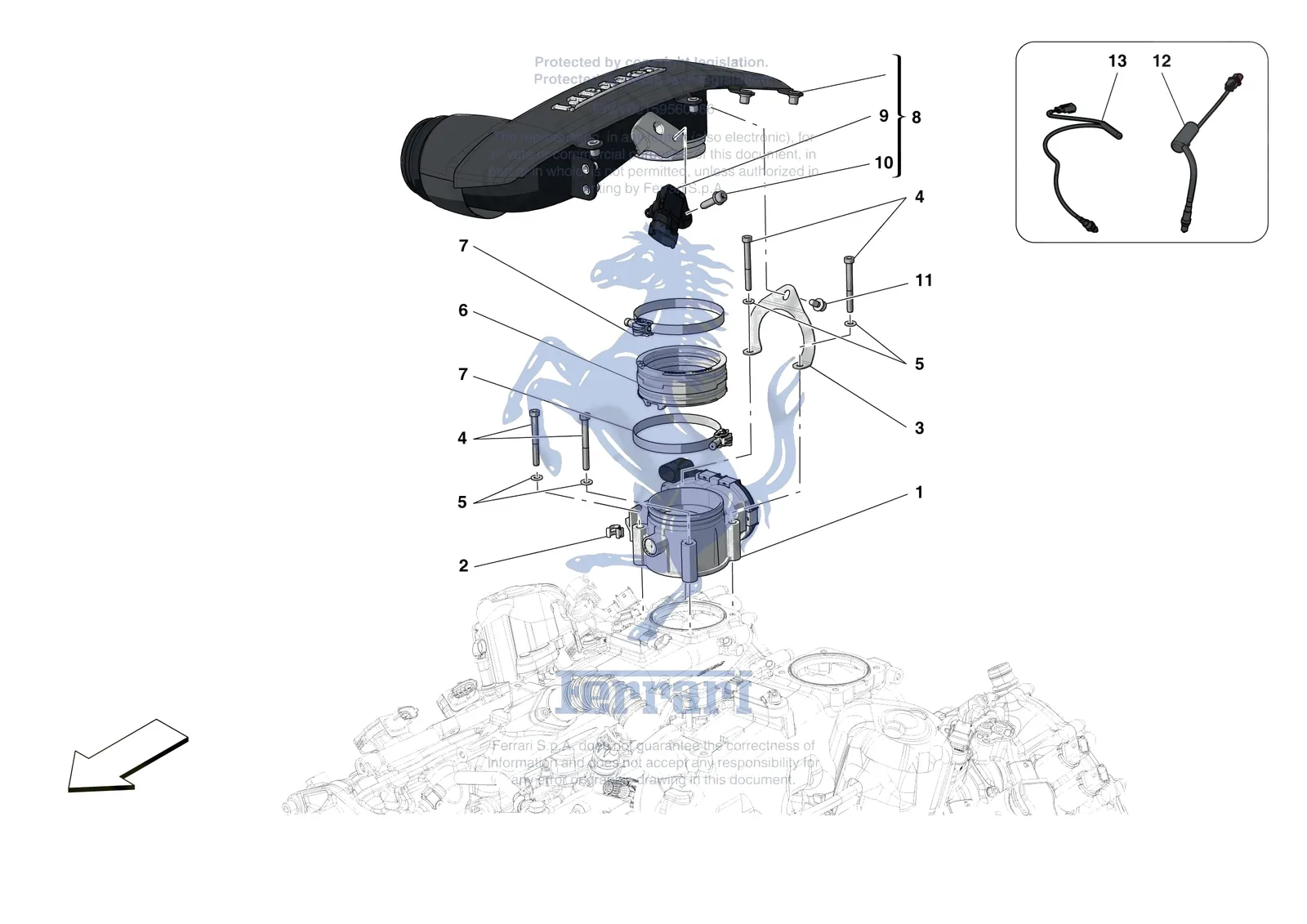

Exploded view of the [engine] - b.15 - injection control on the Ferrari 488 Pista, with 23 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari 488 Pista [ENGINE] - B.15 - INJECTION CONTROL exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/488-pista/0020.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 14432221 | Ferrari Screw - 14432221 | Superseded | Order 231619 instead | |
| 14432224 | Ferrari Screw M6 x 22 - 14432224 | Superseded | Order 231619 instead | |
| 279575 | Ferrari Throttle Body - 279575 | Superseded | Order 329966 instead | |
| 11197779 | Ferrari Washer - 11197779 | Superseded | Order 11197774 instead | |
| 1 | 329966 | Ferrari Throttle Body - 329966 | $615.54 | Special order, ships in 7-14 days |
| 2 | 818494 | Ferrari Clip - 818494 | $2.13 | Special order, ships in 7-14 days |
| 3 | 767488 | Ferrari Bracket - 767488 | $39.37 | Special order, ships in 7-14 days |
| 4 | 769144 | Ferrari Screw - 769144 | $1.30 | Special order, ships in 7-14 days |
| 5 | 11197774 | Ferrari Conic Washer 6.4x12x1.2 - 11197774 | $0.12 | Available, ships in 3-6 days |
| 6 | 338560 | Ferrari Spacer - 338560 | $91.08 | Special order, ships in 7-14 days |
| 7 | 304446 | Ferrari Screw Collar - 304446 | $8.72 | Special order, ships in 7-14 days |
| 8 | 70006355 | Ferrari Compl. LH Intake Plenum - 70006355 | $10,257.32 | Contact us to order |
| 8 | 801824 | Ferrari Compl. LH Intake Plenum - 801824 | $11,252.75 | Contact us to order |
| 8 | 856680 | Ferrari Compl. LH Intake Plenum - 856680 | $11,325.02 | Contact us to order |
| 8 | 70006354 | Ferrari Compl. RH Intake Plenum - 70006354 | $10,257.32 | Contact us to order |
| 8 | 801823 | Ferrari Compl. RH Intake Plenum - 801823 | $11,252.75 | Contact us to order |
| 8 | 856685 | Ferrari Compl. RH Intake Plenum - 856685 | $11,325.02 | Contact us to order |
| 9 | 272880 | Ferrari Pressure and Temperature Sensor - 272880 | $61.26 | Available, ships in 3-6 days |
| 10 | 231619 | Ferrari Screw M6 x 22 - 231619 | $0.54 | Available, ships in 3-6 days |
| 11 | 282391 | Ferrari Screw - 282391 | $1.80 | Special order, ships in 7-14 days |
| 12 | 292582 | Ferrari Front Oxygen Sensor - 292582 | $324.76 | Available, ships in 3-6 days |
| 13 | 300507 | Ferrari Rear Oxygen Sensor - 300507 | Superseded | Order 784822 instead |
| 13 | 784822 | Ferrari Rear Oxygen Sensor - 784822 | $105.00 | In stock |
