Ferrari 488 Pista — [ENGINE] - B.24 - ENGINE COOLING SYSTEM PUMP (diagram 0029)

Exploded view of the [engine] - b.24 - engine cooling system pump on the Ferrari 488 Pista, with 6 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

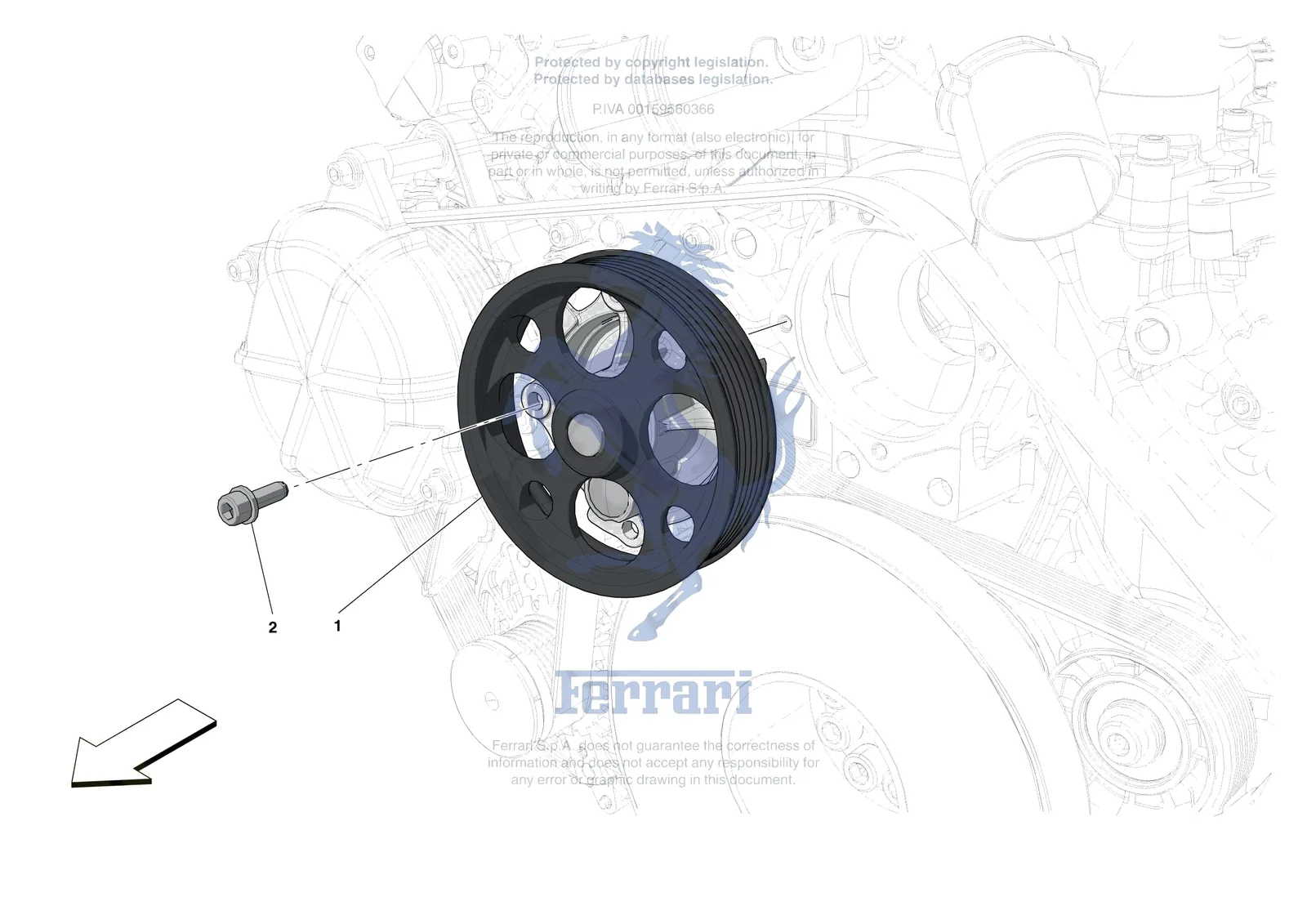

Ferrari 488 Pista [ENGINE] - B.24 - ENGINE COOLING SYSTEM PUMP exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
14433121Ferrari Screw - 14433121SupersededOrder 231617 instead
285582Ferrari Water Pump - 285582SupersededOrder 918319 instead
1308040Ferrari Water Pump Complete - 308040SupersededOrder 918319 instead
1766493Ferrari Water Pump Complete - 766493SupersededOrder 918319 instead
1918319Ferrari Water Pump Complete - 918319$603.87Available, ships in 3-6 days
2231617Ferrari Screw M6 x 18 TCEI - 231617SupersededOrder 14433124 instead

All 488 Pista diagrams
