Ferrari 488 Pista — [ENGINE] - B.28 - POWER STEERING PUMP (diagram 0033)

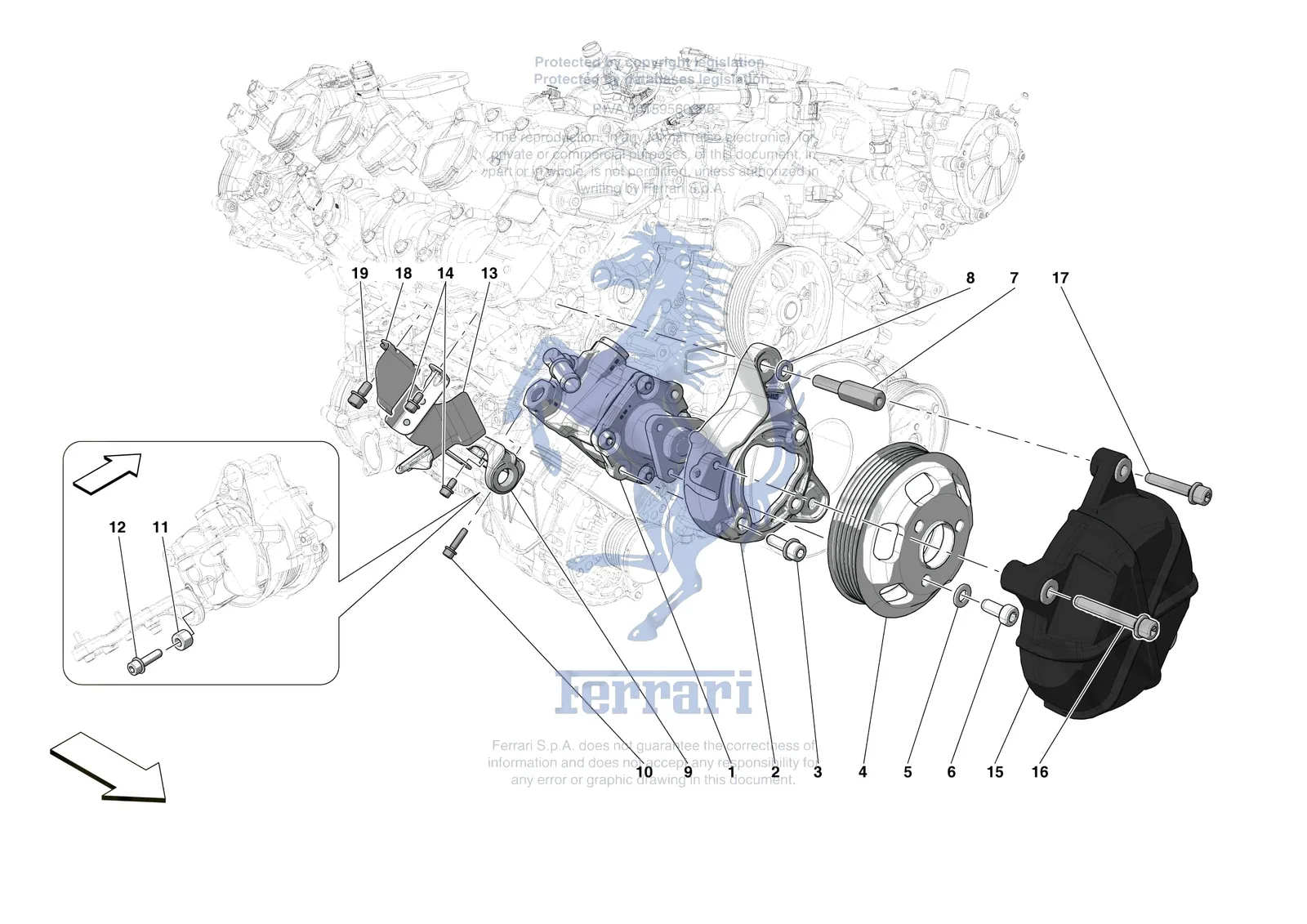

Exploded view of the [engine] - b.28 - power steering pump on the Ferrari 488 Pista, with 22 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari 488 Pista [ENGINE] - B.28 - POWER STEERING PUMP exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/488-pista/0033.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 216568 | Ferrari Screw 6x30 - 216568 | Superseded | Order 231621 instead | |
| 834367 | Ferrari Screw 8x25 - 834367 | Superseded | Order 231628 instead | |
| 318654 | Ferrari Soundproofing Cover - 318654 | Superseded | Order 324595 instead | |
| 1 | 277566 | Ferrari Power Steering Pump - 277566 | $1,816.58 | Special order, ships in 7-14 days |
| 2 | 304121 | Ferrari Front Mount - 304121 | $132.94 | Special order, ships in 7-14 days |
| 3 | 231628 | Ferrari Screw 8x25 - 231628 | $1.15 | Special order, ships in 7-14 days |
| 4 | 313375 | Ferrari Pulley For Power Steering Pump - 313375 | $590.91 | Special order, ships in 7-14 days |
| 5 | 11193874 | Ferrari Washer D.8.4-16x1.4 - 11193874 | $0.12 | Available, ships in 3-6 days |
| 6 | 13028324 | Ferrari Screw 8x16 - 13028324 | $8.30 | Special order, ships in 7-14 days |
| 7 | 809338 | Ferrari Stud Bolt - 809338 | $39.37 | Special order, ships in 7-14 days |
| 8 | 11198074 | Ferrari/Maserati Washer - 11198074 | $0.14 | In stock |
| 9 | 312300 | Ferrari Rear Mount - 312300 | $105.86 | Special order, ships in 7-14 days |
| 10 | 231620 | Ferrari/Maserati Screw - 231620 | $0.58 | In stock |
| 11 | 260393 | Ferrari Bushing - 260393 | $5.44 | Available, ships in 3-6 days |
| 12 | 231629 | Ferrari Allen Screw M8 x 30 TCEI - 231629 | $1.15 | Available, ships in 3-6 days |
| 13 | 807385 | Ferrari Power Steering Pump Shield - 807385 | $174.80 | Special order, ships in 7-14 days |
| 14 | 233600 | Ferrari/Maserati Screw - 233600 | $1.98 | In stock |
| 15 | 324595 | Ferrari Soundproofing Cover - 324595 | $228.97 | Special order, ships in 7-14 days |
| 16 | 231623 | Ferrari Screw M6 x 40 TCEI - 231623 | $1.02 | Available, ships in 3-6 days |
| 17 | 231621 | Ferrari Allen Screw M6 x 30 TCEI - 231621 | $0.73 | Available, ships in 3-6 days |
| 18 | 322525 | Ferrari Power Steering Pump Shield Bracket - 322525 | $16.96 | Special order, ships in 7-14 days |
| 19 | 231627 | Ferrari Screw M8 x 16 - 231627 | $1.25 | Available, ships in 3-6 days |
