Ferrari 488 Pista — [MECHANICAL SYSTEM] - D.04.01 - AIR FILTER AIR INTAKE AND DUCTS (diagram 0051)

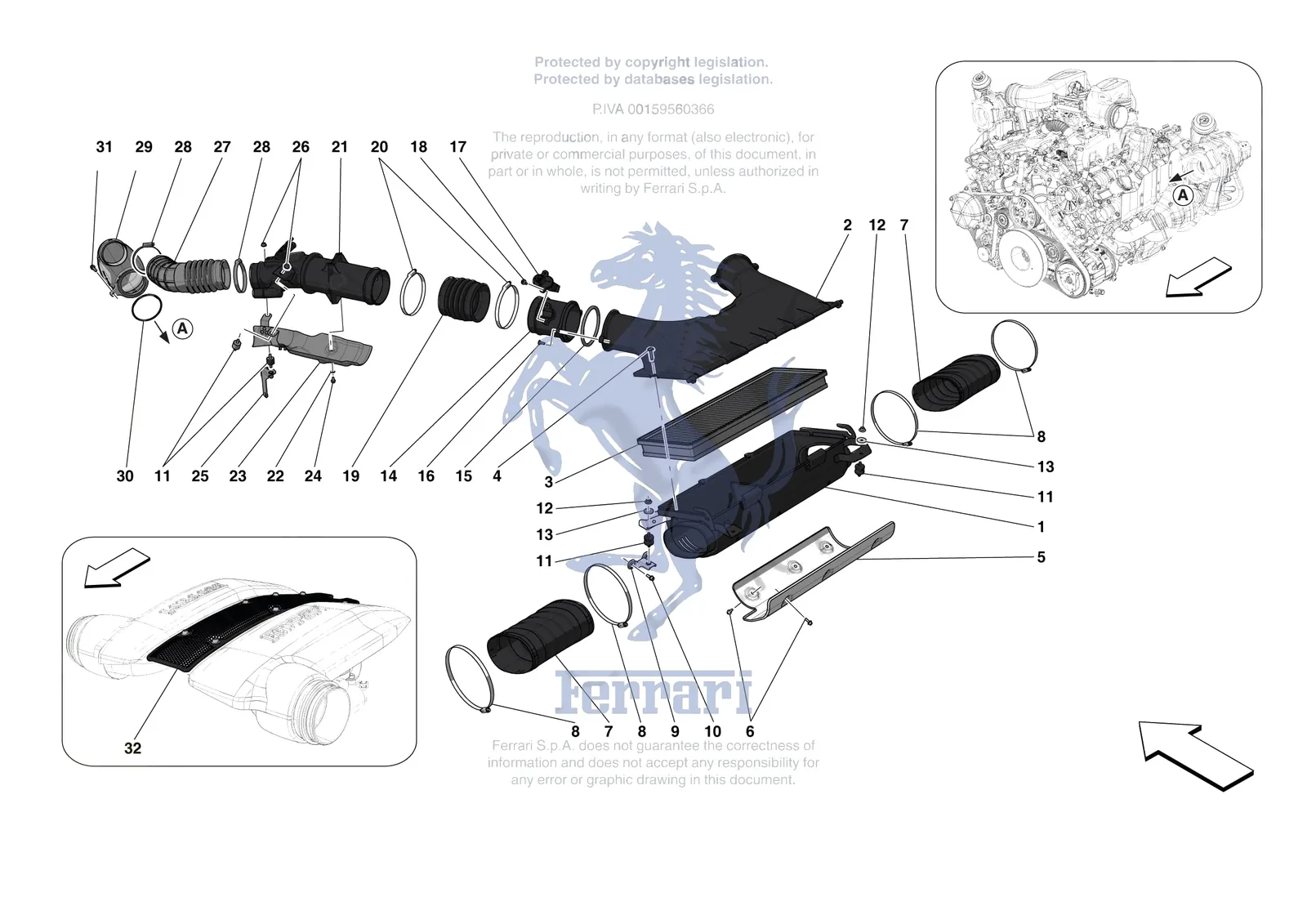

Exploded view of the [mechanical system] - d.04.01 - air filter air intake and ducts on the Ferrari 488 Pista, with 51 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari 488 Pista [MECHANICAL SYSTEM] - D.04.01 - AIR FILTER AIR INTAKE AND DUCTS exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/488-pista/0051.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 309530 | Ferrari Filter Box Cover - 309530 | Superseded | Order 343410 instead | |
| 313036 | Ferrari LH Intake Duct Connector - 313036 | Superseded | Order 324304 instead | |
| 322661 | Ferrari LH Intake Duct Sleeve - 322661 | Superseded | Order 324304 instead | |
| 313617 | Ferrari LH Turbo Duct Complete - 313617 | Superseded | Order 325567 instead | |
| 313035 | Ferrari Manicotto Condotto Aspirazio - 313035 | Superseded | Order 322660 instead | |
| 15896214 | Ferrari Nut M6 x 5 - 15896214 | Superseded | Order 14039614 instead | |
| 313616 | Ferrari RH Turbo Duct Complete - 313616 | Superseded | Order 325566 instead | |
| 14432221 | Ferrari Screw - 14432221 | Superseded | Order 231619 instead | |
| 14433121 | Ferrari Screw - 14433121 | Superseded | Order 231617 instead | |
| 11566224 | Ferrari Screw 5x14 - 11566224 | $0.77 | Available, ships in 3-6 days | |
| 14432224 | Ferrari Screw M6 x 22 - 14432224 | Superseded | Order 231619 instead | |
| 1 | 315204 | Ferrari Filter Box Lower Part - 315204 | $3,522.19 | Special order, ships in 7-14 days |
| 2 | 343410 | Ferrari Filter Box Cover - 343410 | $714.03 | Special order, ships in 7-14 days |
| 3 | 312530 | Ferrari 488 Engine Air Filter - 312530 | $142.45 | In stock |
| 3 | 318481 | Ferrari 488 Engine Air Filter - 318481 | $280.50 | In stock |
| 4 | 280758 | Ferrari Screw M5 x 25 TBCIT - 280758 | $15.29 | Special order, ships in 7-14 days |
| 5 | 318635 | Ferrari Filter Box Heat Shield - 318635 | $199.41 | Special order, ships in 7-14 days |
| 6 | 256323 | Ferrari Screw 5x16 - 256323 | $0.98 | Available, ships in 3-6 days |
| 7 | 816256 | Ferrari Air Intake Sleeve - 816256 | $492.43 | Special order, ships in 7-14 days |
| 8 | 826951 | Ferrari Collar - 826951 | $12.02 | Special order, ships in 7-14 days |
| 9 | 314915 | Ferrari Filter Box Mounting Bracket - 314915 | $31.99 | Special order, ships in 7-14 days |
| 10 | 231617 | Ferrari Screw M6 x 18 TCEI - 231617 | Superseded | Order 14433124 instead |
| 11 | 285553 | Ferrari Vibration Damper - 285553 | $36.00 | In stock |
| 12 | 14039614 | Ferrari NUT - 14039614 | $0.40 | Available, ships in 3-6 days |
| 13 | 12648978 | Ferrari Washer - 12648978 | $1.04 | Available, ships in 3-6 days |
| 14 | 311496 | Ferrari LH Air Flow Sensor Mounting Housing - 311496 | $64.00 | Special order, ships in 7-14 days |
| 14 | 311497 | Ferrari RH Air Flow Sensor Mounting Housing - 311497 | $64.00 | Special order, ships in 7-14 days |
| 15 | 193113 | Ferrari Gasket - 193113 | $16.60 | Special order, ships in 7-14 days |
| 16 | 85833700 | Ferrari SCREW - 85833700 | $0.65 | Available, ships in 3-6 days |
| 17 | 297280 | Ferrari Air Flow Sensor - 297280 | $237.66 | In stock |
| 18 | 16084477 | Ferrari Screw - 16084477 | $3.91 | Special order, ships in 7-14 days |
| 19 | 311476 | Ferrari Intake Duct Connector - 311476 | $177.25 | Available, ships in 3-6 days |
| 20 | 323688 | Ferrari Ring Clamp - 323688 | $8.93 | Special order, ships in 7-14 days |
| 21 | 813679 | Ferrari LH Pipe From Filter Box To T - 813679 | $562.96 | Special order, ships in 7-14 days |
| 21 | 335879 | Ferrari RH Pipe From Filter Box To T - 335879 | $562.96 | Special order, ships in 7-14 days |
| 22 | 12637801 | Ferrari Washer - 12637801 | $0.19 | Available, ships in 3-6 days |
| 23 | 320389 | Ferrari Part Search Results - 320389 | $183.56 | Special order, ships in 7-14 days |
| 23 | 320390 | Ferrari Part Search Results - 320390 | $173.76 | Special order, ships in 7-14 days |
| 24 | 16284934 | Ferrari Screw - 16284934 | $1.61 | Available, ships in 3-6 days |
| 24 | 16284927 | Ferrari Screw 5x10 - 16284927 | Superseded | Order 16284934 instead |
| 25 | 319020 | Ferrari LH Duct Mounting Bracket - 319020 | $44.29 | Special order, ships in 7-14 days |
| 25 | 319019 | Ferrari RH Duct Mounting Bracket - 319019 | $44.29 | Special order, ships in 7-14 days |
| 26 | 14040614 | Ferrari Flanged Nut 6mm - 14040614 | $0.27 | Available, ships in 3-6 days |
| 27 | 324304 | Ferrari LH Intake Duct Sleeve - 324304 | $320.06 | Special order, ships in 7-14 days |
| 27 | 322660 | Ferrari RH Intake Duct Sleeve - 322660 | $199.41 | Special order, ships in 7-14 days |
| 28 | 296785 | Ferrari Hose Clamp 60 to 80mm - 296785 | $24.05 | Available, ships in 3-6 days |
| 29 | 325567 | Ferrari LH Turbo Duct Complete - 325567 | $615.54 | Special order, ships in 7-14 days |
| 29 | 325566 | Ferrari RH Turbo Duct Complete - 325566 | $837.14 | Special order, ships in 7-14 days |
| 30 | 125521 | Ferrari/Maserati Oil Tank O-Ring - 125521 | $13.20 | In stock |
| 31 | 231619 | Ferrari Screw M6 x 22 - 231619 | $0.54 | Available, ships in 3-6 days |
| 32 | 792803 | Ferrari Cosmetic Mesh Trim - 792803 | $636.39 | Special order, ships in 7-14 days |
