Ferrari 488 Pista — [MECHANICAL SYSTEM] - D.04.02 - INTERCOOLER (diagram 0052)

Exploded view of the [mechanical system] - d.04.02 - intercooler on the Ferrari 488 Pista, with 73 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

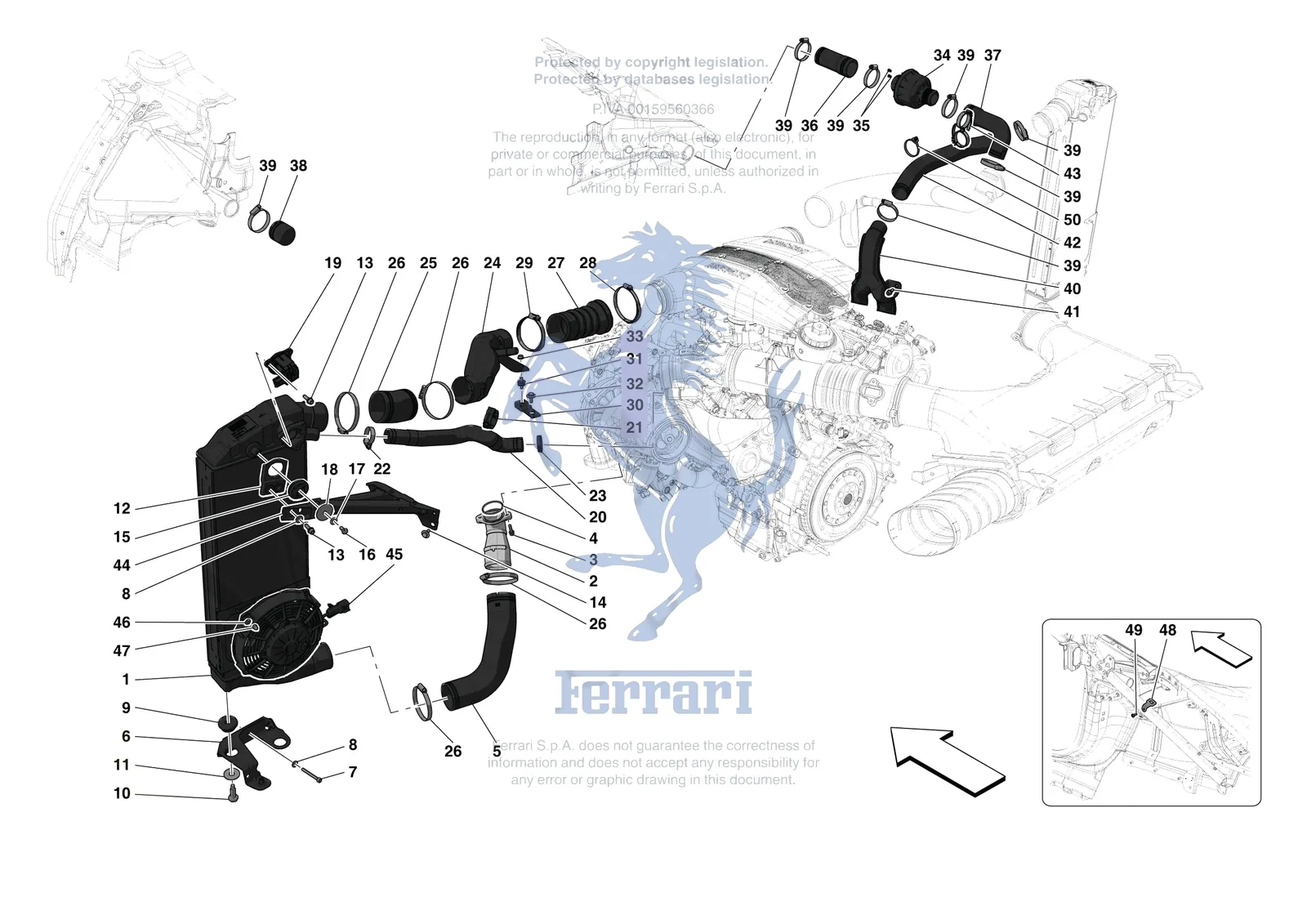

Ferrari 488 Pista [MECHANICAL SYSTEM] - D.04.02 - INTERCOOLER exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
14304821Ferrari Allen Screw 6x55 - 14304821SupersededOrder 14304824 instead
10902411Ferrari Bolt - 10902411SupersededOrder 10902024 instead
297575Ferrari Collar - 297575SupersededOrder 311609 instead
318050Ferrari LH Coil Cooling Pipe - 318050SupersededOrder 325077 instead
14054042Ferrari Nut - 14054042SupersededOrder 168698 instead
14054048Ferrari Nut - 14054048SupersededOrder 168698 instead
318049Ferrari RH Coil Cooling Pipe - 318049SupersededOrder 325076 instead
14432221Ferrari Screw - 14432221SupersededOrder 231619 instead
14433121Ferrari Screw - 14433121SupersededOrder 231617 instead
10902011Ferrari Screw 6x12 - 10902011$13.69Available, ships in 3-6 days
14432224Ferrari Screw M6 x 22 - 14432224SupersededOrder 231619 instead
1748562Ferrari LH Intercooler - 748562$2,886.68Special order, ships in 7-14 days
1748559Ferrari RH Intercooler - 748559$2,886.68Special order, ships in 7-14 days
2317449Ferrari LH Hose Connector With Flange - 317449$369.30Special order, ships in 7-14 days
2317448Ferrari RH Hose Connector With Flange - 317448$369.30Special order, ships in 7-14 days
3231619Ferrari Screw M6 x 22 - 231619$0.54Available, ships in 3-6 days
4132829Ferrari O-Ring - 132829$1.93Available, ships in 3-6 days
5762211Ferrari LH Hose Connection From Turb - 762211$1,378.85Special order, ships in 7-14 days
5762210Ferrari RH Hose Connection From Turb - 762210$1,378.85Special order, ships in 7-14 days
6794444Ferrari RH Lower Fastener Bracket Fo - 794444$96.01Special order, ships in 7-14 days
6794445Ferrari RH Lower Fastener Bracket Fo - 794445$91.08Special order, ships in 7-14 days
714304824Ferrari Allen Screw 6x55 - 14304824$0.50Available, ships in 3-6 days
812646624Ferrari Washer 6.15-15x1.5 - 12646624$0.40Available, ships in 3-6 days
9290935Ferrari Radiator Mounting Bush - 290935$12.67Available, ships in 3-6 days
10316040Ferrari Screw - 316040$10.04Special order, ships in 7-14 days
1113578801Ferrari Washer - 13578801$0.63Special order, ships in 7-14 days
12781216Ferrari Upper Intercooler Fastener Bracket - 781216$39.37Special order, ships in 7-14 days
13231618Ferrari Allen Head Screw M6x20 TCEI - 231618$0.57Available, ships in 3-6 days
1481591700Ferrari Screw TE M6 x 18 with washer - 81591700$4.12Available, ships in 3-6 days
15290938Ferrari Intercooler Fastener Rubber Bush - 290938$16.96Special order, ships in 7-14 days
1610902024Ferrari Screw M6 x 12 - 10902024$0.12Available, ships in 3-6 days
1712620474Ferrari Wavy Washer - 12620474$0.12Available, ships in 3-6 days
1866121400Ferrari Spacer - 66121400$20.34Available, ships in 3-6 days
19315495Ferrari Dump-Valve - 315495$295.03Available, ships in 3-6 days
20337911Ferrari Rubber Pipe For LH Dump Valvee - 337911$147.72Special order, ships in 7-14 days
20337910Ferrari Rubber Pipe For RH Dump Valve - 337910$83.68Special order, ships in 7-14 days
21310150Ferrari Clip - 310150$3.03Special order, ships in 7-14 days
22178053Ferrari Clip - 178053$2.64In stock
22296779Ferrari Hose Clamp 20 to 32mm - 296779SupersededOrder 178053 instead
23224271Ferrari Clip D.29.9-3 - 224271$3.03Available, ships in 3-6 days
24814108Ferrari LH Pipe From Intercooler To Throttle Body - 814108$1,181.86Special order, ships in 7-14 days
24761298Ferrari RH Pipe From Intercooler To - 761298$1,174.90Special order, ships in 7-14 days
25337903Ferrari Hose Union - 337903$142.79Special order, ships in 7-14 days
26296785Ferrari Hose Clamp 60 to 80mm - 296785$24.05Available, ships in 3-6 days
27318185Ferrari Connector Hose On Throttle Body - 318185$418.56Special order, ships in 7-14 days
28303232Ferrari Collar - 303232$10.04Available, ships in 3-6 days
28908630Ferrari Collar - 908630$10.93Special order, ships in 7-14 days
29311609Ferrari Collar - 311609$6.10Special order, ships in 7-14 days
30775075Ferrari High Pressure Pipe Adjuster - 775075SupersededOrder 897058 instead
30897058Ferrari High Pressure Pipe Adjuster - 897058$34.44Special order, ships in 7-14 days
30328222Ferrari High Pressure Pipe Adjuster Bracket - 328222$31.80Special order, ships in 7-14 days
31225408Ferrari Cylindrical Bushing - 225408$12.99Special order, ships in 7-14 days
3281290900Ferrari Screw With Double Washer - 81290900$1.42In stock
3314040614Ferrari Flanged Nut 6mm - 14040614$0.27Available, ships in 3-6 days
34310096Ferrari Sound Generator - 310096$417.97Special order, ships in 7-14 days
35314100Ferrari Rivet - 314100$0.96Special order, ships in 7-14 days
36314129Ferrari Pipe From Resonator To Quarterlight - 314129$73.41Special order, ships in 7-14 days
37337909Ferrari Pipe From Intake Duct To Qua - 337909$144.38Special order, ships in 7-14 days
38814761Ferrari Plug - 814761$39.14Special order, ships in 7-14 days
39296782Ferrari Hose Clamp 32-50mm - 296782$17.67Available, ships in 3-6 days
40325077Ferrari LH Coil Cooling Pipe - 325077$98.46Special order, ships in 7-14 days
40325076Ferrari RH Coil Cooling Pipe - 325076$98.46Special order, ships in 7-14 days
41231617Ferrari Screw M6 x 18 TCEI - 231617SupersededOrder 14433124 instead
42316687Ferrari Coiled Pipe - 316687$237.40Special order, ships in 7-14 days
43316793Ferrari Double Clamp D.40/50 - 316793$3.89Special order, ships in 7-14 days
44772080Ferrari Upper LH Trellis - 772080$233.89Special order, ships in 7-14 days
44772069Ferrari Upper RH Trellis - 772069$233.89Special order, ships in 7-14 days
45319950Ferrari Electric Fan For Intercooler - 319950$664.78Special order, ships in 7-14 days
4614446624Ferrari Washer - 14446624$0.13Available, ships in 3-6 days
47168698Ferrari Nut M5 x 11 - 168698$3.68Available, ships in 3-6 days
48320192Ferrari Oxygen Sensor Connector Fastener Bracket - 320192$18.82Special order, ships in 7-14 days
4985629300Ferrari Screw M6 x 20 - 85629300$1.17Available, ships in 3-6 days
50217854Ferrari CLAMP - 217854$0.52Available, ships in 3-6 days
