Ferrari 488 Pista — [MECHANICAL SYSTEM] - D.08.01 - EXHAUST SYSTEM - FRONT SECTION (diagram 0056)

Exploded view of the [mechanical system] - d.08.01 - exhaust system - front section on the Ferrari 488 Pista, with 64 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

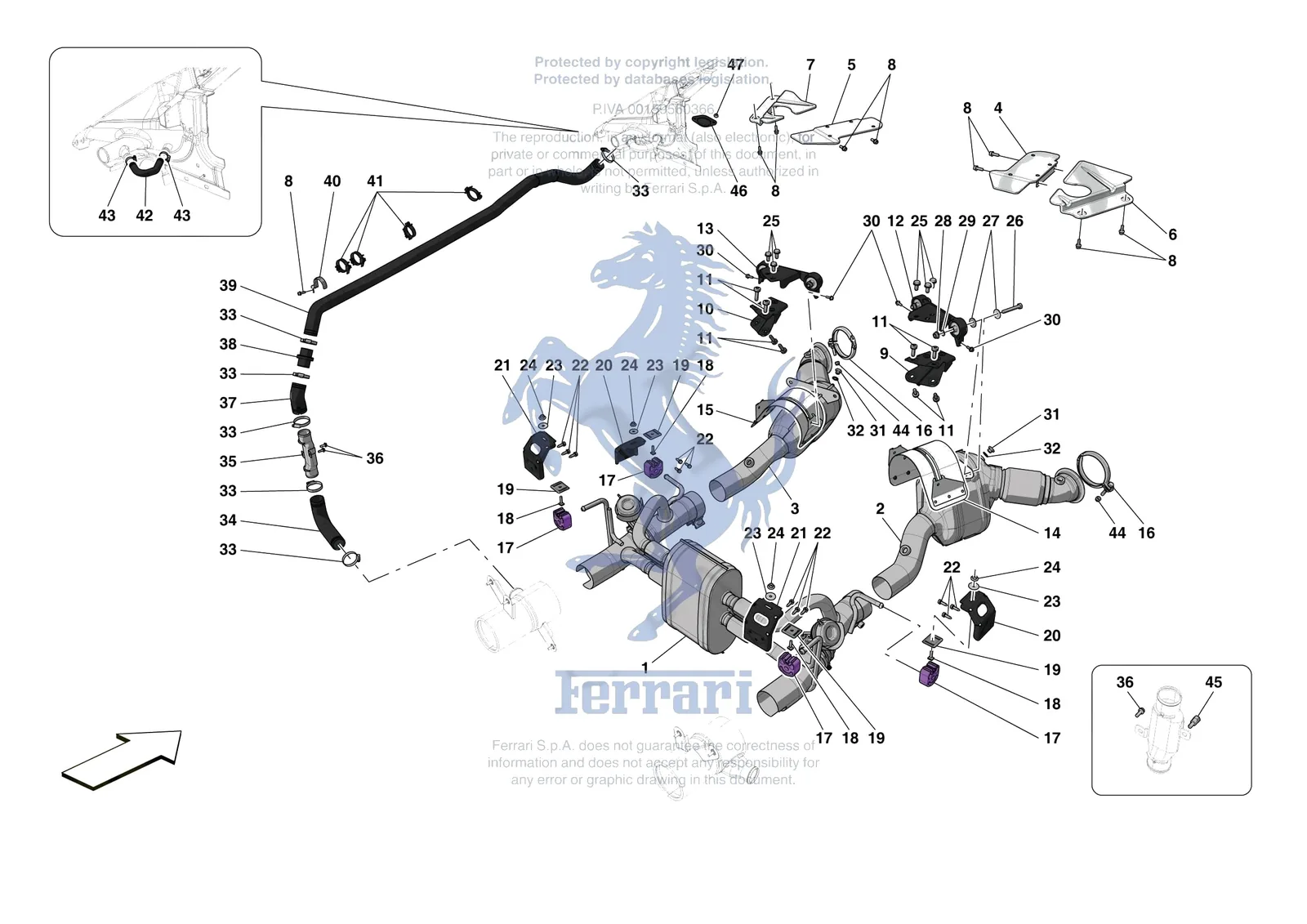

Ferrari 488 Pista [MECHANICAL SYSTEM] - D.08.01 - EXHAUST SYSTEM - FRONT SECTION exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
13046011Ferrari Flanged Nut - 13046011$0.73Available, ships in 3-6 days
15896214Ferrari Nut M6 x 5 - 15896214SupersededOrder 14039614 instead
14433121Ferrari Screw - 14433121SupersededOrder 231617 instead
260007Ferrari Stud Bolt 6X24 H45M6X10 H1 - 260007$15.39Special order, ships in 7-14 days
10615670Ferrari Washer - 10615670SupersededOrder 12601374 instead
10615671Ferrari Washer - 10615671SupersededOrder 12601374 instead
10615674Ferrari Washer - 10615674SupersededOrder 12601374 instead
10615679Ferrari Washer - 10615679SupersededOrder 12601374 instead
12601370Ferrari Washer - 12601370SupersededOrder 12601374 instead
12601379Ferrari Washer - 12601379SupersededOrder 12601374 instead
13578311Ferrari Washer - 13578311SupersededOrder 13578324 instead
1LA0319AKITFerrari - Larini ActiValve 'Remote' Exhaust Kit - LA0319AKIT$484.40In stock
1LA0266GT2AFerrari 488 Pista (+Challenge) - Larini 'GT2' Muffler Assembly w/ ActiValve- LA0266GT2A$7,823.63In stock
1LA0069GT3Ferrari 488 Pista (+Challenge) - Larini 'GT3' Muffler Assembly - LA0069GT3$6,557.68In stock
1LA7899RACEPFerrari 488 Pista (+Challenge) - Larini 'Race' Exhaust Pipes - LA7899RACEP$2,552.25In stock
2321608Ferrari RH Catalytic Converter Complete - 321608$11,504.51Special order, ships in 7-14 days
3321609Ferrari LH Catalytic Converter Complete - 321609$11,504.51Special order, ships in 7-14 days
4319368Ferrari RH Catalytic Converter Heat Shield - 319368$123.09Special order, ships in 7-14 days
5319369Ferrari LH Catalytic Converter Heat Shield - 319369$123.09Special order, ships in 7-14 days
6319366Ferrari RH Chassis Turbo Heat Shield - 319366$96.01Special order, ships in 7-14 days
7319367Ferrari LH Chassis Turbo Heat Shield - 319367$95.43Special order, ships in 7-14 days
7962333Ferrari Riparo Calore Turbo A Telaio - 962333$103.38Special order, ships in 7-14 days
8231617Ferrari Screw M6 x 18 TCEI - 231617SupersededOrder 14433124 instead
9300595Ferrari RH Catalytic Converter Bracket - 300595$155.10Special order, ships in 7-14 days
10300596Ferrari LH Catalytic Converter Bracket - 300596$155.10Special order, ships in 7-14 days
11216575Ferrari Screw - 216575$2.13Available, ships in 3-6 days
12813573Ferrari RH Bracket Compl. With Bushe - 813573$367.14Special order, ships in 7-14 days
13813574Ferrari LH Bracket Compl. With Bushe - 813574$367.14Special order, ships in 7-14 days
14320008Ferrari RH Catalytic Converter Shield - 320008$215.38Special order, ships in 7-14 days
15320009Ferrari LH Catalytic Converter Shield - 320009$215.38Special order, ships in 7-14 days
16324642Ferrari Ring Clamp - 324642$74.39Available, ships in 3-6 days
17239798Ferrari Rubber Exhaust Mount - 239798$112.88In stock
18283425Ferrari Screw Squared Head 6x18.5 - 283425$4.79Available, ships in 3-6 days
19240598Ferrari Bracket Plate - 240598$21.60Available, ships in 3-6 days
20303052Ferrari Silencer Mounting Bracket - 303052$107.68Available, ships in 3-6 days
21304317Ferrari Silencer Mounting Bracket - 304317$66.07Special order, ships in 7-14 days
2211585024Ferrari Screw 6X20 - 11585024$0.63Available, ships in 3-6 days
2312648978Ferrari Washer - 12648978$1.04Available, ships in 3-6 days
2414039614Ferrari NUT - 14039614$0.40Available, ships in 3-6 days
2511627826Ferrari Screw 8X18 - 11627826$1.92Available, ships in 3-6 days
2616044321Ferrari Screw M8 x 55 - 16044321$1.05Available, ships in 3-6 days
2713578324Ferrari Washer 8.15-24x 2 - 13578324$0.44Available, ships in 3-6 days
2814059311Ferrari NUT - 14059311$0.52Available, ships in 3-6 days
2912601374Ferrari Wavy Washer 8mm - 12601374$3.12Available, ships in 3-6 days
30256323Ferrari Screw 5x16 - 256323$0.98Available, ships in 3-6 days
31110860Ferrari Manifold Blanking Plug - 110860$25.09Available, ships in 3-6 days
3210298460Ferrari Washer - 10298460$1.10In stock
33296782Ferrari Hose Clamp 32-50mm - 296782$17.67Available, ships in 3-6 days
34789151Ferrari Connector Hose From Tailpipe - 789151$124.81Special order, ships in 7-14 days
35803140Ferrari Rear Rigid Pipe On Rear Cros - 803140$440.56Special order, ships in 7-14 days
3611625824Ferrari Screw 6x18 - 11625824$0.71Available, ships in 3-6 days
37785295Ferrari Preformed Hose - 785295$78.30Special order, ships in 7-14 days
38786536Ferrari Membrane Holder Pipe - 786536$145.03Special order, ships in 7-14 days
39807810Ferrari Coil Pipe Compl. With Clamps - 807810$758.79Special order, ships in 7-14 days
40785344Ferrari LH Bracket - 785344$39.14Special order, ships in 7-14 days
40785341Ferrari RH Bracket - 785341$39.14Special order, ships in 7-14 days
41292206Ferrari Pipe Retainer Clip - 292206$1.80Special order, ships in 7-14 days
42792961Ferrari Connector Hose On Quarterlig - 792961$44.03Special order, ships in 7-14 days
43178053Ferrari Clip - 178053$2.64In stock
43296779Ferrari Hose Clamp 20 to 32mm - 296779SupersededOrder 178053 instead
44292945Ferrari Nut M8 x 1.25 - 292945$28.39Special order, ships in 7-14 days
45232777Ferrari Stud Bolt M6x1 H15.5 M6 - 232777$14.99Special order, ships in 7-14 days
46786246Ferrari Frame With Membrane - 786246$119.91Special order, ships in 7-14 days
4714040514Ferrari Flanged Nut - 14040514SupersededOrder 13046011 instead
