Ferrari 488 Pista — [MECHANICAL SYSTEM] - D.22 - BRAKE MASTER CYLINDER RESERVOIR (diagram 0071)

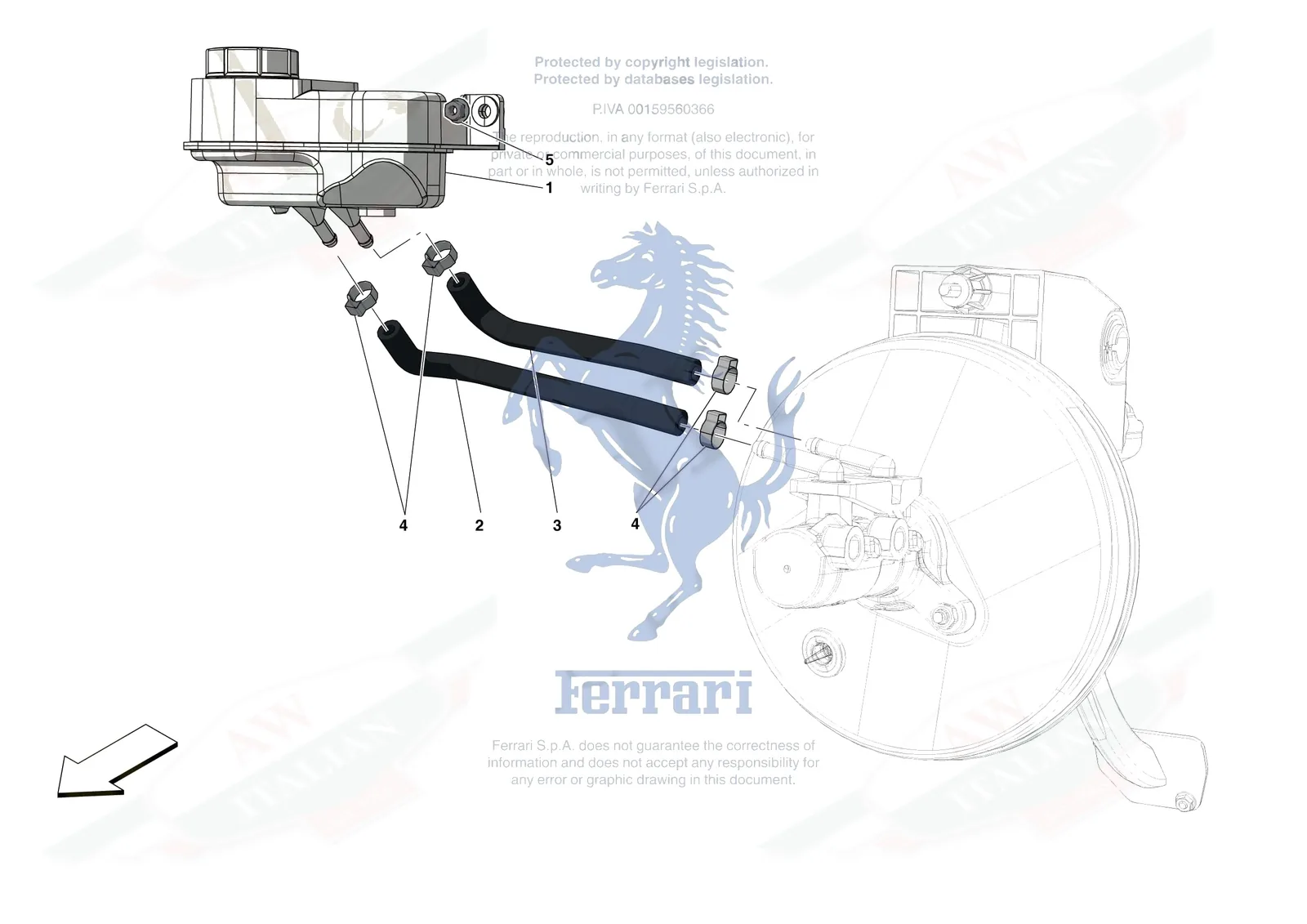

Exploded view of the [mechanical system] - d.22 - brake master cylinder reservoir on the Ferrari 488 Pista, with 10 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari 488 Pista [MECHANICAL SYSTEM] - D.22 - BRAKE MASTER CYLINDER RESERVOIR exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/488-pista/0071.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 259047 | Ferrari 458/488/812/F12 Brake Fluid Reservoir - 259047 | $67.78 | In stock |
| 1 | 743123 | Ferrari Tank - 743123 | Superseded | Order 956114 instead |
| 1 | 956114 | Ferrari Tank - 956114 | $128.01 | Special order, ships in 7-14 days |
| 1 | 957609 | Ferrari Tank - 957609 | Superseded | Order 956114 instead |
| 2 | 238606 | Ferrari Rubber Pipe LHD - 238606 | $39.37 | Special order, ships in 7-14 days |
| 2 | 262569 | Ferrari Rubber Pipe RHD - 262569 | $120.62 | Special order, ships in 7-14 days |
| 3 | 238607 | Ferrari Rubber Pipe LHD - 238607 | $34.44 | Special order, ships in 7-14 days |
| 3 | 262570 | Ferrari Rubber Pipe RHD - 262570 | $120.62 | Special order, ships in 7-14 days |
| 4 | 13432070 | Ferrari/Maserati Screw Collar / Hose Clamp - 13432070 | $0.95 | In stock |
| 5 | 14040611 | Ferrari Nut M6 - 14040611 | $0.57 | Available, ships in 3-6 days |
