Ferrari 488 Pista — [MECHANICAL SYSTEM] - D.25.01 - FRONT SUSPENSION - SHOCK ABSORBERS (diagram 0075)

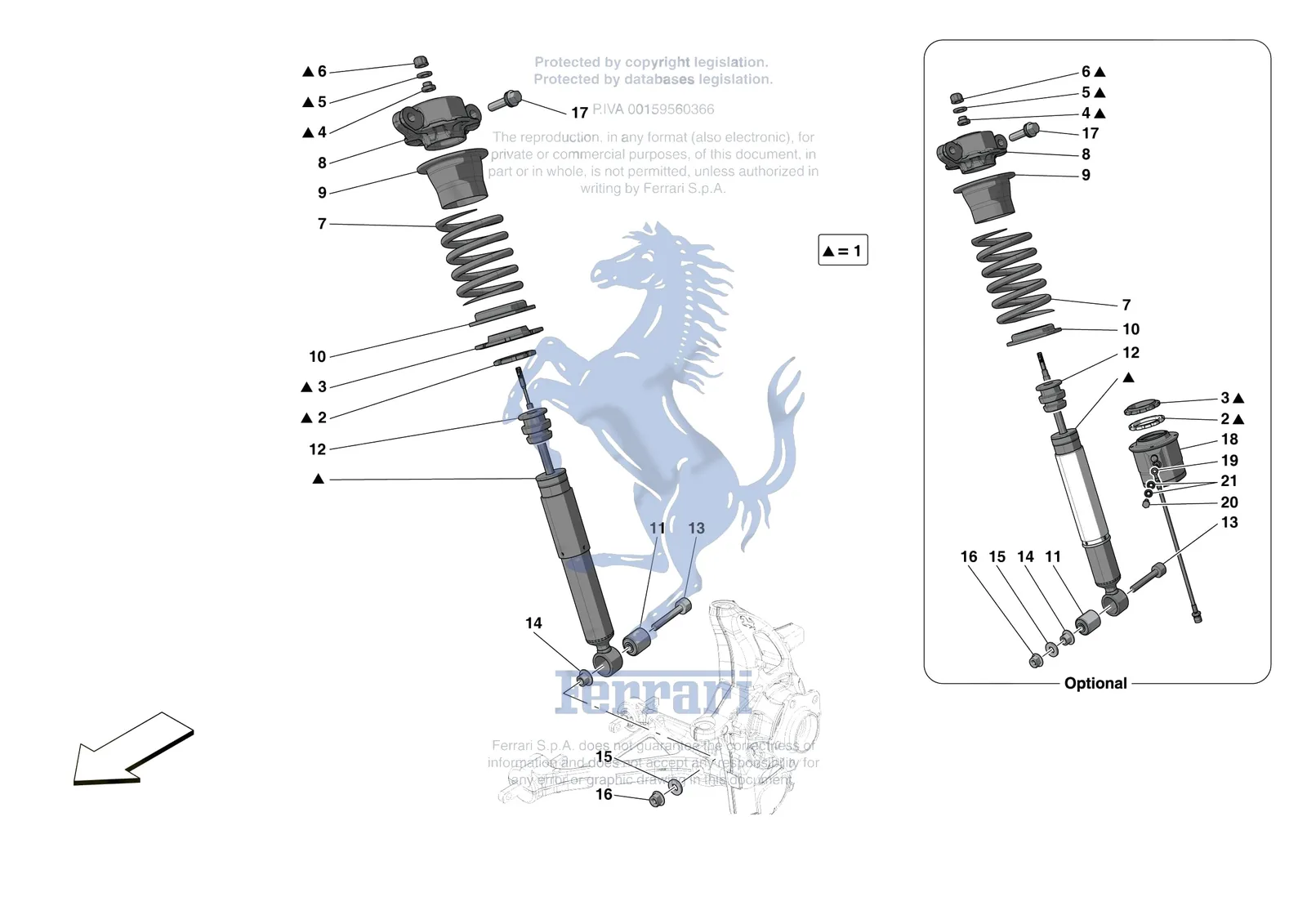

Exploded view of the [mechanical system] - d.25.01 - front suspension - shock absorbers on the Ferrari 488 Pista, with 26 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari 488 Pista [MECHANICAL SYSTEM] - D.25.01 - FRONT SUSPENSION - SHOCK ABSORBERS exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/488-pista/0075.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 749878 | Ferrari Nut - 749878 | Superseded | Order 220378 instead | |
| 1 | 338434 | Ferrari Front Shock Absorber - 338434 | $2,422.10 | Special order, ships in 7-14 days |
| 1 | 340843 | Ferrari Front Shock Absorber - 340843 | $3,098.15 | Special order, ships in 7-14 days |
| 2 | 220351 | Ferrari Ring Nut - 220351 | $88.61 | Special order, ships in 7-14 days |
| 2 | 263196 | Ferrari Ring Nut - 263196 | $295.43 | Available, ships in 3-6 days |
| 3 | 263195 | Ferrari Spring Retainer - 263195 | $270.83 | Special order, ships in 7-14 days |
| 3 | 286402 | Ferrari Spring Retainer Platform - 286402 | $270.83 | Special order, ships in 7-14 days |
| 4 | 220383 | Ferrari Bush - 220383 | $66.35 | Available, ships in 3-6 days |
| 5 | 220377 | Ferrari Washer D.12.1 - 24 X 3 - 220377 | $14.84 | Special order, ships in 7-14 days |
| 6 | 220378 | Ferrari Nut M12 - 220378 | $9.16 | Special order, ships in 7-14 days |
| 7 | 338429 | Ferrari Front Suspension Spring - 338429 | $178.65 | Special order, ships in 7-14 days |
| 7 | 342152 | Ferrari Front Suspension Spring - 342152 | $293.71 | Special order, ships in 7-14 days |
| 8 | 250394 | Ferrari 458/F12/California Shock Upper Stop Cap - 250394 | $456.70 | In stock |
| 9 | 293621 | Ferrari Spring Support Pad - 293621 | $28.39 | Available, ships in 3-6 days |
| 10 | 188996 | Ferrari Spring Support Pad - 188996 | $23.57 | Available, ships in 3-6 days |
| 11 | 157630 | Ferrari Front and Rear Shock Bushing PREKOM - 157630 | $87.45 | In stock |
| 12 | 267936 | Ferrari Endstop Bush - 267936 | $66.45 | Available, ships in 3-6 days |
| 13 | 237297 | Ferrari Screw TCEI M12 x 1.25 x 8 - 237297 | $58.98 | Special order, ships in 7-14 days |
| 14 | 237821 | Ferrari Bushing 18x15 - 237821 | $9.16 | Available, ships in 3-6 days |
| 15 | 12646921 | Ferrari Washer - 12646921 | $0.92 | Available, ships in 3-6 days |
| 16 | 255271 | Ferrari Nut M12 x 1.25 x - 255271 | $2.59 | Available, ships in 3-6 days |
| 17 | 248790 | Ferrari Screw M12 x 1.25 x 50 - 248790 | $7.63 | Available, ships in 3-6 days |
| 18 | 300214 | Ferrari Actuator Complete - 300214 | $2,162.69 | Special order, ships in 7-14 days |
| 19 | 260409 | Ferrari Hose For Vehicle Lift - 260409 | $467.80 | Special order, ships in 7-14 days |
| 20 | 261587 | Ferrari Union - 261587 | $49.14 | Special order, ships in 7-14 days |
| 21 | 259638 | Ferrari Gasket 8.7-14 - 259638 | $21.60 | Special order, ships in 7-14 days |
