Ferrari 488 Pista — [MECHANICAL SYSTEM] - D.25.03 - FRONT SUSPENSION - CALIPERS AND DISCS (diagram 0077)

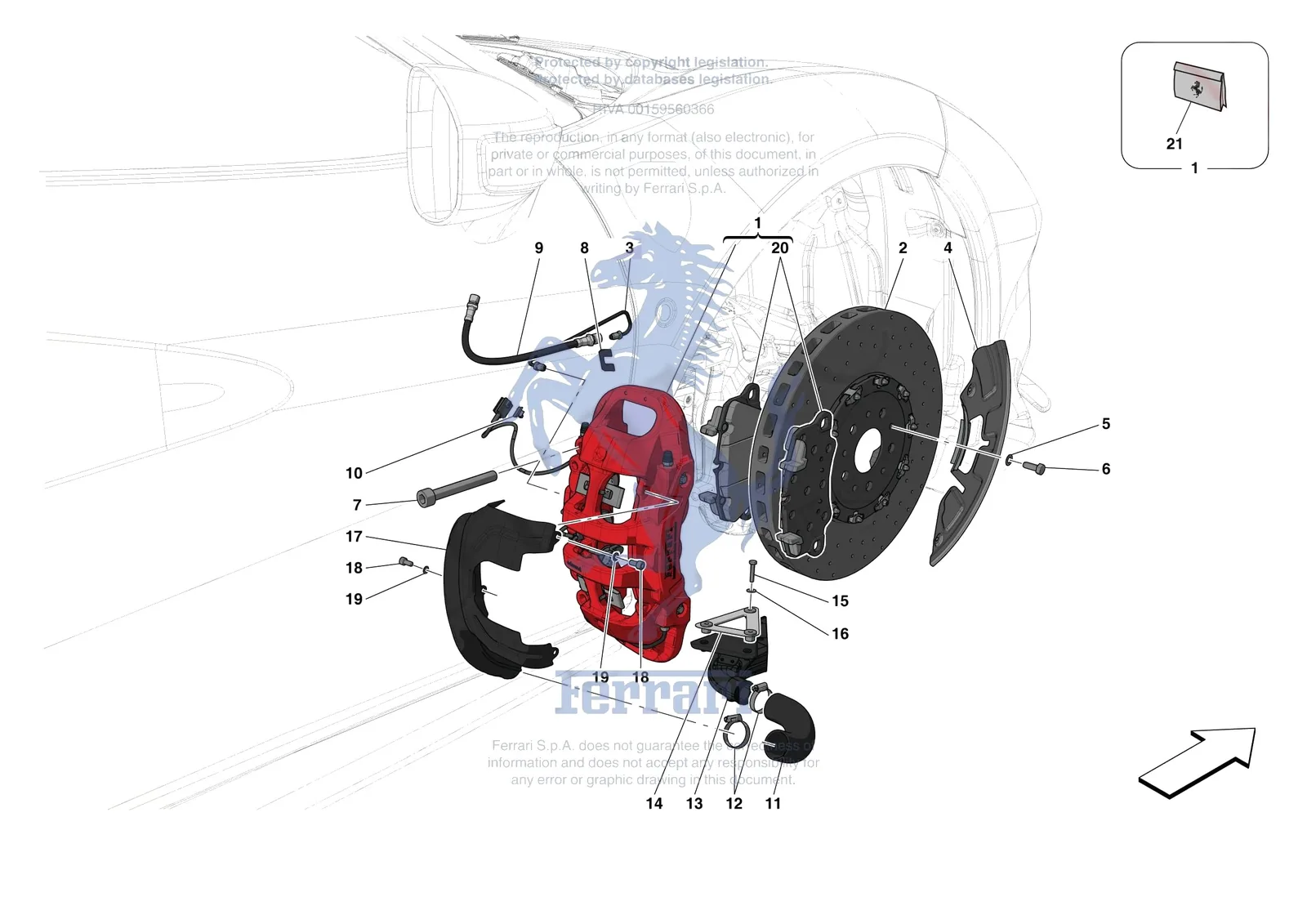

Exploded view of the [mechanical system] - d.25.03 - front suspension - calipers and discs on the Ferrari 488 Pista, with 49 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

Ferrari 488 Pista [MECHANICAL SYSTEM] - D.25.03 - FRONT SUSPENSION - CALIPERS AND DISCS exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
12486580Ferrari Botton - 12486580SupersededOrder 204781 instead
116373Ferrari Brake Hose - 977802SupersededOrder 977802 instead
175871Ferrari Clip - 175871SupersededOrder 204781 instead
323365Ferrari Connector Fastener Clip - 323365SupersededOrder 204781 instead
1338888Ferrari Front LH Calliper With Pads - 338888$6,543.08Special order, ships in 7-14 days
1785604Ferrari Front LH Calliper With Pads - 785604$6,697.33Special order, ships in 7-14 days
1785609Ferrari Front LH Calliper With Pads - 785609$6,830.74Special order, ships in 7-14 days
1785610Ferrari Front LH Calliper With Pads - 785610$7,012.08Special order, ships in 7-14 days
1785611Ferrari Front LH Calliper With Pads - 785611$7,012.08Special order, ships in 7-14 days
1785788Ferrari Front LH Calliper With Pads - 785788$7,579.07Special order, ships in 7-14 days
1785813Ferrari Front LH Calliper With Pads - 785813$7,012.08Special order, ships in 7-14 days
1785814Ferrari Front LH Calliper With Pads - 785814$7,579.07Special order, ships in 7-14 days
1785817Ferrari Front LH Calliper With Pads - 785817$7,012.08Special order, ships in 7-14 days
1338889Ferrari Front RH Calliper With Pads - 338889$6,543.08Special order, ships in 7-14 days
1785827Ferrari Front RH Calliper With Pads - 785827$6,697.33Special order, ships in 7-14 days
1785828Ferrari Front RH Calliper With Pads - 785828$6,830.74Special order, ships in 7-14 days
1785829Ferrari Front RH Calliper With Pads - 785829$7,012.08Special order, ships in 7-14 days
1785830Ferrari Front RH Calliper With Pads - 785830$7,012.08Special order, ships in 7-14 days
1785831Ferrari Front RH Calliper With Pads - 785831$7,579.07Special order, ships in 7-14 days
1785832Ferrari Front RH Calliper With Pads - 785832$7,012.08Special order, ships in 7-14 days
1785833Ferrari Front RH Calliper With Pads - 785833$7,579.07Special order, ships in 7-14 days
1785834Ferrari Front RH Calliper With Pads - 785834$7,012.08Special order, ships in 7-14 days
2321910Ferrari Front Brake Disc 398X38 - 321910$6,859.29Available, ships in 3-6 days
3292473Ferrari LH Hose Front Brake Pipe From Caliper - 292473$344.21Special order, ships in 7-14 days
3292474Ferrari RH Hose Front Brake Pipe From Caliper - 292474$344.21Special order, ships in 7-14 days
4297322Ferrari LH Front Disc Shield - 297322$39.37Special order, ships in 7-14 days
4297323Ferrari RH Front Disc Shield - 297323$39.37Special order, ships in 7-14 days
5228132Ferrari Spring Washer - 228132$0.59Available, ships in 3-6 days
6228131Ferrari Screw M8 x 20 - 228131$1.53Available, ships in 3-6 days
7195167Ferrari Screw TCEI M12 x 1.5 x 95 - 195167$34.94Available, ships in 3-6 days
8326837Ferrari Clip - 326837$4.77Available, ships in 3-6 days
9977802Ferrari Flexible Brake Hose L 330mm - 977802$81.11Available, ships in 3-6 days
9271711Ferrari Front Flexible Tube 330mm - 271711SupersededOrder 977802 instead
10204781Ferrari Clip - 204781$1.67Available, ships in 3-6 days
11302698Ferrari Brake Air Pipe - 302698$172.10Special order, ships in 7-14 days
12296781Ferrari Hose Clamp - 296781$5.59In stock
12296780Ferrari Hose Clamp 25 to 40mm - 296780$17.02Special order, ships in 7-14 days
13303201Ferrari LH Brake Air Duct - 303201$590.91Special order, ships in 7-14 days
13303202Ferrari RH Brake Air Duct - 303202$590.91Special order, ships in 7-14 days
14303206Ferrari LH Duct Bracket - 303206$169.87Special order, ships in 7-14 days
14303207Ferrari RH Duct Bracket - 303207$169.87Special order, ships in 7-14 days
1510902824Ferrari Screw M6 x 30 - 10902824$0.17Available, ships in 3-6 days
1611193274Ferrari Washer - 11193274$0.06Available, ships in 3-6 days
17306017Ferrari LH Front Caliper Housing Cover - 306017$1,468.65Special order, ships in 7-14 days
17306018Ferrari RH Front Caliper Housing Cover - 306018$1,468.65Special order, ships in 7-14 days
1814305187Ferrari Screw 6x12 - 14305187$0.77Available, ships in 3-6 days
1912648278Ferrari Washer 6 15-10X - 12648278$0.50Available, ships in 3-6 days
2070003826Ferrari 488/F8/F12 Front Brake Pad Set - 70003826$1,373.90In stock
2170003492Ferrari Front Brake Caliper Dust Seal Kit - 70003492$184.38Special order, ships in 7-14 days

All 488 Pista diagrams
