Ferrari 488 Pista — [MECHANICAL SYSTEM] - D.30.01 - STEERING WHEEL AND STEERING SYSTEM - STEERING COLUMN (diagram 0084)

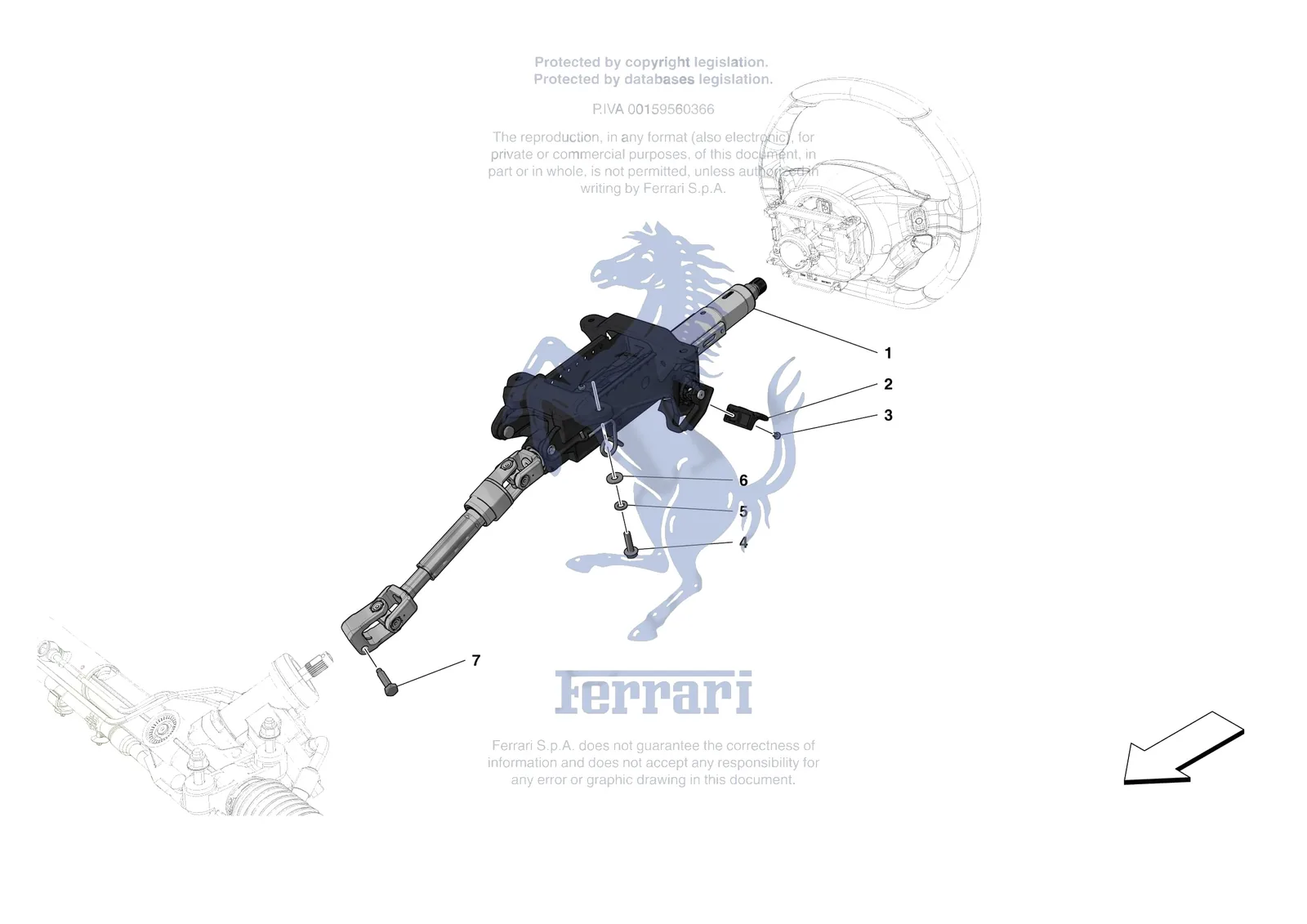

Exploded view of the [mechanical system] - d.30.01 - steering wheel and steering system - steering column on the Ferrari 488 Pista, with 9 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari 488 Pista [MECHANICAL SYSTEM] - D.30.01 - STEERING WHEEL AND STEERING SYSTEM - STEERING COLUMN exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/488-pista/0084.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 187006 | Ferrari Screw - 187006 | $1.36 | Special order, ships in 7-14 days | |
| 319126 | Ferrari Steering Column Complete - 319126 | Superseded | Order 325549 instead | |
| 1 | 325549 | Ferrari Steering Column Complete - 325549 | $2,715.50 | Special order, ships in 7-14 days |
| 2 | 313964 | Ferrari Adjustable Steering Wheel Lock Lever - 313964 | $17.42 | Special order, ships in 7-14 days |
| 3 | 13273977 | Ferrari Screw - 13273977 | $0.52 | Available, ships in 3-6 days |
| 4 | 16287321 | Ferrari Screw - 16287321 | $0.40 | Available, ships in 3-6 days |
| 5 | 11194074 | Ferrari Washer 8.6-16x1.9 - 11194074 | $0.08 | Available, ships in 3-6 days |
| 6 | 12646701 | Ferrari Washer D. 8.45 - 20 x 2 - 12646701 | $0.17 | Available, ships in 3-6 days |
| 7 | 245173 | Ferrari Screw M8 - 245173 | $1.63 | Special order, ships in 7-14 days |
