Ferrari 488 Pista — [MECHANICAL SYSTEM] - D.30.02 - STEERING WHEEL AND STEERING SYSTEM - STEERING WHEEL AND AIRBAG (diagram 0085)

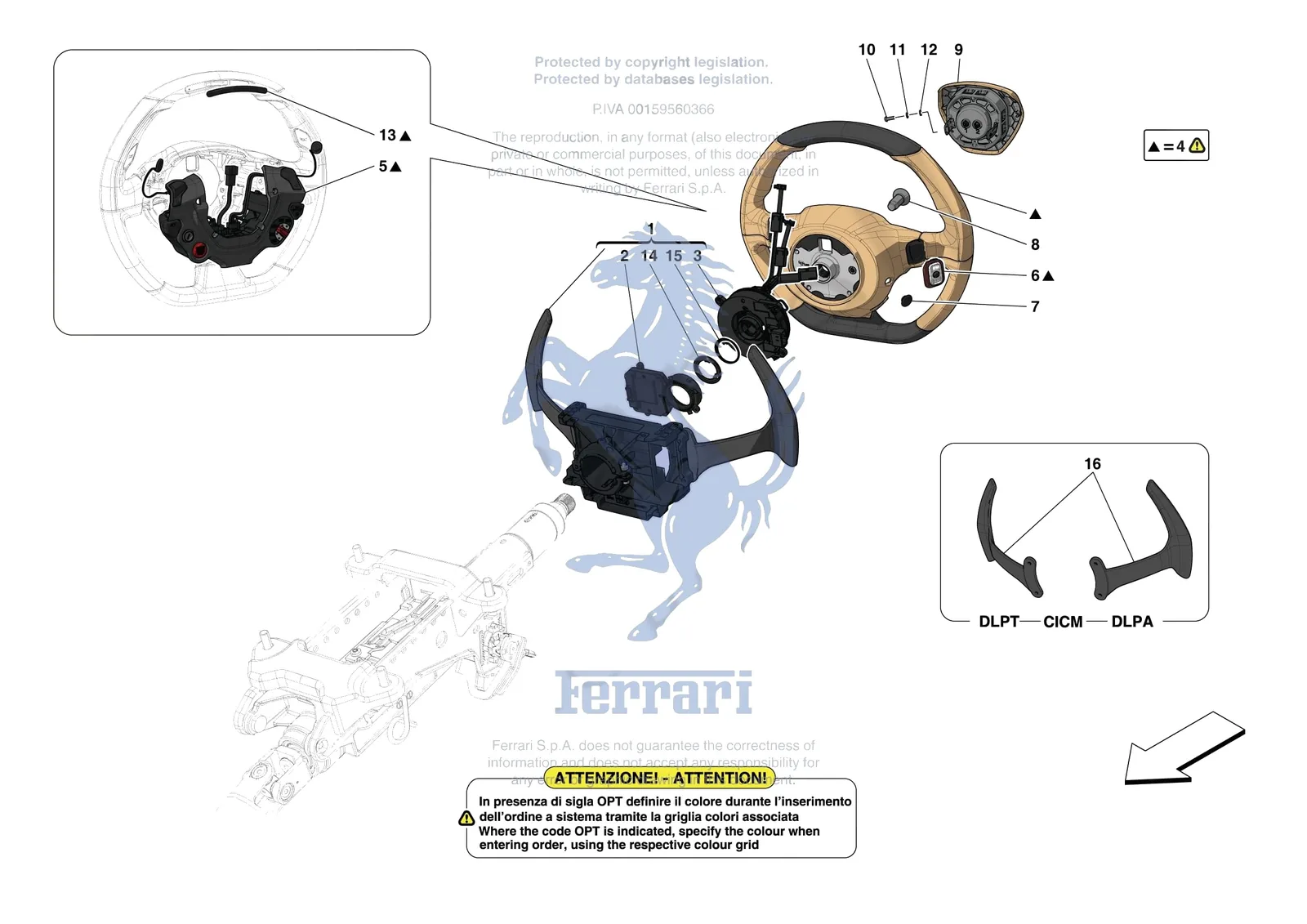

Exploded view of the [mechanical system] - d.30.02 - steering wheel and steering system - steering wheel and airbag on the Ferrari 488 Pista, with 32 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari 488 Pista [MECHANICAL SYSTEM] - D.30.02 - STEERING WHEEL AND STEERING SYSTEM - STEERING WHEEL AND AIRBAG exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/488-pista/0085.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 275398 | Ferrari Screw - 275398 | Superseded | Order 301723 instead | |
| 106850 | Ferrari Spring Washer 6mm - 106850 | Superseded | Order 127494 instead | |
| 10516470 | Ferrari Washer 6 R 4 - 10516470 | Superseded | Order 127494 instead | |
| 10516471 | Ferrari Washer - 10516471 | Superseded | Order 127494 instead | |
| 10516473 | Ferrari Washer - 10516473 | Superseded | Order 127494 instead | |
| 10516477 | Ferrari Washer - 10516477 | Superseded | Order 127494 instead | |
| 14499301 | Ferrari Washer - 14499301 | Superseded | Order 12643724 instead | |
| 1 | 821112 | Ferrari F1 Gearbox Control Set - 821112 | $6,790.80 | Special order, ships in 7-14 days |
| 1 | 821157 | Ferrari F1 Gearbox Control Set - 821157 | $6,310.58 | Special order, ships in 7-14 days |
| 2 | 309296 | Ferrari Steering Angle Sensor - 309296 | $371.53 | Special order, ships in 7-14 days |
| 3 | 280098 | Ferrari Clock Spring Connector - 280098 | $1,101.47 | Special order, ships in 7-14 days |
| 4 | 342280 | Ferrari Compl. Steering Wheel - 342280 | $20,563.44 | Contact us to order |
| 4 | 342281 | Ferrari Compl. Steering Wheel - 342281 | $20,563.44 | Contact us to order |
| 4 | 70006522 | Ferrari Compl. Steering Wheel - 70006522 | Price on request | Contact us for price and availability |
| 4 | 744033 | Ferrari Compl. Steering Wheel - 744033 | Price on request | Contact us for price and availability |
| 4 | 744036 | Ferrari Compl. Steering Wheel - 744036 | Superseded | Order 70006523 instead |
| 4 | 70006523 | Ferrari Compl. Steering Wheel Nit - 70006523 | $17,693.07 | Contact us to order |
| 5 | 743722 | Ferrari Compl. Controls - 743722 | $5,883.97 | Special order, ships in 7-14 days |
| 5 | 747733 | Ferrari Compl. Controls - 747733 | Price on request | Contact us for price and availability |
| 6 | 292879 | Ferrari LH Nit Button - 292879 | $1,762.38 | Special order, ships in 7-14 days |
| 6 | 291692 | Ferrari RH Nit Button - 291692 | $1,762.38 | Special order, ships in 7-14 days |
| 7 | 14506587 | Ferrari Rubber Grommet - 14506587 | $0.38 | Available, ships in 3-6 days |
| 8 | 301723 | Ferrari Screw - 301723 | $164.72 | Special order, ships in 7-14 days |
| 10 | 64882800 | Ferrari Screw 6x16 - 64882800 | $2.36 | Available, ships in 3-6 days |
| 11 | 127494 | Ferrari Lock Washer - 127494 | $0.50 | In stock |
| 12 | 14499324 | Ferrari Washer - 14499324 | Superseded | Order 12643724 instead |
| 12 | 12643724 | Ferrari/Maserati Washer - 12643724 | $0.20 | In stock |
| 13 | 214236 | Ferrari Led Plate For Steering Wheel - 214236 | $611.91 | Special order, ships in 7-14 days |
| 14 | 828381 | Ferrari Clock Spring Connector Lock - 828381 | $12.21 | Available, ships in 3-6 days |
| 15 | 828380 | Ferrari Clock Spring Connector Spring - 828380 | $3.26 | Available, ships in 3-6 days |
| 16 | 70006274 | Ferrari Cicm Off-Catalogue Shift Pad - 70006274 | $8,750.24 | Special order, ships in 7-14 days |
| 16 | 70006495 | Ferrari Off-Catalogue Gloss Carbon S - 70006495 | $11,047.72 | Contact us to order |
