Ferrari 488 Pista — [MECHANICAL SYSTEM] - D.37 - PLATES (diagram 0092)

Exploded view of the [mechanical system] - d.37 - plates on the Ferrari 488 Pista, with 56 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

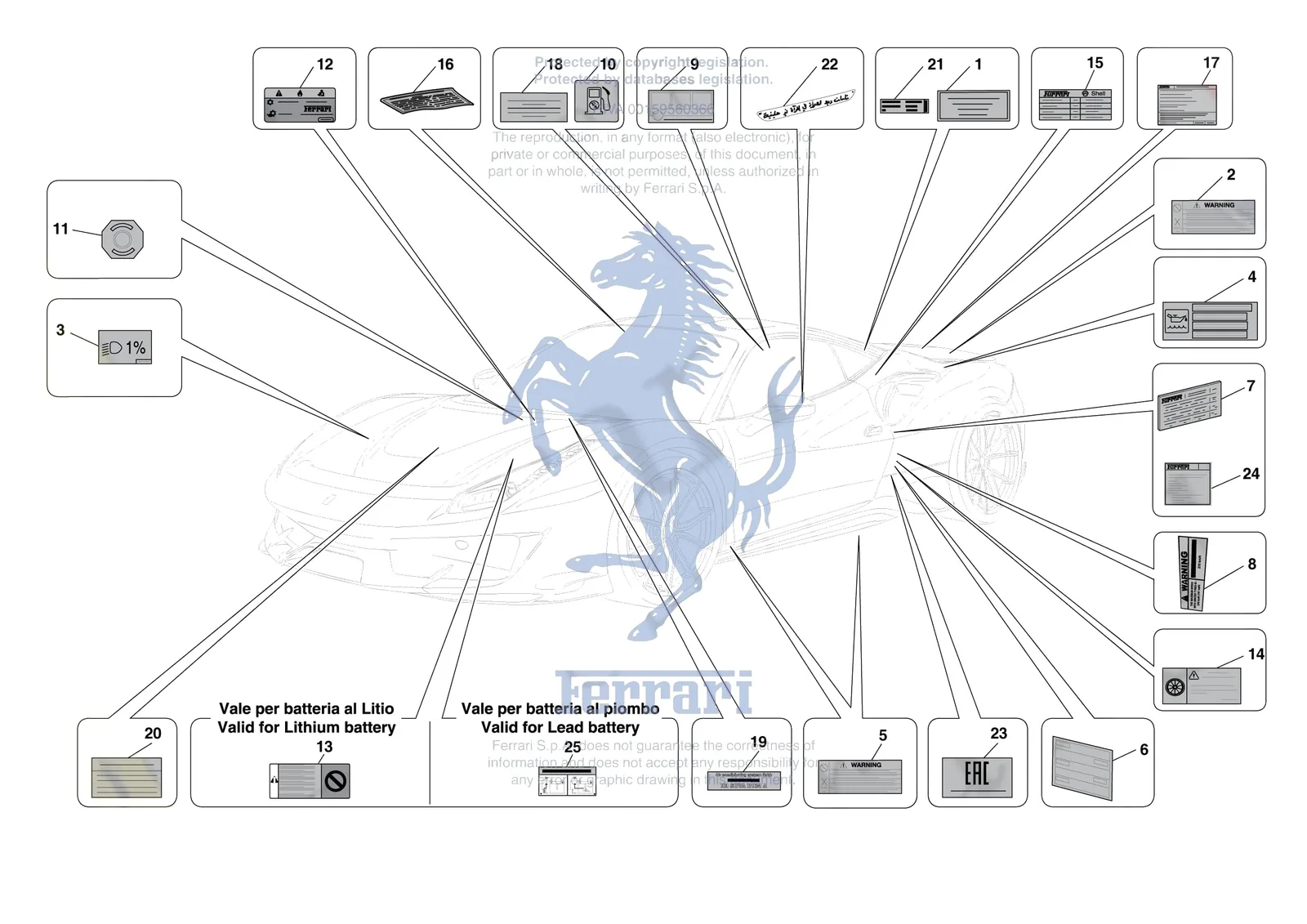

Ferrari 488 Pista [MECHANICAL SYSTEM] - D.37 - PLATES exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
255167Ferrari Engine Oil Check Label - 255167SupersededOrder 262089 instead
256569Ferrari Engine Oil Check Label - 256569SupersededOrder 262090 instead
258126Ferrari Engine Oil Check Label - 258126SupersededOrder 262089 instead
250436Ferrari Engine/Gearbox Oil Adhesive Label - 250436SupersededOrder 258125 instead
234909Ferrari Oil Level Check Plate - 234909$13.93Special order, ships in 7-14 days
245897Ferrari Oil Level Check Plate - 245897SupersededOrder 262090 instead
269475Ferrari Polyester S&S Warning Label - 269475SupersededOrder 281805 instead
295138Ferrari Polyester S&S Warning Label - 295138$22.50Special order, ships in 7-14 days
269267Ferrari S&S Warning Label - 269267SupersededOrder 281806 instead
295139Ferrari S&S Warning Label - 295139SupersededOrder 281806 instead
1258127Ferrari GlycoShell Radiator Antifreeze Label - 258127$11.85In stock
1297529Ferrari Radiator Contains Antifreeze Label - 297529$11.35Available, ships in 3-6 days
1305631Ferrari Radiator Contains Antifreeze Label - 305631$63.90Special order, ships in 7-14 days
2281805Ferrari Polyester S&S Warning Label - 281805$27.82Available, ships in 3-6 days
2305633Ferrari Polyester S&S Warning Label - 305633$159.79Special order, ships in 7-14 days
3180092Ferrari Low Beam Approval Label - 180092$1.84Available, ships in 3-6 days
4262089Ferrari Oil Level Check Plate - 262089$20.56Available, ships in 3-6 days
4262090Ferrari Oil Level Check Plate - 262090$120.46Special order, ships in 7-14 days
4306543Ferrari Oil Level Check Plate - 306543$213.88Special order, ships in 7-14 days
5281806Ferrari S&S Warning Label - 281806$51.62Special order, ships in 7-14 days
5305634Ferrari S&S Warning Label - 305634$149.96Special order, ships in 7-14 days
6194621Ferrari Tyre Pressure Warning Label - 194621$36.86Special order, ships in 7-14 days
6218182Ferrari Tyre Pressure Warning Label - 218182$110.61Special order, ships in 7-14 days
6305632Ferrari Tyre Pressure Warning Label - 305632$49.14Special order, ships in 7-14 days
7786156Ferrari Tyre Pressure Label 20 Tyre - 786156$5.37Special order, ships in 7-14 days
7789534Ferrari Tyre Pressure Label 20 Tyre - 789534$44.03Special order, ships in 7-14 days
7790175Ferrari Tyre Pressure Label 20 Tyre - 790175Price on requestContact us for price and availability
7790237Ferrari Tyre Pressure Label 20 Tyre - 790237$31.80Special order, ships in 7-14 days
8293457Ferrari Max Speed With Winter Tyres Label - 293457$29.48Special order, ships in 7-14 days
8305630Ferrari Max Speed With Winter Tyres Label - 305630$78.66Special order, ships in 7-14 days
9304914Ferrari Filling Procedure Instruction Label - 304914$14.47Special order, ships in 7-14 days
9308904Ferrari Filling Procedure Instruction Label - 308904Price on requestContact us for price and availability
9308953Ferrari Filling Procedure Instruction Label - 308953$58.98Special order, ships in 7-14 days
10829199Ferrari 'Fuels' Label - 829199$5.14Special order, ships in 7-14 days
1012858780Ferrari Adhesive Unleaded Petrol/Gasoline Label - 12858780$6.11Special order, ships in 7-14 days
11160889Ferrari Brake Fluid Reservoir Label - 160889$5.39Available, ships in 3-6 days
11980009Ferrari Targh. Adesiva Avvertenze Ol - 980009$20.62Special order, ships in 7-14 days
12789537Ferrari Refrigerant Gas Label - 789537$9.81Special order, ships in 7-14 days
13839567Ferrari Lithium Battery Label - 839567$22.85Special order, ships in 7-14 days
13839821Ferrari Lithium Battery Label - 839821$41.76Special order, ships in 7-14 days
14864689Ferrari Carbon Wheel Warning Label - 864689SupersededOrder 909197 instead
14909197Ferrari Carbon Wheel Warning Label - 909197$12.02Special order, ships in 7-14 days
15256570Ferrari Engine/Gearbox Oil Specifications Label - 256570$56.52Special order, ships in 7-14 days
15258125Ferrari Engine/Gearbox Oil Specifications Label - 258125$12.77Special order, ships in 7-14 days
15305635Ferrari Engine/Gearbox Oil Specifications Label - 305635$137.67Special order, ships in 7-14 days
1668893600Ferrari Adhesive Airbag Label - 68893600$16.37Special order, ships in 7-14 days
17838965Ferrari 50S Engine Spec Identificati - 838965$17.35Special order, ships in 7-14 days
17928236Ferrari 50S Engine Spec Identificati - 928236$17.35Special order, ships in 7-14 days
18768347Ferrari Fuel Indication Label - 768347$21.60Special order, ships in 7-14 days
19294454Ferrari Air Con System Label - 294454$49.14Special order, ships in 7-14 days
20217220Ferrari Adhesive Label - 217220$51.62Special order, ships in 7-14 days
21255003Ferrari Radiator Label - 255003$41.76Special order, ships in 7-14 days
2268960300Ferrari Driver Side Rear View Mirror label - 68960300$51.62Special order, ships in 7-14 days
23818190Ferrari Targhetta Eac - 818190$48.93Special order, ships in 7-14 days
24334592Ferrari Mercury Content Label - 334592Price on requestContact us for price and availability
25303010Ferrari Warning Label On Terminal Clamp - 303010$12.02Special order, ships in 7-14 days
