Ferrari 488 Pista — [VEHICLE TRIM] - E.02 - LATERAL OUTER BODYSHELL (diagram 0098)

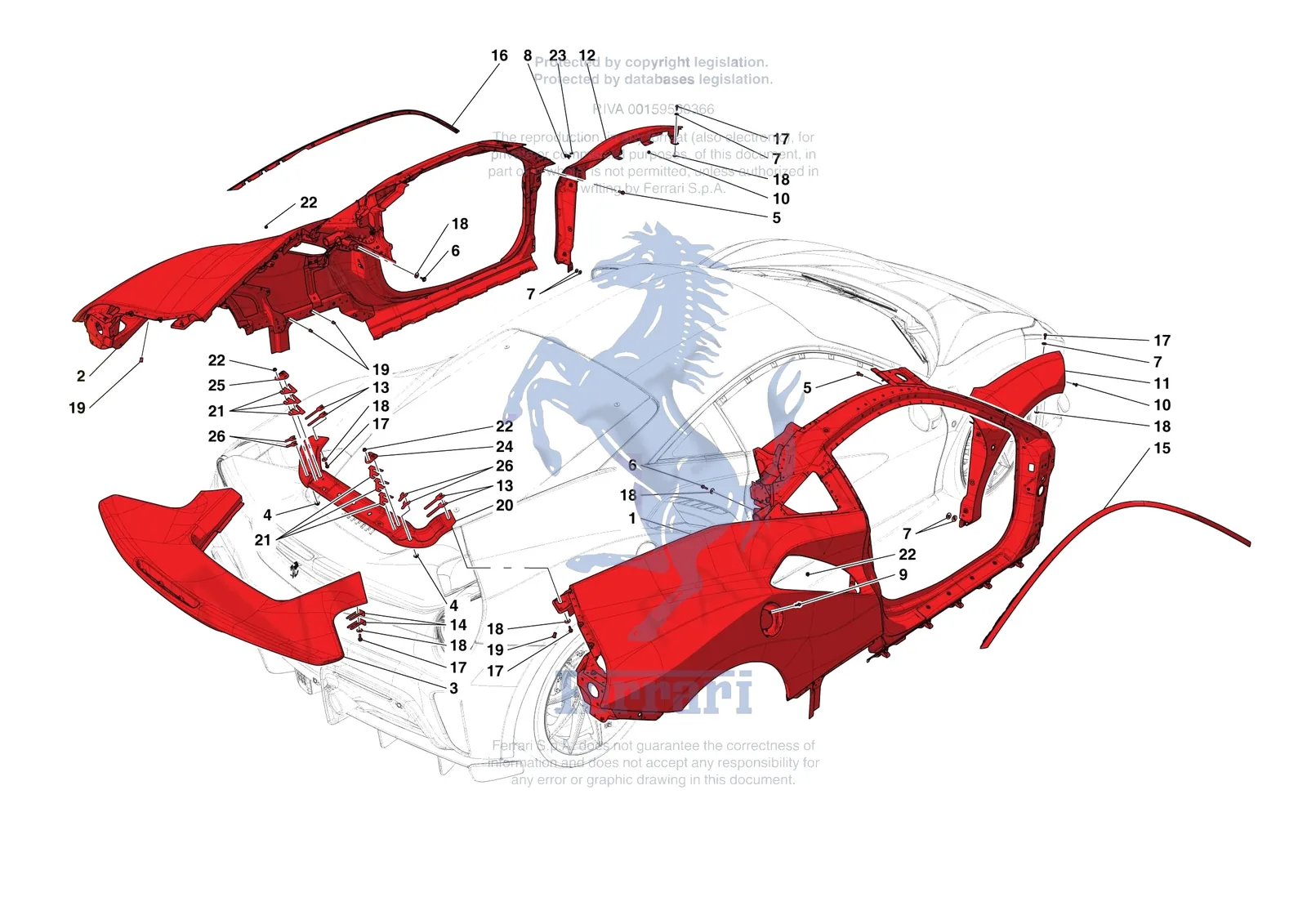

Exploded view of the [vehicle trim] - e.02 - lateral outer bodyshell on the Ferrari 488 Pista, with 43 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari 488 Pista [VEHICLE TRIM] - E.02 - LATERAL OUTER BODYSHELL exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/488-pista/0098.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 900885 | Ferrari Adjustment Shim - 900885 | Superseded | Order 87583800 instead | |
| 900889 | Ferrari Adjustment Shim - 900889 | Superseded | Order 87583700 instead | |
| 80415900 | Ferrari Screw - 80415900 | $32.60 | Available, ships in 3-6 days | |
| 921747 | Ferrari Spess.Curvo Di Regolaz.A For - 921747 | Superseded | Order 87583800 instead | |
| 921748 | Ferrari Spess.Curvo Di Regolaz.A For - 921748 | $12.29 | Special order, ships in 7-14 days | |
| 1 | 89237111 | Ferrari RH Flank - 89237111 | $25,032.07 | Contact us to order |
| 2 | 89237711 | Ferrari LH Flank - 89237711 | $25,032.07 | Contact us to order |
| 3 | 873944 | Ferrari Compl. Rear Spoiler - 873944 | $21,207.07 | Contact us to order |
| 3 | 873945 | Ferrari Compl. Rear Spoiler - 873945 | Price on request | Contact us for price and availability |
| 4 | 14039614 | Ferrari NUT - 14039614 | $0.40 | Available, ships in 3-6 days |
| 4 | 15896214 | Ferrari Nut M6 x 5 - 15896214 | Superseded | Order 14039614 instead |
| 5 | 16287221 | Ferrari Screw - 16287221 | $0.59 | Available, ships in 3-6 days |
| 5 | 16287224 | Ferrari Screw M8x25 - 16287224 | $0.82 | Available, ships in 3-6 days |
| 6 | 16286224 | Ferrari Screw M6x25 - 16286224 | $4.77 | Special order, ships in 7-14 days |
| 7 | 68040000 | Ferrari Washer 6X20x2 - 68040000 | $0.27 | Available, ships in 3-6 days |
| 8 | 87472400 | Ferrari Bracket - 87472400 | $51.37 | Special order, ships in 7-14 days |
| 9 | 10977621 | Ferrari Bolt - 10977621 | Superseded | Order 10977624 instead |
| 9 | 10977624 | Ferrari Screw TE M5 x 12 - 10977624 | $0.12 | Available, ships in 3-6 days |
| 10 | 11625824 | Ferrari Screw 6x18 - 11625824 | $0.71 | Available, ships in 3-6 days |
| 11 | 87523811 | Ferrari RH Front Bumper - 87523811 | $4,100.85 | Contact us to order |
| 11 | 87524011 | Ferrari RH Front Fender - 87524011 | $4,111.20 | Contact us to order |
| 12 | 87523711 | Ferrari LH Front Bumper - 87523711 | $4,100.85 | Contact us to order |
| 12 | 87523911 | Ferrari LH Front Bumper - 87523911 | $4,111.20 | Contact us to order |
| 13 | 86847600 | Ferrari Fork Adjuster Shim 1.0mm - 86847600 | $9.81 | Special order, ships in 7-14 days |
| 13 | 87576600 | Ferrari Fork Adjuster Shim 1.5mm - 87576600 | $3.89 | Special order, ships in 7-14 days |
| 14 | 836213 | Ferrari Shim 1.0mm - 836213 | $18.32 | Special order, ships in 7-14 days |
| 14 | 836218 | Ferrari Shim 1.5mm - 836218 | $18.25 | Special order, ships in 7-14 days |
| 15 | 86728110 | Ferrari Molura Gronda Dx Semilavorat - 86728110 | $1,076.99 | Special order, ships in 7-14 days |
| 16 | 86728210 | Ferrari Molura Gronda Sx Semilavorat - 86728210 | $1,076.99 | Special order, ships in 7-14 days |
| 17 | 16286121 | Ferrari Screw M6 x 20 - 16286121 | $1.23 | Available, ships in 3-6 days |
| 18 | 12647724 | Ferrari Washer - 12647724 | $0.31 | Available, ships in 3-6 days |
| 19 | 15624411 | Ferrari Rivet 6mm - 15624411 | $1.92 | Available, ships in 3-6 days |
| 19 | 248146 | Ferrari Rivet M6 x 16mm - 248146 | $1.97 | Available, ships in 3-6 days |
| 20 | 86821700 | Ferrari Flank Link Cross Member - 86821700 | Superseded | Order 86821711 instead |
| 20 | 86821711 | Ferrari Flank Link Cross Member - 86821711 | $832.22 | Special order, ships in 7-14 days |
| 21 | 86821900 | Ferrari Spoiler Duct Adjustment Bracket - 86821900 | $6.50 | Special order, ships in 7-14 days |
| 22 | 12578111 | Ferrari Flanged Nyloc Nut - 12578111 | $0.50 | Available, ships in 3-6 days |
| 23 | 14645690 | Ferrari Rivet D.4 8X10 - 14645690 | $0.65 | Available, ships in 3-6 days |
| 24 | 86872500 | Ferrari RH Spoiler Duct Adjustment B - 86872500 | $15.14 | Special order, ships in 7-14 days |
| 24 | 899588 | Ferrari Spoiler Duct Adjustment Bracket - 899588 | $75.86 | Special order, ships in 7-14 days |
| 25 | 86821800 | Ferrari LH Spoiler Duct Adjustment B - 86821800 | $15.14 | Special order, ships in 7-14 days |
| 26 | 87583800 | Ferrari Adjuster Shim 1.0mm - 87583800 | $3.68 | Special order, ships in 7-14 days |
| 26 | 87583700 | Ferrari Fork Adjuster Shim - 87583700 | $3.91 | Special order, ships in 7-14 days |
