Ferrari 488 Pista — [VEHICLE TRIM] - E.03 - ROOF PANEL (diagram 0099)

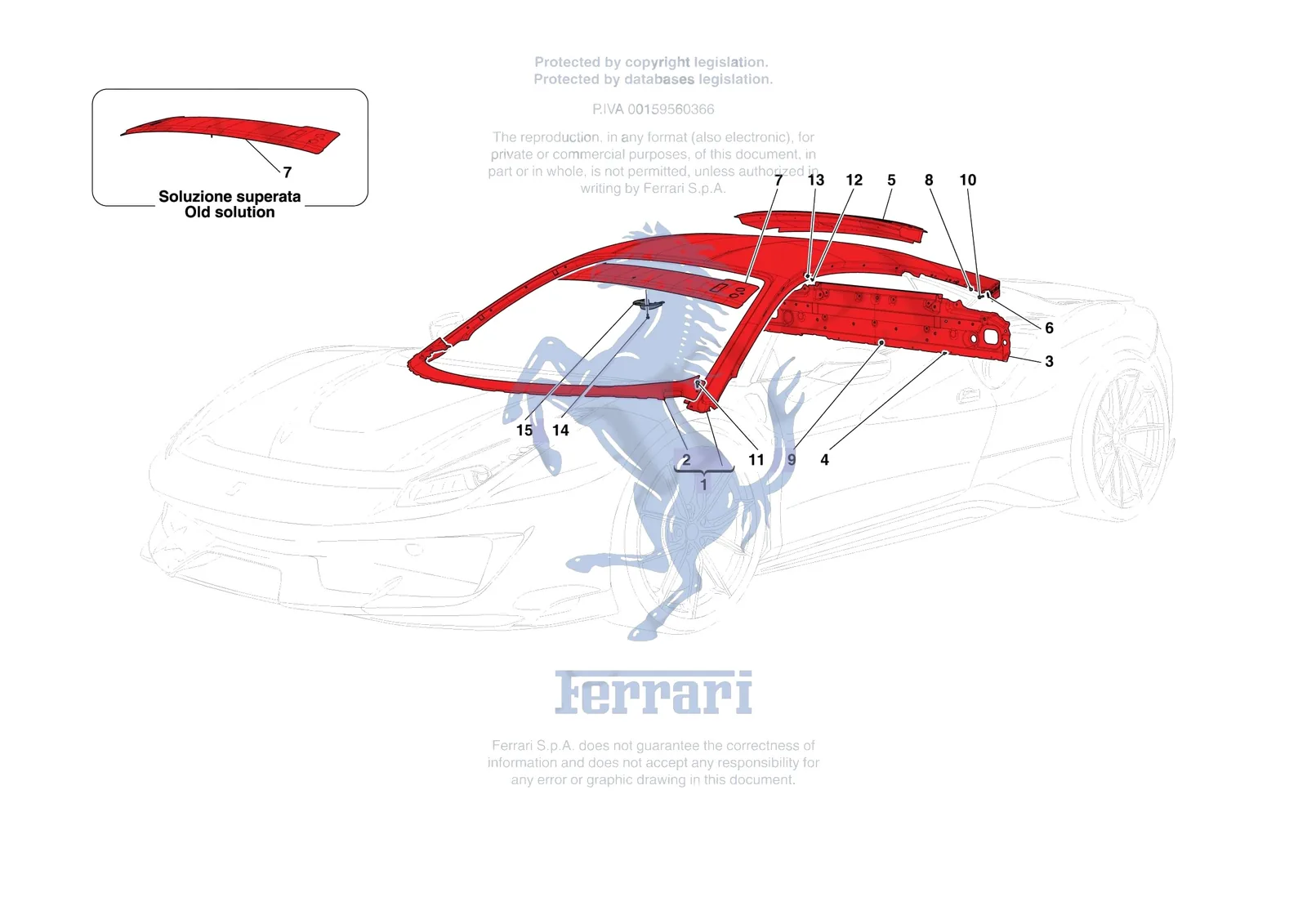

Exploded view of the [vehicle trim] - e.03 - roof panel on the Ferrari 488 Pista, with 21 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari 488 Pista [VEHICLE TRIM] - E.03 - ROOF PANEL exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/488-pista/0099.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 86247100 | Ferrari Upper Rear Screen Cross Member - 86247100 | Superseded | Order 86247111 instead | |
| 86321300 | Ferrari Upper Windscreen Cross-Membe - 86321300 | $930.12 | Special order, ships in 7-14 days | |
| 1 | 86886511 | Ferrari Roof Trim - 86886511 | $7,550.77 | Special order, ships in 7-14 days |
| 1 | 87523311 | Ferrari Roof Trim - 87523311 | $7,168.46 | Special order, ships in 7-14 days |
| 2 | 87286711 | Ferrari Windscreen Cross-Member Upper Cover - 87286711 | $4,131.90 | Special order, ships in 7-14 days |
| 3 | 86269811 | Ferrari Rear Screen Bulkhead Subframe - 86269811 | $856.69 | Special order, ships in 7-14 days |
| 3 | 86287411 | Ferrari Rear Screen Bulkhead Subframe - 86287411 | $2,543.33 | Contact us to order |
| 4 | 14645690 | Ferrari Rivet D.4 8X10 - 14645690 | $0.65 | Available, ships in 3-6 days |
| 5 | 86247111 | Ferrari Upper Rear Screen Cross Memb - 86247111 | $1,297.30 | Special order, ships in 7-14 days |
| 6 | 12647724 | Ferrari Washer - 12647724 | $0.31 | Available, ships in 3-6 days |
| 7 | 985880580 | Ferrari Upper Windscreen Cross Membe - 985880580 | $1,419.67 | Special order, ships in 7-14 days |
| 7 | 86321311 | Ferrari Upper Windscreen Cross-Membe - 86321311 | $1,199.37 | Special order, ships in 7-14 days |
| 8 | 13287819 | Ferrari Screw 5x12 - 13287819 | $0.79 | Available, ships in 3-6 days |
| 9 | 14059214 | Ferrari Flanged Nut M6 - 14059214 | $0.38 | Available, ships in 3-6 days |
| 10 | 16286024 | Ferrari SCREW - 16286024 | $0.38 | Available, ships in 3-6 days |
| 11 | 14639791 | Ferrari Rivet D. 6.4X 14.1 - 14639791 | $2.59 | Special order, ships in 7-14 days |
| 12 | 15689501 | Ferrari Screw - 15689501 | $0.50 | Available, ships in 3-6 days |
| 12 | 15783204 | Ferrari Screw - 15783204 | $0.38 | Available, ships in 3-6 days |
| 13 | 14215480 | Ferrari Plastic Screw Block D4 - 14215480 | $0.46 | Available, ships in 3-6 days |
| 14 | 16281827 | Ferrari Screw 5x14 - 16281827 | $0.46 | Special order, ships in 7-14 days |
| 15 | 897918 | Ferrari Compl. Light Mounting Bracke - 897918 | $66.07 | Special order, ships in 7-14 days |
