Ferrari 488 Pista — [VEHICLE TRIM] - E.09 - FRONT LID SUBSTRUCTURE (diagram 0105)

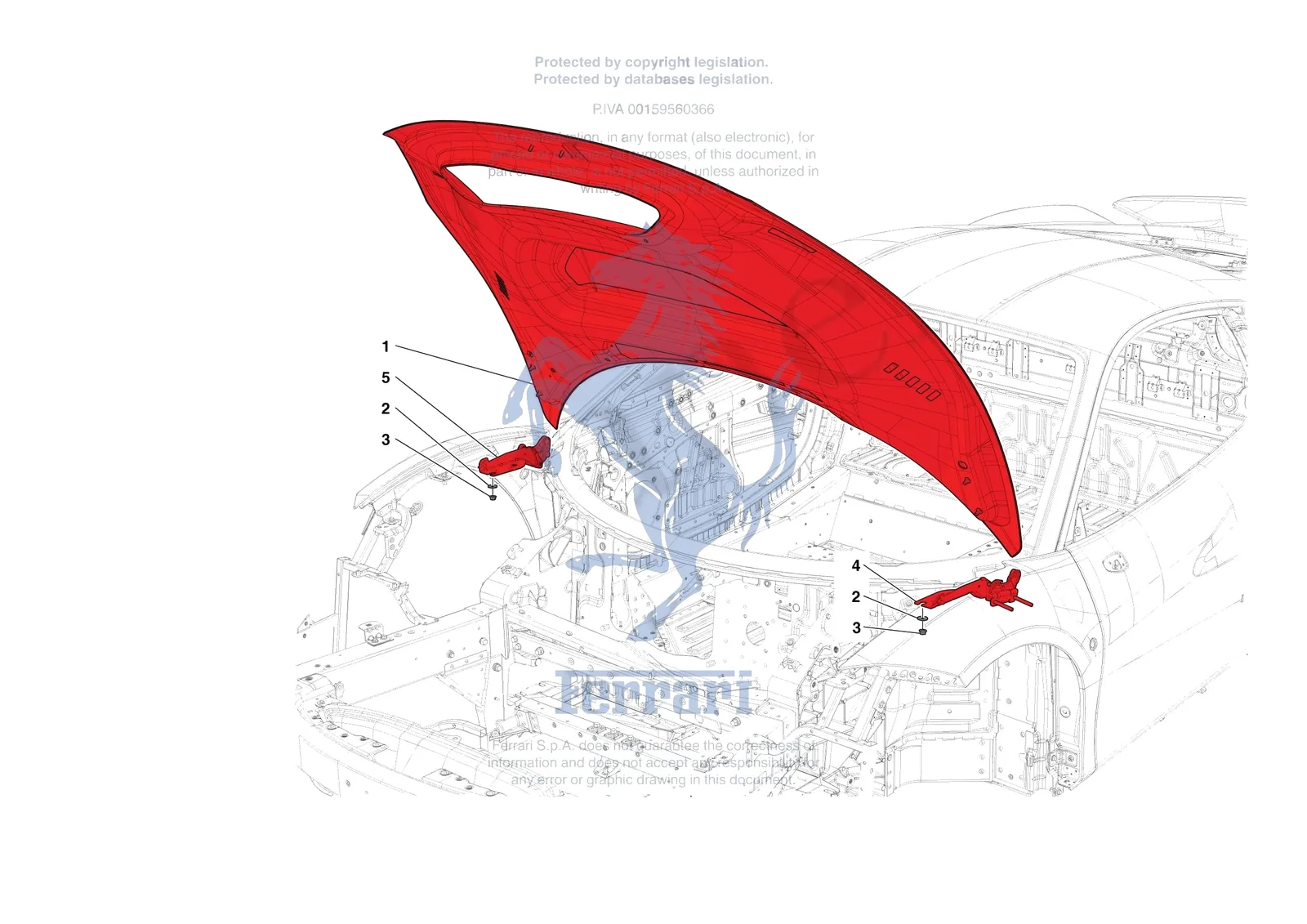

Exploded view of the [vehicle trim] - e.09 - front lid substructure on the Ferrari 488 Pista, with 11 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari 488 Pista [VEHICLE TRIM] - E.09 - FRONT LID SUBSTRUCTURE exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/488-pista/0105.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 968582 | Ferrari Cofano Ant.Lastr.Cpl Primer - 968582 | $46,956.94 | Contact us to order |
| 1 | 788066 | Ferrari Compl. Front Lid - 788066 | Superseded | Order 917250 instead |
| 1 | 89221600 | Ferrari Compl. Front Lid - 89221600 | Superseded | Order 968582 instead |
| 1 | 917186 | Ferrari Compl. Front Lid - 917186 | Superseded | Order 968582 instead |
| 1 | 917250 | Ferrari Compl. Front Lid - 917250 | $35,032.92 | Contact us to order |
| 1 | 917253 | Ferrari COMPL. FRONT LID - 917253 | Price on request | Contact us to order |
| 1 | 968584 | Ferrari Compl. Front Lid - Light colour primer - 968584 | Price on request | Contact us to order |
| 2 | 13578301 | Ferrari Washer - 13578301 | $0.17 | Special order, ships in 7-14 days |
| 3 | 14059311 | Ferrari NUT - 14059311 | $0.52 | Available, ships in 3-6 days |
| 4 | 84632900 | Ferrari LH Hinge Complete - 84632900 | $216.66 | Special order, ships in 7-14 days |
| 5 | 84633000 | Ferrari RH Hinge Complete - 84633000 | $216.66 | Special order, ships in 7-14 days |
