Ferrari 488 Pista — [VEHICLE TRIM] - E.17 - FRONT WHEELHOUSE (diagram 0116)

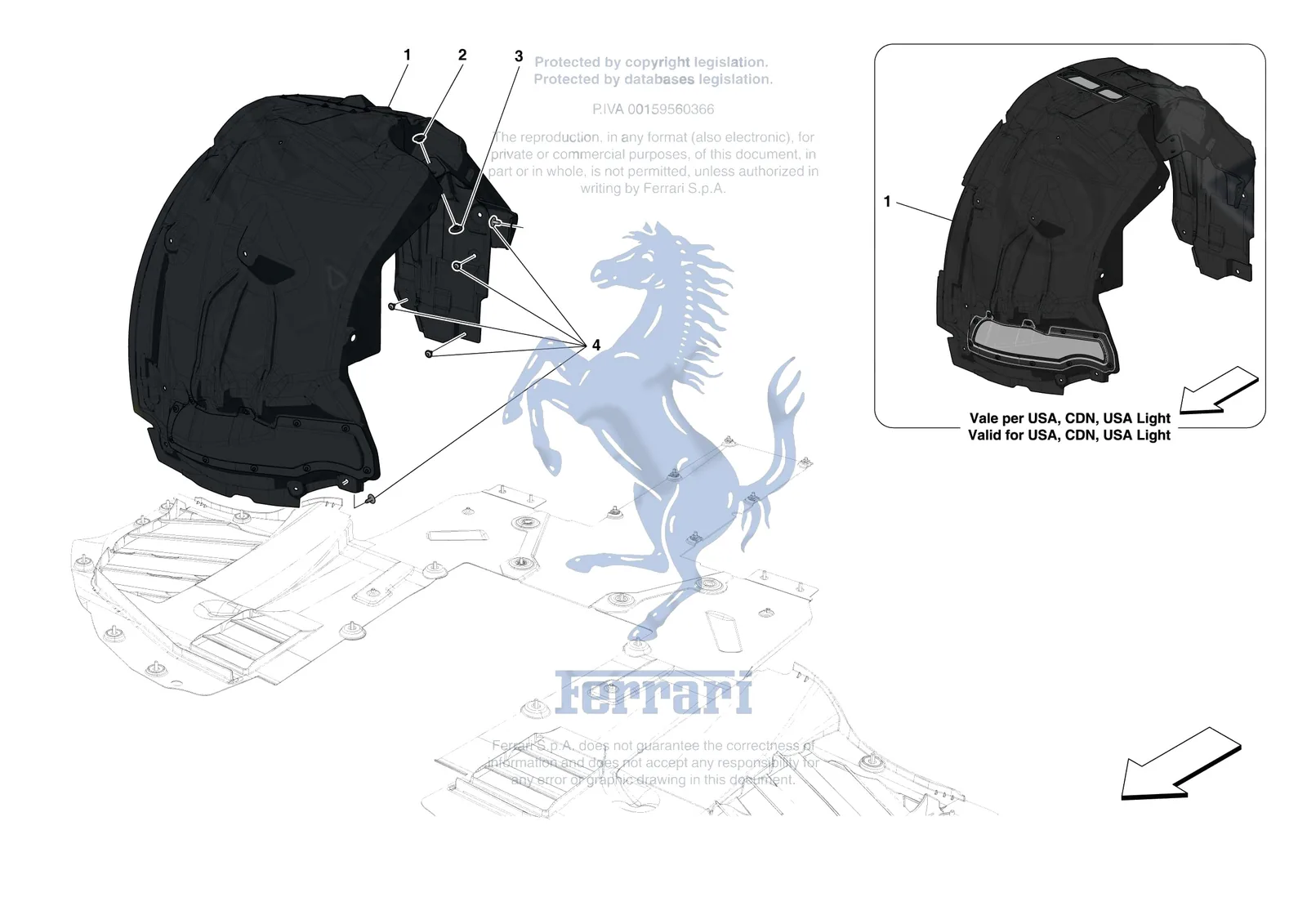

Exploded view of the [vehicle trim] - e.17 - front wheelhouse on the Ferrari 488 Pista, with 12 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari 488 Pista [VEHICLE TRIM] - E.17 - FRONT WHEELHOUSE exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/488-pista/0116.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 795658 | Ferrari LH Front Wheel House - 795658 | $739.74 | Special order, ships in 7-14 days |
| 1 | 781547 | Ferrari LH Front WheeLHouse - 781547 | Superseded | Order 928026 instead |
| 1 | 928026 | Ferrari LH Front WheeLHouse - 928026 | $1,927.11 | Contact us to order |
| 1 | 928028 | Ferrari LH Front WheeLHouse - 928028 | $805.02 | Special order, ships in 7-14 days |
| 1 | 795660 | Ferrari RH Front Wheel House - 795660 | $739.74 | Special order, ships in 7-14 days |
| 1 | 781548 | Ferrari RH Front WheeLHouse - 781548 | Superseded | Order 928027 instead |
| 1 | 928027 | Ferrari RH Front Wheelhouse - 928027 | $1,927.11 | Contact us to order |
| 1 | 928029 | Ferrari RH Front WheeLHouse - 928029 | $805.02 | Special order, ships in 7-14 days |
| 2 | 84247400 | Ferrari Female Clip - 84247400 | $2.59 | Available, ships in 3-6 days |
| 3 | 84247300 | Ferrari Male Clip - 84247300 | $2.82 | Available, ships in 3-6 days |
| 4 | 82115900 | Ferrari Screw M6 x 14 With Washer - 82115900 | $1.23 | Available, ships in 3-6 days |
| 4 | 88164800 | Ferrari Undertray Screw TBEI M6 x 15 - 88164800 | $1.53 | Special order, ships in 7-14 days |
