Ferrari 488 Pista — [VEHICLE TRIM] - E.22 - FRONT AIR INTAKES (diagram 0121)

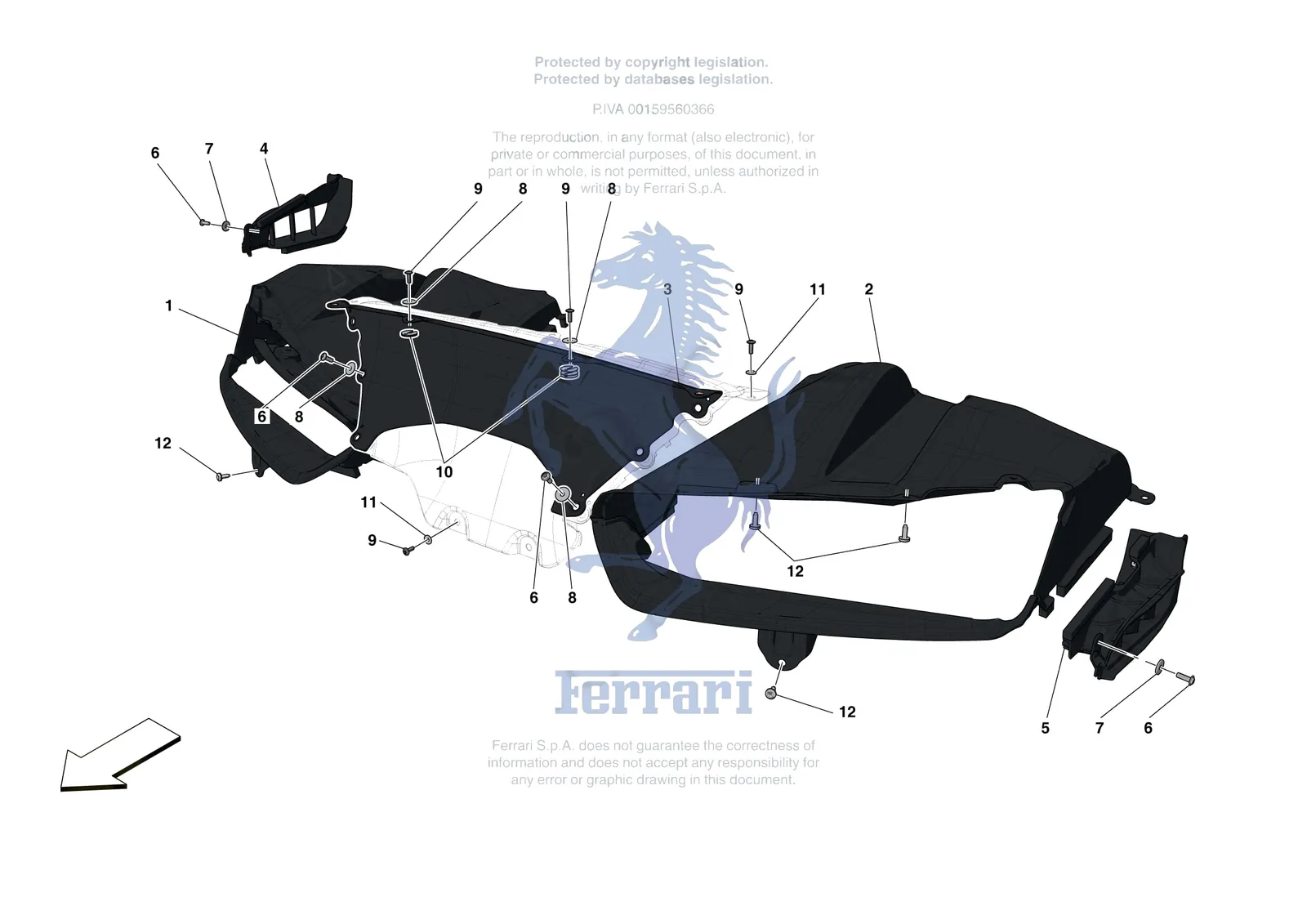

Exploded view of the [vehicle trim] - e.22 - front air intakes on the Ferrari 488 Pista, with 18 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari 488 Pista [VEHICLE TRIM] - E.22 - FRONT AIR INTAKES exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/488-pista/0121.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 12638108 | Ferrari Washer - 12638108 | Superseded | Order 12638178 instead | |
| 12638177 | Ferrari Washer - 12638177 | Superseded | Order 12638178 instead | |
| 61276300 | Ferrari Washer - 61276300 | Superseded | Order 12638178 instead | |
| 12647729 | Ferrari Washer 6.45-21X - 12647729 | $0.13 | Special order, ships in 7-14 days | |
| 1 | 809493 | Ferrari Compl. RH Front Duct - 809493 | Superseded | Order 879056 instead |
| 1 | 879056 | Ferrari Compl. RH Front Duct - 879056 | $1,223.87 | Special order, ships in 7-14 days |
| 2 | 809481 | Ferrari Compl. LH Front Duct - 809481 | Superseded | Order 879055 instead |
| 2 | 879055 | Ferrari Compl. LH Front Duct - 879055 | $1,223.87 | Special order, ships in 7-14 days |
| 3 | 807429 | Ferrari Front S-Duct Half Duct - 807429 | $881.17 | Special order, ships in 7-14 days |
| 4 | 931307263 | Ferrari Compl. Front RH Air Vent Duc - 931307263 | $1,591.03 | Special order, ships in 7-14 days |
| 5 | 931307317 | Ferrari Compl. Front LH Air Vent Duc - 931307317 | $1,591.03 | Special order, ships in 7-14 days |
| 6 | 65377400 | Ferrari Screw M6 x 1 x 18 - 65377400 | $3.91 | Available, ships in 3-6 days |
| 7 | 68040000 | Ferrari Washer 6X20x2 - 68040000 | $0.27 | Available, ships in 3-6 days |
| 8 | 12647727 | Ferrari Washer 6X21 - 12647727 | $0.12 | Special order, ships in 7-14 days |
| 9 | 85833900 | Ferrari Screw M5 x 16 TBFTX - 85833900 | $0.65 | Available, ships in 3-6 days |
| 10 | 89336000 | Ferrari Shim Plate - 89336000 | $9.16 | Special order, ships in 7-14 days |
| 11 | 12638178 | Ferrari Washer 5.45-14x1 - 12638178 | $0.13 | Available, ships in 3-6 days |
| 12 | 80874100 | Ferrari Screw Torx - 80874100 | $1.97 | Available, ships in 3-6 days |
