Ferrari 488 Pista — [VEHICLE TRIM] - E.24 - REAR AIR INTAKES (diagram 0123)

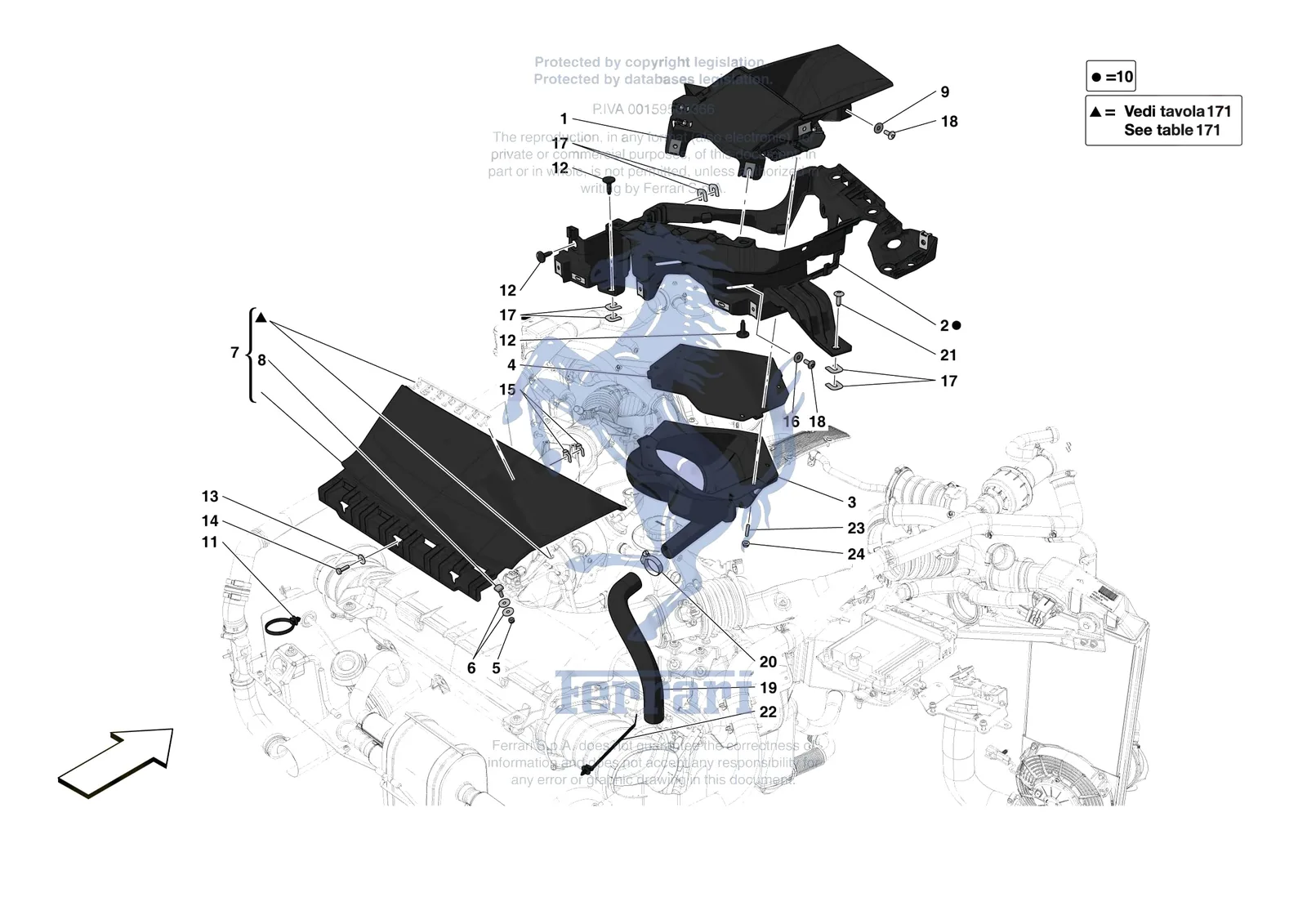

Exploded view of the [vehicle trim] - e.24 - rear air intakes on the Ferrari 488 Pista, with 46 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari 488 Pista [VEHICLE TRIM] - E.24 - REAR AIR INTAKES exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/488-pista/0123.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 10902426 | Ferrari Bolt - 10902426 | Superseded | Order 10902424 instead | |
| 10902421 | Ferrari Bolt M6 - 10902421 | $0.25 | Available, ships in 3-6 days | |
| 13046011 | Ferrari Flanged Nut - 13046011 | $0.73 | Available, ships in 3-6 days | |
| 12575411 | Ferrari Nyloc Nut M6 x 6 - 12575411 | Superseded | Order 12575421 instead | |
| 840252 | Ferrari RH Injection Cable Fastener - 840252 | Superseded | Order 786671 instead | |
| 11566224 | Ferrari Screw 5x14 - 11566224 | $0.77 | Available, ships in 3-6 days | |
| 12638108 | Ferrari Washer - 12638108 | Superseded | Order 12638178 instead | |
| 12638177 | Ferrari Washer - 12638177 | Superseded | Order 12638178 instead | |
| 61276300 | Ferrari Washer - 61276300 | Superseded | Order 12638178 instead | |
| 1 | 70006238 | Ferrari Compl. LH Upper Engine Intak - 70006238 | $9,567.27 | Special order, ships in 7-14 days |
| 1 | 879883 | Ferrari Compl. LH Upper Engine Intak - 879883 | Superseded | Order 70006238 instead |
| 1 | 798472 | Ferrari Compl. LH Upper Engine Intake Duct - 798472 | $7,653.36 | Special order, ships in 7-14 days |
| 1 | 931308242 | Ferrari Compl. LH Upper Engine Intake Duct - 931308242 | $440.56 | Special order, ships in 7-14 days |
| 1 | 70006237 | Ferrari Compl. RH Upper Engine Intak - 70006237 | $9,567.27 | Special order, ships in 7-14 days |
| 1 | 879875 | Ferrari Compl. RH Upper Engine Intak - 879875 | Superseded | Order 70006237 instead |
| 1 | 746784 | Ferrari Compl. RH Upper Engine Intake Duct - 746784 | $440.56 | Special order, ships in 7-14 days |
| 1 | 798471 | Ferrari Compl. RH Upper Engine Intake Duct - 798471 | $7,653.36 | Special order, ships in 7-14 days |
| 2 | 767565 | Ferrari Compl. LH Carrier - 767565 | Superseded | Order 868706 instead |
| 2 | 767537 | Ferrari Compl. RH Carrier - 767537 | Superseded | Order 868706 instead |
| 3 | 768068 | Ferrari Compl. LH Lower Engine Intake Duct - 768068 | Price on request | Contact us for price and availability |
| 3 | 768072 | Ferrari Compl. RH Lower Engine Intake Duct - 768072 | Price on request | Contact us for price and availability |
| 4 | 831224 | Ferrari LH Engine Intake Duct Mesh - 831224 | $73.94 | Special order, ships in 7-14 days |
| 4 | 831219 | Ferrari RH Engine Intake Duct Mesh - 831219 | $73.94 | Special order, ships in 7-14 days |
| 5 | 12575421 | Ferrari Nyloc Nut M6 x 6 - 12575421 | $0.40 | Available, ships in 3-6 days |
| 5 | 102741 | Ferrari/Maserati Nyloc Nut M6 - 102741 | $0.45 | In stock |
| 6 | 12647724 | Ferrari Washer - 12647724 | $0.31 | Available, ships in 3-6 days |
| 7 | 89274700 | Ferrari Parete Inf.Condotto Spoiler - 89274700 | $758.79 | Special order, ships in 7-14 days |
| 8 | 84123100 | Ferrari Square Headed Screw - 84123100 | $30.44 | Special order, ships in 7-14 days |
| 9 | 14447078 | Ferrari Washer D. 5.5 - 15 x 1 - 14447078 | $0.54 | Special order, ships in 7-14 days |
| 10 | 868706 | Ferrari Compl. RH Carrier - 868706 | $293.71 | Special order, ships in 7-14 days |
| 11 | 217854 | Ferrari CLAMP - 217854 | $0.52 | Available, ships in 3-6 days |
| 12 | 80874900 | Ferrari Screw M6 x 22 - 80874900 | $2.13 | Available, ships in 3-6 days |
| 13 | 12643701 | Ferrari Flat Washer - 12643701 | $0.12 | Available, ships in 3-6 days |
| 14 | 10902424 | Ferrari Bolt M6 x 20 - 10902424 | $0.27 | Available, ships in 3-6 days |
| 15 | 794619 | Ferrari Shim - 794619 | $10.64 | Special order, ships in 7-14 days |
| 16 | 12638178 | Ferrari Washer 5.45-14x1 - 12638178 | $0.13 | Available, ships in 3-6 days |
| 17 | 85163300 | Ferrari Shim For Upper Door Hinge - 85163300 | $21.04 | Special order, ships in 7-14 days |
| 18 | 85833700 | Ferrari SCREW - 85833700 | $0.65 | Available, ships in 3-6 days |
| 19 | 815003 | Ferrari Corrugated Pipe - 815003 | $4.91 | Special order, ships in 7-14 days |
| 20 | 178053 | Ferrari Clip - 178053 | $2.64 | In stock |
| 20 | 296779 | Ferrari Hose Clamp 20 to 32mm - 296779 | Superseded | Order 178053 instead |
| 21 | 80874100 | Ferrari Screw Torx - 80874100 | $1.97 | Available, ships in 3-6 days |
| 21 | 82113500 | Ferrari Screw Torx M6 x 18 with Washer D. 15 - 82113500 | $5.86 | Available, ships in 3-6 days |
| 22 | 786671 | Ferrari Clip - 786671 | $2.59 | Special order, ships in 7-14 days |
| 23 | 11001124 | Ferrari Stud Bolt - 11001124 | $137.67 | Available, ships in 3-6 days |
| 24 | 14040514 | Ferrari Flanged Nut - 14040514 | Superseded | Order 13046011 instead |
