Ferrari 488 Pista — [VEHICLE TRIM] - E.29.02 - DOORS - OPENING MECHANISMS AND HINGES (diagram 0129)

Exploded view of the [vehicle trim] - e.29.02 - doors - opening mechanisms and hinges on the Ferrari 488 Pista, with 50 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

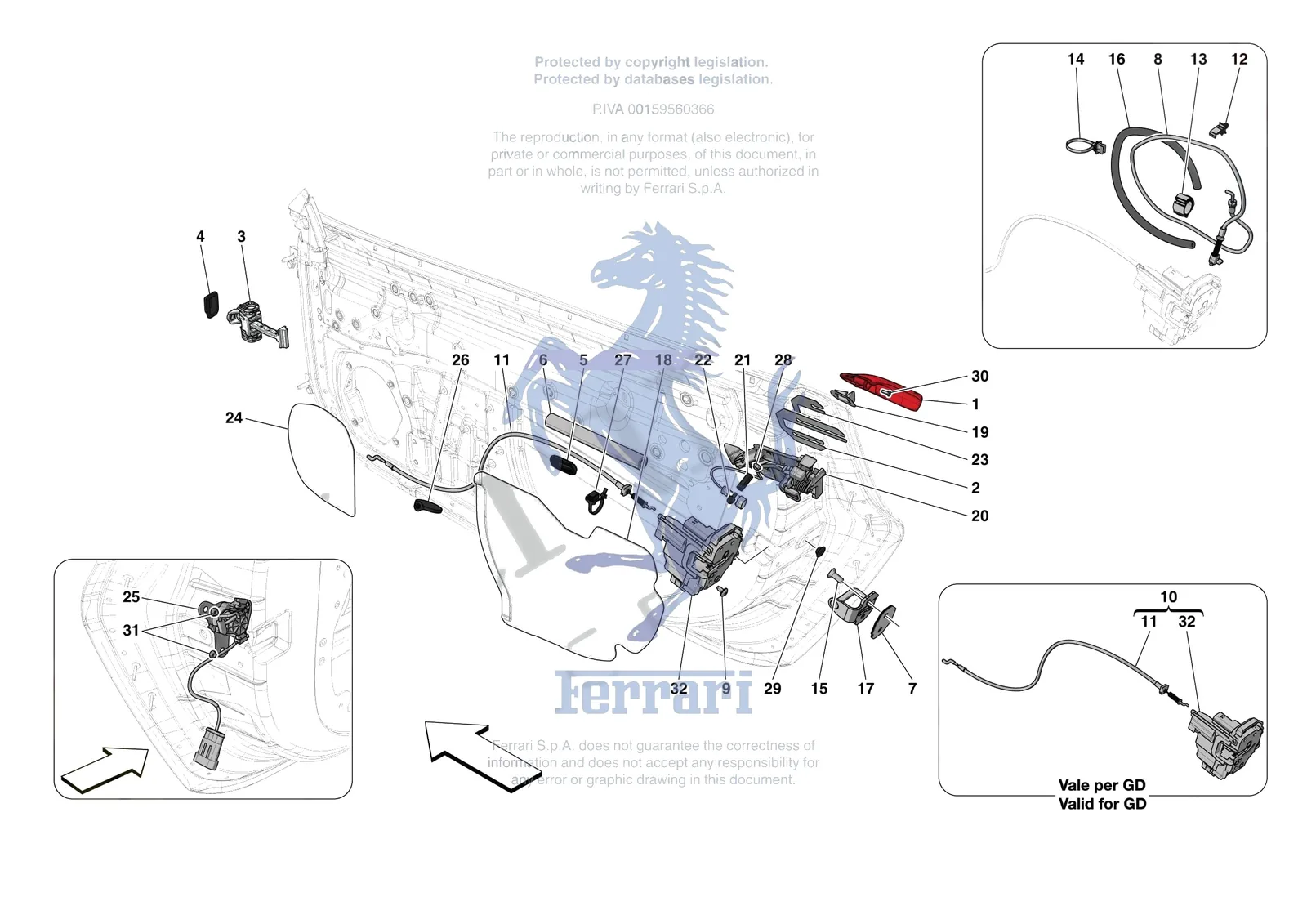

Ferrari 488 Pista [VEHICLE TRIM] - E.29.02 - DOORS - OPENING MECHANISMS AND HINGES exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
14569480Ferrari Clip 10x3.8 Black - 14569480$0.54Available, ships in 3-6 days
83982900Ferrari Hexagonal Pillar - 83982900SupersededOrder 87940300 instead
85730900Ferrari LH Door Lock LHD - 85730900SupersededOrder 785970 instead
85731000Ferrari LH Door Lock RHD - 85731000$318.19Special order, ships in 7-14 days
86980200Ferrari LH Door Lock RHD - 86980200$440.56Special order, ships in 7-14 days
85730800Ferrari RH Door Lock LHD - 85730800SupersededOrder 785971 instead
85731100Ferrari RH Door Lock RHD - 85731100SupersededOrder 785975 instead
86980900Ferrari RH Door Lock RHD - 86980900Price on requestContact us for price and availability
187217610Ferrari LH Outer Door Handle - 87217610$517.04Special order, ships in 7-14 days
187217710Ferrari RH Outer Door Handle - 87217710$517.04Special order, ships in 7-14 days
280821900Ferrari Door Handle Spacer - 80821900$12.21Special order, ships in 7-14 days
381486000Ferrari Door Arrester Tie-Rod - 81486000$91.08Available, ships in 3-6 days
481916500Ferrari Door Safety Hook Cap - 81916500$9.08Special order, ships in 7-14 days
582629100Ferrari Cable Grommet - 82629100SupersededOrder 898656 instead
5898656Ferrari Cable Grommet - 898656$6.10Special order, ships in 7-14 days
682936500Ferrari Protective Sheath For Internal Handle Bowden Cable - 82936500$4.39Special order, ships in 7-14 days
785052600Ferrari Door Striker Plate Shim - 85052600$11.56Special order, ships in 7-14 days
869877100Ferrari Door Bowden Cable - 69877100$68.83Special order, ships in 7-14 days
985478900Ferrari SCREW - 85478900$2.13Available, ships in 3-6 days
10823534Ferrari LH Door Lock RHD - 823534SupersededOrder 86980200 instead
10823535Ferrari RH Door Lock RHD - 823535Price on requestContact us for price and availability
1186622600Ferrari Inner Door Handle Bowden Cable - 86622600$115.54Special order, ships in 7-14 days
12291408Ferrari Clip - 291408$0.34Special order, ships in 7-14 days
13248061Ferrari Clip - 248061$4.12Available, ships in 3-6 days
1469708300Ferrari Clip - 69708300$2.59Available, ships in 3-6 days
1585133400Ferrari Screw TSEI M8 x 20 - 85133400$1.30Available, ships in 3-6 days
1682936400Ferrari Sheath - 82936400$8.59Special order, ships in 7-14 days
1785052500Ferrari Door Lock Striker Plate - 85052500$29.48Special order, ships in 7-14 days
1886844300Ferrari LH Waterproof Membrane - 86844300$93.53Special order, ships in 7-14 days
1886844400Ferrari RH Waterproof Membrane - 86844400$93.53Special order, ships in 7-14 days
1987217400Ferrari LH Door Handle Seal - 87217400$37.18Special order, ships in 7-14 days
1987217500Ferrari RH Door Handle Seal - 87217500$37.18Available, ships in 3-6 days
2087507500Ferrari Compl. LH Outer Door Handle - 87507500$391.61Special order, ships in 7-14 days
2087507400Ferrari Compl. RH Outer Door Handle - 87507400$391.61Special order, ships in 7-14 days
2187940300Ferrari Hexagonal Pillar - 87940300$34.40Special order, ships in 7-14 days
2262239900Ferrari Pin - 62239900$9.56Available, ships in 3-6 days
2388007300Ferrari Door Handle Spacer LHD - 88007300$6.54Special order, ships in 7-14 days
24796452Ferrari LH Speaker Waterproof Membra - 796452$68.50Special order, ships in 7-14 days
24796454Ferrari RH Speaker Waterproof Membra - 796454$68.50Special order, ships in 7-14 days
2586690400Ferrari Latch Holder LHD - 86690400$295.43Special order, ships in 7-14 days
2586985800Ferrari Latch Holder RHD - 86985800$295.43Special order, ships in 7-14 days
26217854Ferrari CLAMP - 217854$0.52Available, ships in 3-6 days
27279762Ferrari Clamp - 279762$0.98Special order, ships in 7-14 days
2814059121Ferrari Nut M5 - 14059121$0.31Available, ships in 3-6 days
2914506587Ferrari Rubber Grommet - 14506587$0.38Available, ships in 3-6 days
3080365900Ferrari Screw M4 x 12 TSEI - 80365900$0.31Available, ships in 3-6 days
32785970Ferrari LH Door Lock LHD - 785970$243.40Special order, ships in 7-14 days
32785974Ferrari LH Door Lock RHD - 785974$243.40Special order, ships in 7-14 days
32785971Ferrari RH Door Lock LHD - 785971$243.40Special order, ships in 7-14 days
32785975Ferrari RH Door Lock RHD - 785975$243.40Special order, ships in 7-14 days
