Ferrari 488 Pista — [VEHICLE TRIM] - E.29.03 - DOORS - WINDOW AND WINDOW LIFTER (diagram 0130)
Exploded view of the [vehicle trim] - e.29.03 - doors - window and window lifter on the Ferrari 488 Pista, with 8 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

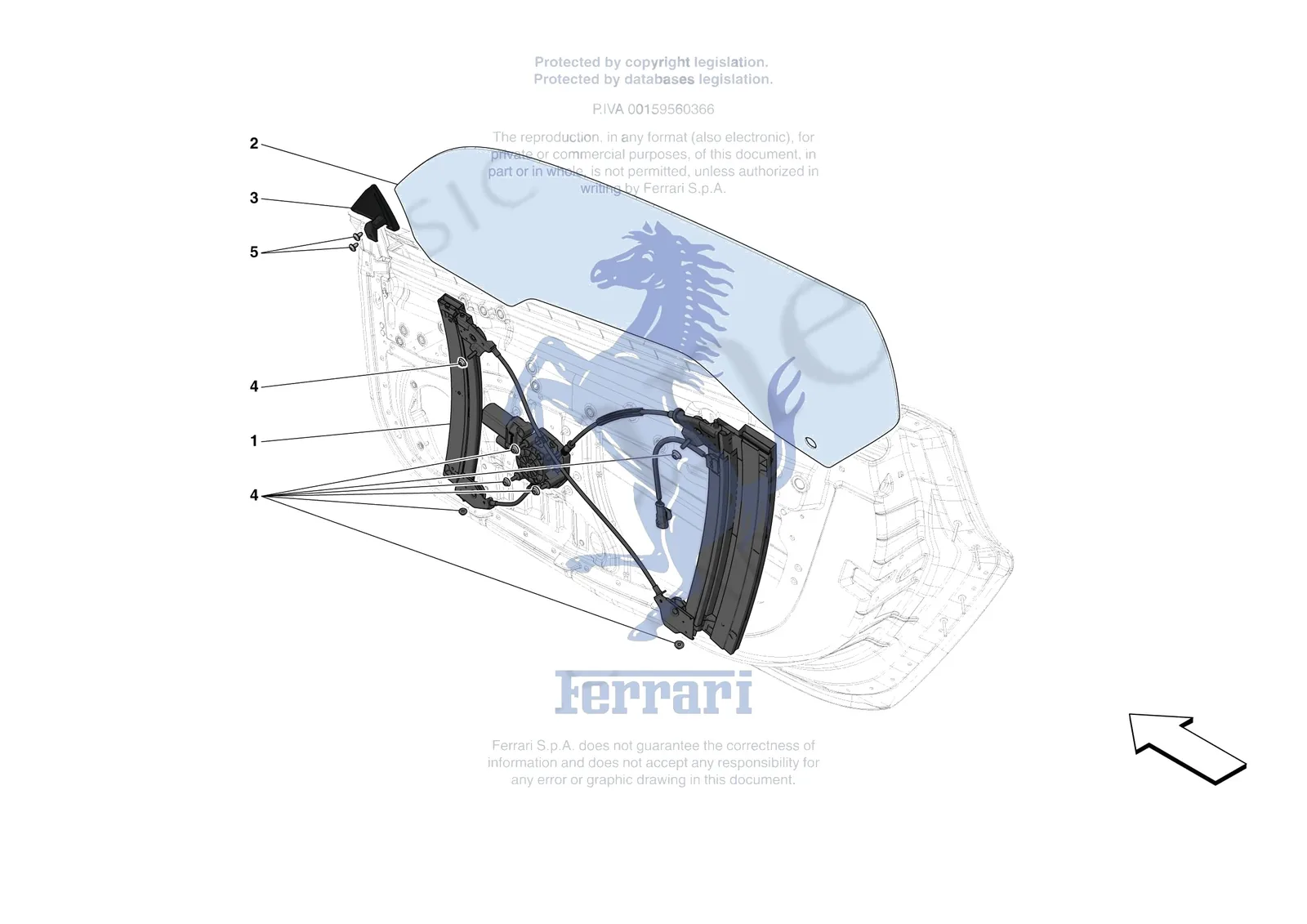

![Ferrari 488 Pista [VEHICLE TRIM] - E.29.03 - DOORS - WINDOW AND WINDOW LIFTER exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/488-pista/0130.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 806461 | Ferrari Front LH Door Window Lift Me - 806461 | $805.02 | Special order, ships in 7-14 days |
| 1 | 806512 | Ferrari Front RH Door Window Lift Me - 806512 | $805.02 | Special order, ships in 7-14 days |
| 2 | 782791 | Ferrari LH Door Window - 782791 | $522.16 | Contact us to order |
| 2 | 782781 | Ferrari RH Door Window - 782781 | $522.16 | Contact us to order |
| 3 | 81486500 | Ferrari LH Door Corner Triangle - 81486500 | $201.88 | Special order, ships in 7-14 days |
| 3 | 81486300 | Ferrari RH Door Corner Triangle - 81486300 | $201.88 | Special order, ships in 7-14 days |
| 4 | 13832101 | Ferrari Flanged Nut M6 - 13832101 | $0.27 | Available, ships in 3-6 days |
| 5 | 46401657 | Ferrari Screw TBEI M6 x 12 Torx - 46401657 | $1.04 | Available, ships in 3-6 days |
