Ferrari 488 Pista — [VEHICLE TRIM] - E.45 - LUGGAGE COMPARTMENT MATS (diagram 0147)
Exploded view of the [vehicle trim] - e.45 - luggage compartment mats on the Ferrari 488 Pista, with 44 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

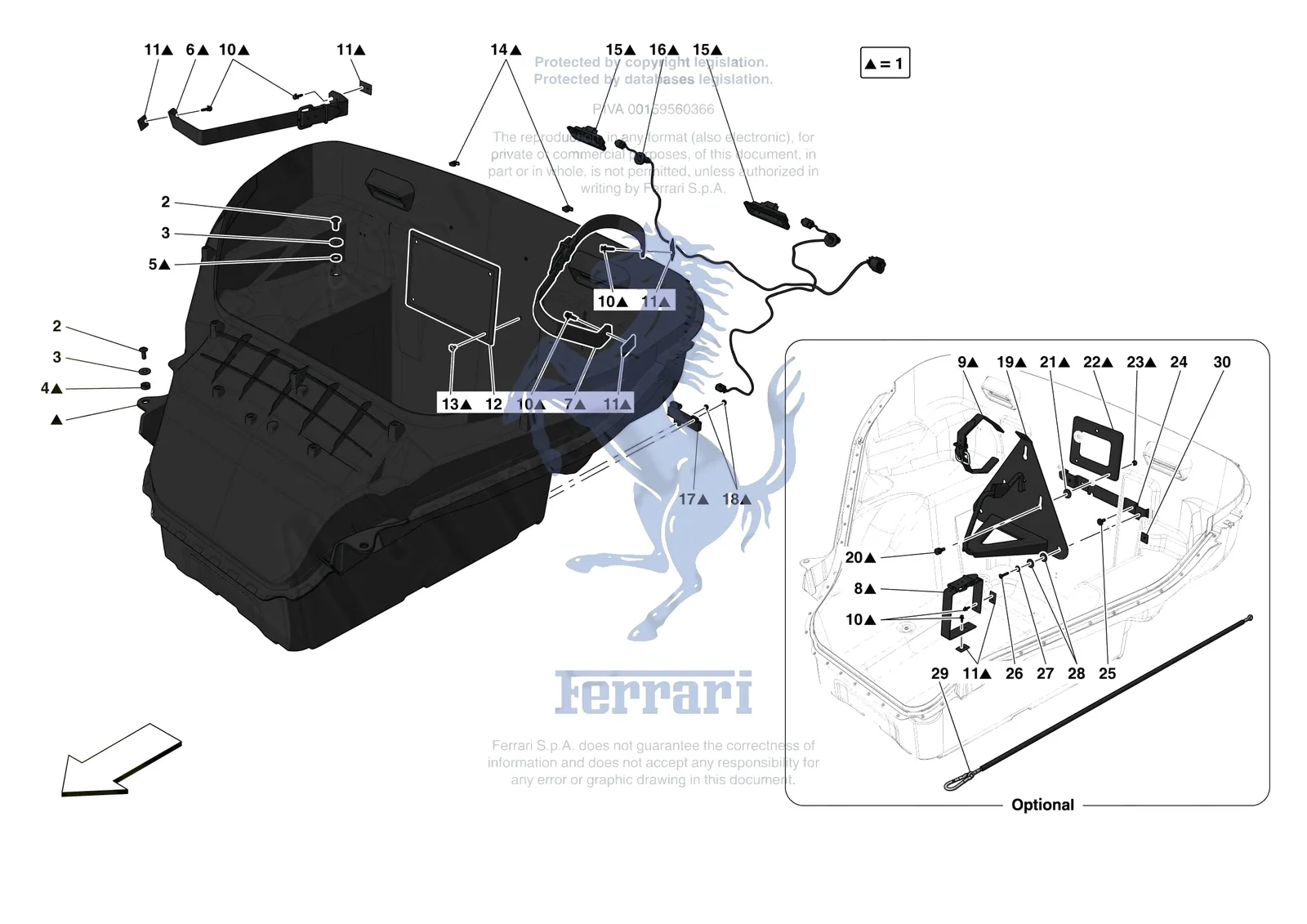

![Ferrari 488 Pista [VEHICLE TRIM] - E.45 - LUGGAGE COMPARTMENT MATS exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/488-pista/0147.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 86543300 | Ferrari Threaded Pin - 86543300 | Superseded | Order 83559100 instead | |
| 12643707 | Ferrari Washer - 12643707 | Superseded | Order 12643778 instead | |
| 12643777 | Ferrari Washer - 12643777 | Superseded | Order 12643778 instead | |
| 1 | 70006356 | Ferrari Compl. Luggage Compartment T - 70006356 | $27,671.35 | Contact us to order |
| 1 | 794789 | Ferrari Compl. Luggage Compartment T - 794789 | $7,630.03 | Special order, ships in 7-14 days |
| 1 | 794813 | Ferrari Compl. Luggage Compartment T - 794813 | $6,149.73 | Special order, ships in 7-14 days |
| 1 | 831437 | Ferrari Compl. Luggage Compartment T - 831437 | $13,033.79 | Contact us to order |
| 1 | 831548 | Ferrari Compl. Luggage Compartment T - 831548 | $13,208.63 | Contact us to order |
| 1 | 831576 | Ferrari Compl. Luggage Compartment T - 831576 | $13,208.63 | Contact us to order |
| 1 | 831595 | Ferrari Compl. Luggage Compartment T - 831595 | $13,208.63 | Contact us to order |
| 1 | 70006357 | Ferrari COMPL. LUGGAGE COMPARTMENT TUB - 70006357 | Price on request | Contact us for price and availability |
| 1 | 70006358 | Ferrari COMPL. LUGGAGE COMPARTMENT TUB - 70006358 | Price on request | Contact us for price and availability |
| 1 | 70006359 | Ferrari COMPL. LUGGAGE COMPARTMENT TUB - 70006359 | Price on request | Contact us for price and availability |
| 1 | 785791 | Ferrari Complete Luggage Compartment Tub - 785791 | $5,767.40 | Special order, ships in 7-14 days |
| 1 | 89294800 | Ferrari Cs Vasca Baule - 89294800 | $5,767.40 | Special order, ships in 7-14 days |
| 2 | 65864100 | Ferrari Allen Head Screw M6 x 15 TBFEI - 65864100 | $2.82 | Available, ships in 3-6 days |
| 3 | 12643778 | Ferrari Washer 6-18 x 1.5 - 12643778 | $0.54 | Available, ships in 3-6 days |
| 4 | 835987 | Ferrari Bushing - 835987 | $7.86 | Special order, ships in 7-14 days |
| 5 | 835984 | Ferrari Bushing - 835984 | $7.86 | Special order, ships in 7-14 days |
| 6 | 863040 | Ferrari Complete Tool Kit Strap - 863040 | $393.93 | Special order, ships in 7-14 days |
| 7 | 863022 | Ferrari Retainer Strap - 863022 | $393.93 | Special order, ships in 7-14 days |
| 8 | 863489 | Ferrari Toolkit Bag Fastener Strap - 863489 | $393.93 | Special order, ships in 7-14 days |
| 9 | 863558 | Ferrari Upper Retainer Strap For Spa - 863558 | $393.93 | Special order, ships in 7-14 days |
| 10 | 14415690 | Ferrari Rivet - 14415690 | $1.80 | Available, ships in 3-6 days |
| 11 | 81516000 | Ferrari Plate - 81516000 | $110.78 | Special order, ships in 7-14 days |
| 12 | 87731010 | Ferrari Vehicle Opt. List Holder - 87731010 | $614.67 | Special order, ships in 7-14 days |
| 13 | 87736500 | Ferrari Screw - 87736500 | $7.19 | Special order, ships in 7-14 days |
| 14 | 67278400 | Ferrari BRACKET - 67278400 | $21.60 | Special order, ships in 7-14 days |
| 15 | 307799 | Ferrari Light - 307799 | $87.40 | Special order, ships in 7-14 days |
| 16 | 320880 | Ferrari Luggage Compartment Cable For Antenna And Light Unit - 320880 | $137.04 | Special order, ships in 7-14 days |
| 17 | 311310 | Ferrari Passive Start Antenna - 311310 | $24.02 | Special order, ships in 7-14 days |
| 18 | 853181 | Ferrari Starlock - 853181 | $7.86 | Special order, ships in 7-14 days |
| 19 | 785874 | Ferrari Hinged Bracket - Optional Space Saver Wheel - 785874 | $393.93 | Special order, ships in 7-14 days |
| 20 | 83559100 | Ferrari Threaded Pin - 83559100 | $125.54 | Special order, ships in 7-14 days |
| 21 | 65841100 | Ferrari Black Foam Washer - Self Adhesive - 65841100 | $2.13 | Available, ships in 3-6 days |
| 22 | 86543000 | Ferrari Space Saver Spare Wheel Bracket Mount Reinforcement - 86543000 | $237.40 | Special order, ships in 7-14 days |
| 23 | 86543200 | Ferrari Bushing - 86543200 | Price on request | Contact us for price and availability |
| 24 | 83615800 | Ferrari Bracket For Space Saver Spare Wheel - 83615800 | $85.64 | Special order, ships in 7-14 days |
| 25 | 65933500 | Ferrari Screw M6 x 15 TBEI - 65933500 | $3.26 | Available, ships in 3-6 days |
| 26 | 262934 | Ferrari Screw 5x20 - 262934 | $0.84 | Special order, ships in 7-14 days |
| 27 | 14447078 | Ferrari Washer D. 5.5 - 15 x 1 - 14447078 | $0.54 | Special order, ships in 7-14 days |
| 28 | 12624178 | Ferrari Washer D. 5.45 - 22 x 2 - 12624178 | $0.71 | Available, ships in 3-6 days |
| 29 | 83606300 | Ferrari Space Saver Spare Wheel Retainer Cable - 83606300 | $147.72 | Special order, ships in 7-14 days |
| 30 | 83072500 | Ferrari Gasket - 83072500 | $4.35 | Available, ships in 3-6 days |
