Ferrari 488 Pista — [VEHICLE TRIM] - E.47.05 - DASHBOARD - DUCTS -Not for RHD- (diagram 0153)
Exploded view of the [vehicle trim] - e.47.05 - dashboard - ducts -not for rhd- on the Ferrari 488 Pista, with 17 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

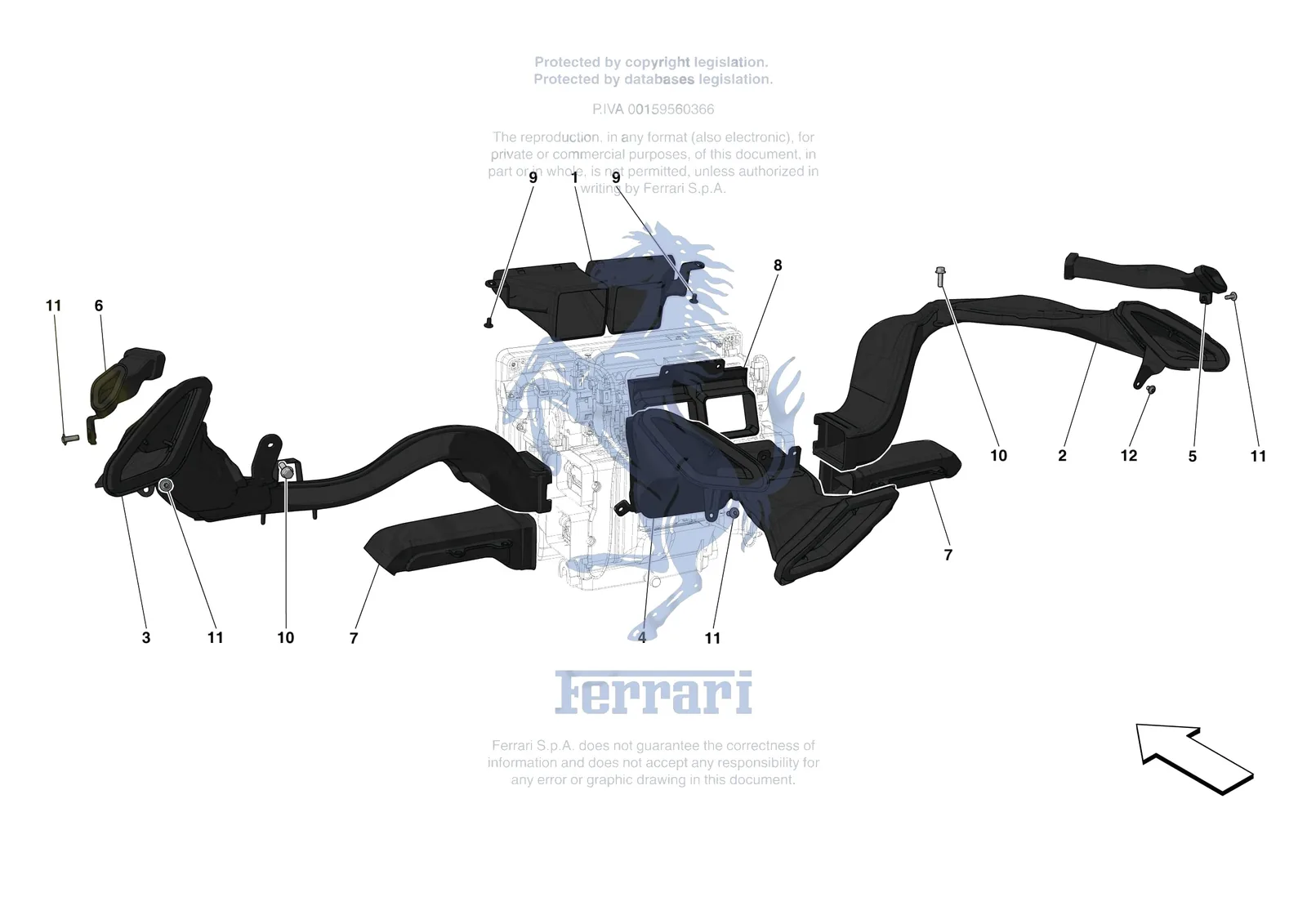

![Ferrari 488 Pista [VEHICLE TRIM] - E.47.05 - DASHBOARD - DUCTS -Not for RHD- exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/488-pista/0153.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 86178200 | Ferrari Fastener Bracket For LH Passenger Side Vent Duct - 86178200 | Superseded | Order 86178400 instead | |
| 81371100 | Ferrari Footwell Duct - 81371100 | Superseded | Order 84497100 instead | |
| 86178500 | Ferrari RH Driver Side / LH Passenger Side Vent Duct - 86178500 | Superseded | Order 86178400 instead | |
| 86180300 | Ferrari RH Passenger Side Air Vent Duct Complete LHD - 86180300 | $193.35 | Special order, ships in 7-14 days | |
| 11566224 | Ferrari Screw 5x14 - 11566224 | $0.77 | Available, ships in 3-6 days | |
| 1 | 86166200 | Ferrari Hvac Defroster Connector LHD - 86166200 | $151.74 | Special order, ships in 7-14 days |
| 2 | 86180200 | Ferrari RH Passenger Ventilation Duct Complete LHD - 86180200 | $237.40 | Special order, ships in 7-14 days |
| 3 | 86179700 | Ferrari LH Driver Side Air Vent Duct Complete LHD - 86179700 | $367.14 | Special order, ships in 7-14 days |
| 4 | 86178400 | Ferrari RH Drivers / LH Passenger Ventilation Duct Complete LHD - 86178400 | $293.71 | Special order, ships in 7-14 days |
| 5 | 86175500 | Ferrari RH Demister Duct Complete LHD - 86175500 | $139.49 | Special order, ships in 7-14 days |
| 6 | 86170700 | Ferrari LH Demister Duct Complete LHD - 86170700 | $139.49 | Special order, ships in 7-14 days |
| 7 | 84497100 | Ferrari Footwell Duct - 84497100 | $100.34 | Special order, ships in 7-14 days |
| 8 | 83127400 | Ferrari Centre Air Duct Connector - 83127400 | $21.51 | Special order, ships in 7-14 days |
| 9 | 85692000 | Ferrari SCREW - 85692000 | $0.65 | Available, ships in 3-6 days |
| 10 | 16286124 | Ferrari Screw M6x20 - 16286124 | $0.71 | Special order, ships in 7-14 days |
| 11 | 85833700 | Ferrari SCREW - 85833700 | $0.65 | Available, ships in 3-6 days |
| 12 | 85691900 | Ferrari Screw M5 x 8 TBFTX - 85691900 | $0.65 | Available, ships in 3-6 days |
