Ferrari 488 Pista — [VEHICLE TRIM] - E.47.06 - DASHBOARD - DUCTS -Applicable for RHD- (diagram 0154)

Exploded view of the [vehicle trim] - e.47.06 - dashboard - ducts -applicable for rhd- on the Ferrari 488 Pista, with 13 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

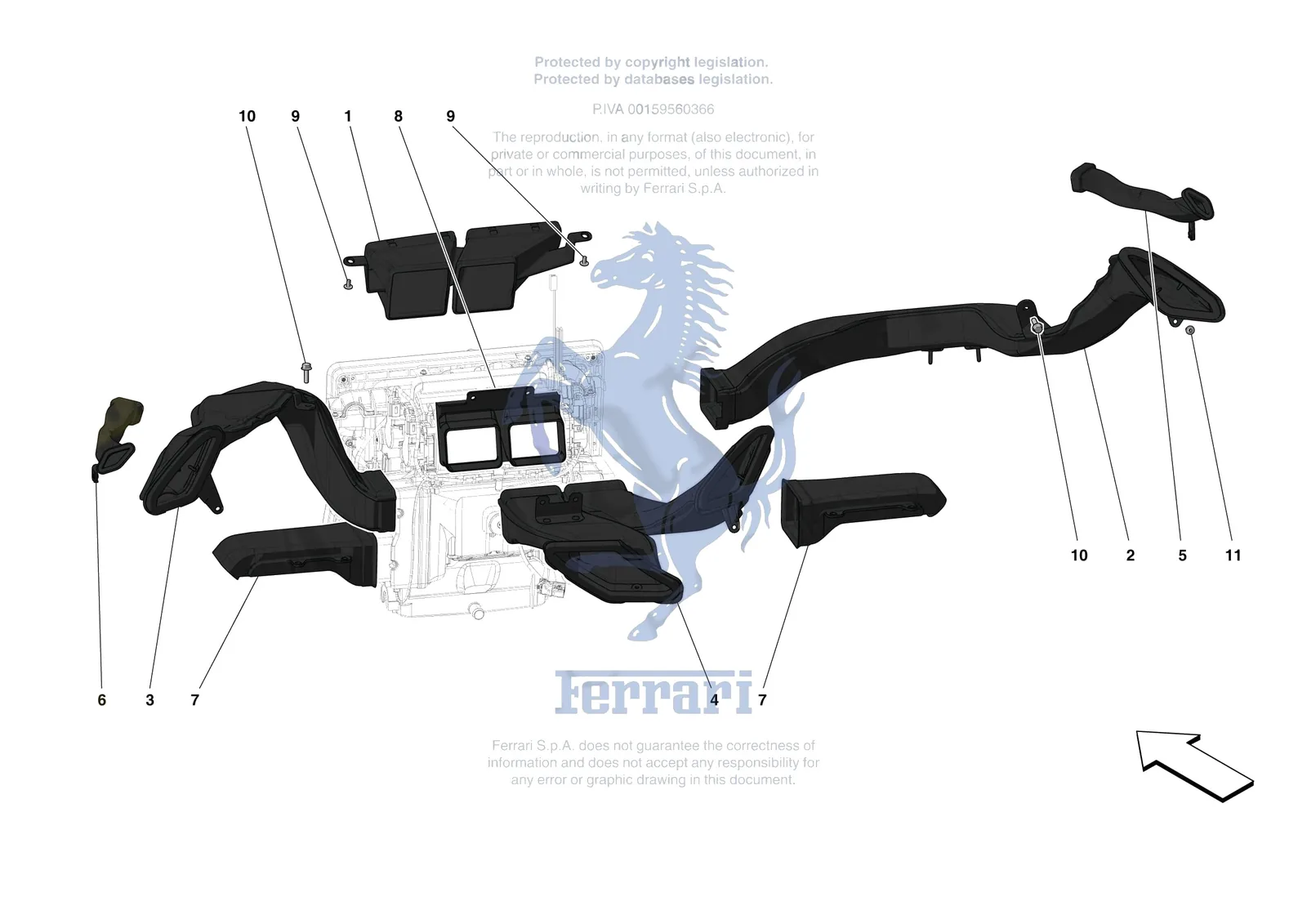

Ferrari 488 Pista [VEHICLE TRIM] - E.47.06 - DASHBOARD - DUCTS -Applicable for RHD- exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
81371100Ferrari Footwell Duct - 81371100SupersededOrder 84497100 instead
11566224Ferrari Screw 5x14 - 11566224$0.77Available, ships in 3-6 days
187030200Ferrari Hvac Defroster Connector RHD - 87030200$152.62Special order, ships in 7-14 days
287023000Ferrari RH Driver Side Air Vent Duct Complete RHD - 87023000$367.14Special order, ships in 7-14 days
387028400Ferrari LH Passenger Ventilation Duct Complete RHD - 87028400$293.71Special order, ships in 7-14 days
487023900Ferrari RH Drivers / LH Passenger Ventilation Duct Complete RHD - 87023900$342.66Special order, ships in 7-14 days
587031300Ferrari LH Demister Duct Complete RHD - 87031300$139.49Special order, ships in 7-14 days
687030600Ferrari RH Demister Duct Complete RHD - 87030600$139.49Special order, ships in 7-14 days
784497100Ferrari Footwell Duct - 84497100$100.34Special order, ships in 7-14 days
883127400Ferrari Centre Air Duct Connector - 83127400$21.51Special order, ships in 7-14 days
985692000Ferrari SCREW - 85692000$0.65Available, ships in 3-6 days
1016286124Ferrari Screw M6x20 - 16286124$0.71Special order, ships in 7-14 days
1185833700Ferrari SCREW - 85833700$0.65Available, ships in 3-6 days

All 488 Pista diagrams
