Ferrari 488 Pista — [VEHICLE TRIM] - E.55 - WIPERS AND HEADLAMP WASHERS (diagram 0167)
Exploded view of the [vehicle trim] - e.55 - wipers and headlamp washers on the Ferrari 488 Pista, with 25 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

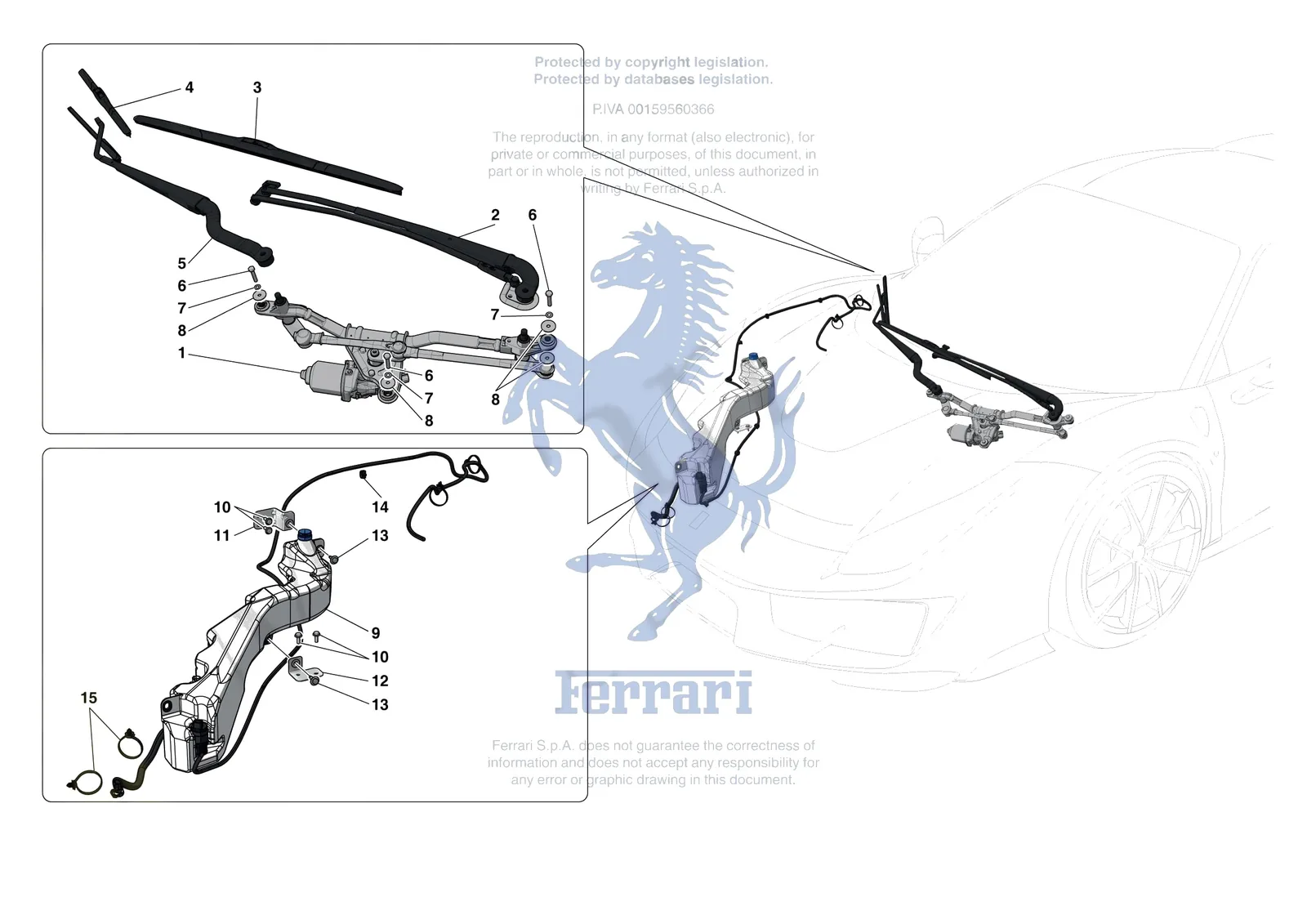

![Ferrari 488 Pista [VEHICLE TRIM] - E.55 - WIPERS AND HEADLAMP WASHERS exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/488-pista/0167.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 12601224 | Ferrari Washer - 12601224 | Superseded | Order 12601274 instead | |
| 12605370 | Ferrari Washer - 12605370 | Superseded | Order 12601274 instead | |
| 12605371 | Ferrari Washer - 12605371 | Superseded | Order 12601274 instead | |
| 680232 | Ferrari Washer - 680232 | Superseded | Order 12601274 instead | |
| 12605374 | Ferrari Wavy Washer - 12605374 | Superseded | Order 12601274 instead | |
| 1 | 85774200 | Ferrari Windscreen Wiper Complete LHD - 85774200 | $1,321.77 | Special order, ships in 7-14 days |
| 1 | 85890100 | Ferrari Windscreen Wiper Complete RHD - 85890100 | $1,811.33 | Special order, ships in 7-14 days |
| 2 | 81511900 | Ferrari Driver Side Windscreen Wiper Arm LHD - 81511900 | $590.91 | Special order, ships in 7-14 days |
| 2 | 82964300 | Ferrari Driver Side Windscreen Wiper Arm RHD - 82964300 | $590.91 | Special order, ships in 7-14 days |
| 3 | 80539000 | Ferrari Drivers Side Wiper Blade RHD - 80539000 | $240.73 | Available, ships in 3-6 days |
| 3 | 80534900 | Ferrari Wiper Blade Driver Side (Left) - 80534900 | $75.74 | In stock |
| 4 | 81511600 | Ferrari 458/488/F8 Wiper Blade Passenger Side (Right) - 81511600 | $64.46 | In stock |
| 4 | 82964000 | Ferrari Passenger Side Windscreen Wiper Blade RHD - 82964000 | $183.83 | Available, ships in 3-6 days |
| 5 | 81511800 | Ferrari Passenger Side Windscreen Wiper Arm LHD - 81511800 | $295.43 | Special order, ships in 7-14 days |
| 5 | 82964200 | Ferrari Passenger Side Windscreen Wiper Arm RHD - 82964200 | $295.43 | Special order, ships in 7-14 days |
| 6 | 10902824 | Ferrari Screw M6 x 30 - 10902824 | $0.17 | Available, ships in 3-6 days |
| 7 | 12601274 | Ferrari Wavy Washer 6mm - 12601274 | $1.04 | Available, ships in 3-6 days |
| 8 | 12640604 | Ferrari Washer D.6 15-25X - 12640604 | $0.27 | Available, ships in 3-6 days |
| 9 | 89382200 | Ferrari Windscreen/Headlight Washer - 89382200 | $979.09 | Special order, ships in 7-14 days |
| 10 | 11625824 | Ferrari Screw 6x18 - 11625824 | $0.71 | Available, ships in 3-6 days |
| 11 | 771609 | Ferrari Rear Bracket - 771609 | $56.27 | Special order, ships in 7-14 days |
| 12 | 771613 | Ferrari Centre Bracket - 771613 | $34.25 | Special order, ships in 7-14 days |
| 13 | 81045300 | Ferrari Screw 6x16 - 81045300 | $1.36 | Special order, ships in 7-14 days |
| 14 | 819125 | Ferrari Clip - 819125 | $0.50 | Special order, ships in 7-14 days |
| 15 | 217854 | Ferrari CLAMP - 217854 | $0.52 | Available, ships in 3-6 days |
