Ferrari 488 Pista — [VEHICLE TRIM] - E.60 - FRONT SUBSTRUCTURE TRIM (diagram 0173)

Exploded view of the [vehicle trim] - e.60 - front substructure trim on the Ferrari 488 Pista, with 47 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

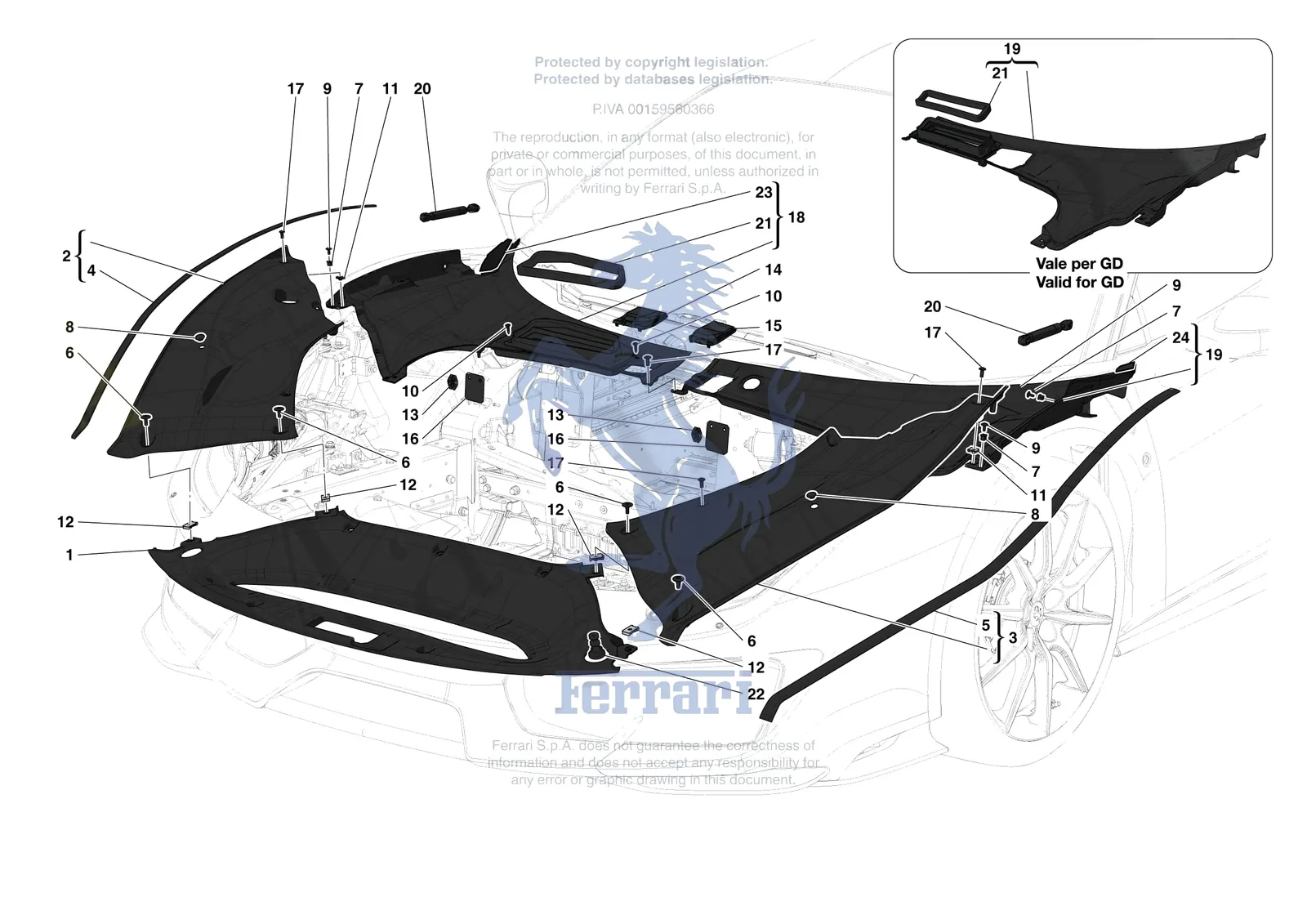

Ferrari 488 Pista [VEHICLE TRIM] - E.60 - FRONT SUBSTRUCTURE TRIM exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
87519900Ferrari LH Underwindscreen Tray Complete LHD - 87519900SupersededOrder 87980500 instead
87149000Ferrari LH Underwindscreen Tray Complete RHD - 87149000SupersededOrder 87980700 instead
87520200Ferrari RH Underwindscreen Tray Complete LHD - 87520200SupersededOrder 880010 instead
170006360Ferrari Central Cosmetic Cover - 70006360$7,928.43Special order, ships in 7-14 days
1782261Ferrari Central Cosmetic Cover - 782261$176.22Special order, ships in 7-14 days
1819803Ferrari Central Cosmetic Cover - 819803$5,828.02Special order, ships in 7-14 days
270006361Ferrari Compl. RH Cosmetic Trim - 70006361$6,497.06Special order, ships in 7-14 days
2819805Ferrari Compl. RH Cosmetic Trim - 819805$4,510.87Special order, ships in 7-14 days
289275600Ferrari Compl. RH Cosmetic Trim - 89275600$183.56Special order, ships in 7-14 days
370006362Ferrari Compl. LH Cosmetic Trim - 70006362$6,497.06Special order, ships in 7-14 days
3819804Ferrari Compl. LH Cosmetic Trim - 819804$4,510.87Special order, ships in 7-14 days
389275100Ferrari Compl. LH Cosmetic Trim - 89275100$183.56Special order, ships in 7-14 days
489275800Ferrari RH Cosmetic Trim Seal - 89275800$543.93Special order, ships in 7-14 days
589275500Ferrari LH Cosmetic Trim Seal - 89275500$543.93Special order, ships in 7-14 days
6256490Ferrari Screw TBEI M5 x 16 - 256490$3.91Available, ships in 3-6 days
714115885Ferrari Fixing Block - 14115885$0.31Available, ships in 3-6 days
814506587Ferrari Rubber Grommet - 14506587$0.38Available, ships in 3-6 days
915538777Ferrari Screw 8x13 - 15538777$0.34Available, ships in 3-6 days
1015689809Ferrari Screw D. 4.2 x 19 TBFIC - 15689809$0.27Available, ships in 3-6 days
1162764200Ferrari Spire Clip - 62764200$0.82Available, ships in 3-6 days
1266927700Ferrari Bracket with Collar - 66927700$1.99Available, ships in 3-6 days
1367315400Ferrari Washer - 67315400$0.82Special order, ships in 7-14 days
1482139100Ferrari RH Underwindscreen Tray Plug LHD - 82139100$14.51Special order, ships in 7-14 days
1582665700Ferrari LH Underwindscreen Tray Plug LHD - 82665700$14.51Special order, ships in 7-14 days
1587258900Ferrari LH Underwindscreen Tray Plug RHD - 87258900$21.64Special order, ships in 7-14 days
1685533700Ferrari Front Firewall Ventilation Flap - 85533700$4.35Special order, ships in 7-14 days
1785833800Ferrari Screw M5 x 14 TBFTX - 85833800$0.90Available, ships in 3-6 days
1870006375Ferrari Compl. LH Underwindscreen Tr - 70006375$5,480.66Special order, ships in 7-14 days
18918624Ferrari Compl. LH Underwindscreen Tr - 918624$5,958.55Special order, ships in 7-14 days
1870006363Ferrari Compl. RH Underwindscreen Tr - 70006363$11,856.54Contact us to order
18820859Ferrari Compl. RH Underwindscreen Tr - 820859$5,930.59Special order, ships in 7-14 days
1887980600Ferrari RH Underwindscreen Tray Complete LHD - 87980600SupersededOrder 880010 instead
18880010Ferrari RH Underwindscreen Tray Complete LHD - 880010$342.66Available, ships in 3-6 days
1887980800Ferrari RH Underwindscreen Tray Complete RHD - 87980800$342.66Available, ships in 3-6 days
1970006364Ferrari Compl. LH Underwindscreen Tr - 70006364$11,856.54Contact us to order
1970006376Ferrari Compl. LH Underwindscreen Tr - 70006376$5,480.66Special order, ships in 7-14 days
19820870Ferrari Compl. LH Underwindscreen Tr - 820870$5,930.59Special order, ships in 7-14 days
19918633Ferrari Compl. RH Underwindscreen Tr - 918633$7,019.25Special order, ships in 7-14 days
1987980500Ferrari LH Underwindscreen Tray Complete LHD - 87980500$205.58Special order, ships in 7-14 days
1987980700Ferrari LH Underwindscreen Tray Complete RHD - 87980700$367.14Special order, ships in 7-14 days
2089275900Ferrari Stabilus Gas Strut - 89275900$60.89Special order, ships in 7-14 days
21873658Ferrari Upper Air Duct Seal - 873658$20.55Special order, ships in 7-14 days
2183807300Ferrari Upper Air Duct Seal LHD - 83807300$21.51Special order, ships in 7-14 days
2183341200Ferrari Upper Air Duct Seal RHD - 83341200$10.48Available, ships in 3-6 days
22849815Ferrari Anti Vibration Damper - 849815$51.62Available, ships in 3-6 days
2383104400Ferrari RH Underwindscreen Tray Late - 83104400$169.68Special order, ships in 7-14 days
2483104500Ferrari LH Underwindscreen Tray Late - 83104500$169.68Special order, ships in 7-14 days

All 488 Pista diagrams
