Ferrari 488 Pista — [ELECTRICAL SYSTEM] - F.07 - LOW VOLTAGE WIRING HARNESSES (diagram 0182)

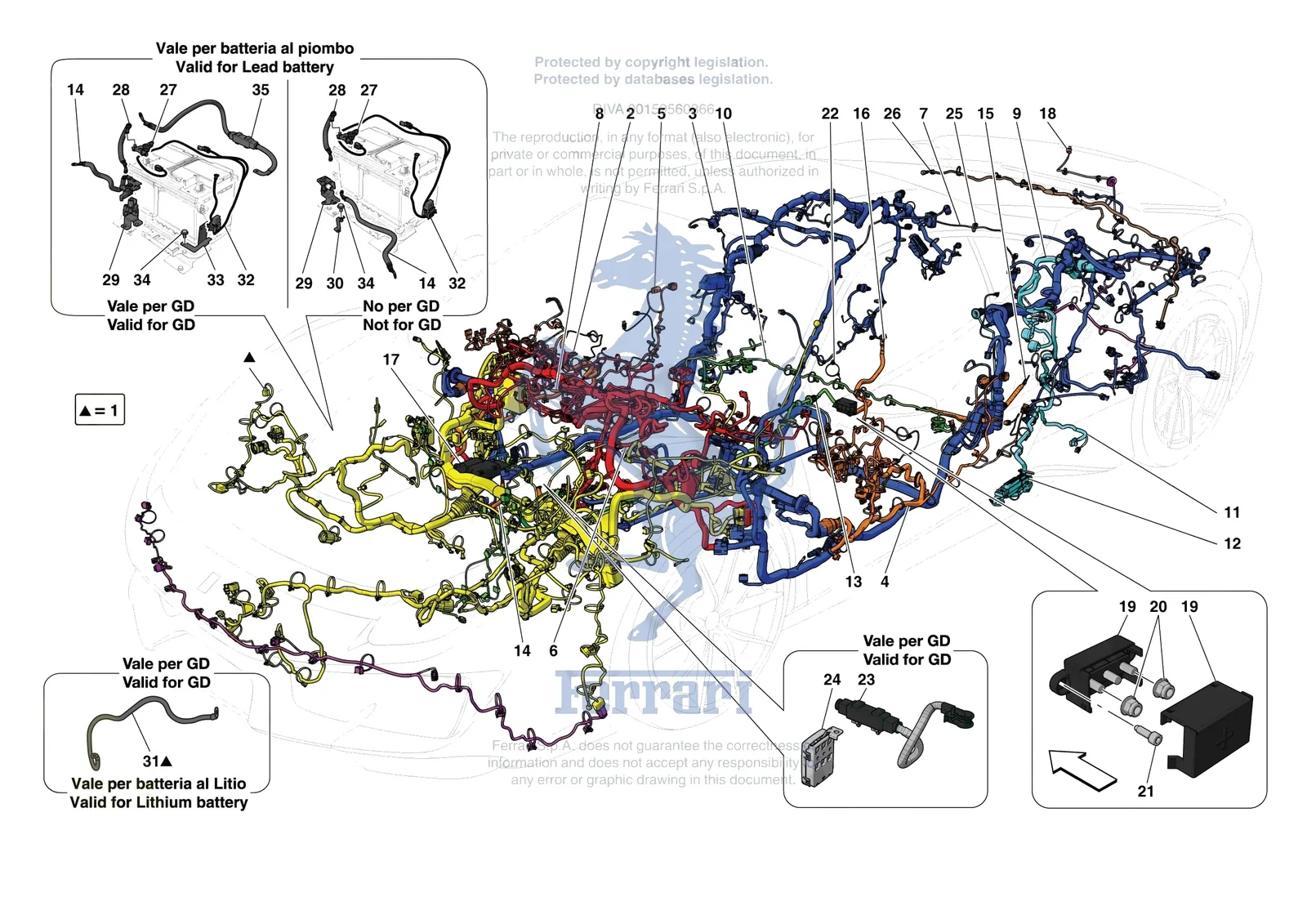

Exploded view of the [electrical system] - f.07 - low voltage wiring harnesses on the Ferrari 488 Pista, with 108 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

Ferrari 488 Pista [ELECTRICAL SYSTEM] - F.07 - LOW VOLTAGE WIRING HARNESSES exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
341861Ferrari Battery Sensor - 341861$240.39Special order, ships in 7-14 days
140366Ferrari Cable Junction Box - 140366SupersededOrder 170114 instead
153357Ferrari Terminal Box - 153357SupersededOrder 170114 instead
120064Ferrari Terminal Connection Bloc - 120064SupersededOrder 170114 instead
1953506Ferrari Cavo Anteriore Base - 953506$4,114.57Special order, ships in 7-14 days
1953530Ferrari Cavo Anteriore Base Gdx - 953530$5,874.64Special order, ships in 7-14 days
1953532Ferrari Cavo Anteriore Full Nfa - 953532$7,224.41Special order, ships in 7-14 days
1953531Ferrari Cavo Anteriore Full No Nfa - 953531$7,126.50Special order, ships in 7-14 days
1953508Ferrari Cavo Anteriore Full Par2 Nfa - 953508$5,739.43Special order, ships in 7-14 days
1953507Ferrari Cavo Anteriore Full Par2 No - 953507$5,890.96Special order, ships in 7-14 days
1953509Ferrari Cavo Anteriore Full Par2 Pac - 953509$6,163.71Special order, ships in 7-14 days
1953510Ferrari Cavo Anteriore Full Par2 Pac - 953510$6,238.31Special order, ships in 7-14 days
1343314Ferrari Front Cable - 343314$4,485.24Special order, ships in 7-14 days
1343315Ferrari Front Cable - 343315$6,084.45Special order, ships in 7-14 days
1343316Ferrari Front Cable - 343316SupersededOrder 953508 instead
1343317Ferrari Front Cable - 343317$6,674.23Special order, ships in 7-14 days
1343318Ferrari Front Cable - 343318$6,753.49Special order, ships in 7-14 days
1786029Ferrari Front Cable - 786029SupersededOrder 953530 instead
1786030Ferrari Front Cable - 786030SupersededOrder 953531 instead
1786032Ferrari Front Cable - 786032SupersededOrder 953532 instead
2343319Ferrari Dashboard Cable - 343319$954.60Special order, ships in 7-14 days
2343320Ferrari Dashboard Cable - 343320$1,615.50Special order, ships in 7-14 days
2343321Ferrari Dashboard Cable - 343321$1,199.37Special order, ships in 7-14 days
2343322Ferrari Dashboard Cable - 343322$1,786.85Special order, ships in 7-14 days
2343323Ferrari Dashboard Cable - 343323$1,934.88Special order, ships in 7-14 days
2343324Ferrari Dashboard Cable - 343324$1,835.80Special order, ships in 7-14 days
2343325Ferrari Dashboard Cable - 343325$2,004.82Special order, ships in 7-14 days
2786034Ferrari Dashboard Cable - 786034$1,811.33Special order, ships in 7-14 days
2786035Ferrari Dashboard Cable - 786035$2,028.13Special order, ships in 7-14 days
2953511Ferrari Dashboard Cable - 953511$856.69Special order, ships in 7-14 days
2953512Ferrari Dashboard Cable - 953512$2,834.73Special order, ships in 7-14 days
2953513Ferrari Dashboard Cable - 953513$1,101.47Special order, ships in 7-14 days
2953514Ferrari Dashboard Cable - 953514$1,664.45Special order, ships in 7-14 days
2953515Ferrari Dashboard Cable - 953515$1,884.75Special order, ships in 7-14 days
2953516Ferrari DASHBOARD CABLE - 953516Price on requestContact us for price and availability
2953517Ferrari Dashboard Cable - 953517$1,864.95Special order, ships in 7-14 days
2953533Ferrari Dashboard Cable - 953533$1,713.42Special order, ships in 7-14 days
2953534Ferrari DASHBOARD CABLE - 953534Price on requestContact us for price and availability
3953535Ferrari Cavo Posteriore Base - 953535$8,958.83Special order, ships in 7-14 days
3953518Ferrari Cavo Posteriore Base Coupe - 953518$5,566.91Special order, ships in 7-14 days
3953519Ferrari Cavo Posteriore Full - 953519$8,147.57Special order, ships in 7-14 days
3953520Ferrari Cavo Posteriore Full Park An - 953520$8,783.99Special order, ships in 7-14 days
3953536Ferrari Cavo Posteriore Full Park An - 953536$9,112.69Special order, ships in 7-14 days
3953521Ferrari Cavo Posteriore Full Park Di - 953521$8,457.61Special order, ships in 7-14 days
3953537Ferrari Cavo Posteriore Full Park Di - 953537$9,324.84Special order, ships in 7-14 days
3343326Ferrari Rear Cable - 343326$5,958.55Special order, ships in 7-14 days
3343327Ferrari Rear Cable - 343327$8,928.53Special order, ships in 7-14 days
3343328Ferrari Rear Cable - 343328$9,257.23Special order, ships in 7-14 days
3343329Ferrari Rear Cable - 343329SupersededOrder 953521 instead
3786037Ferrari Rear Cable - 786037SupersededOrder 953535 instead
3786039Ferrari Rear Cable - 786039SupersededOrder 953536 instead
3786040Ferrari Rear Cable - 786040SupersededOrder 953537 instead
4343023Ferrari Driver Side Door Cable - 343023$611.91Special order, ships in 7-14 days
4343024Ferrari Driver Side Door Cable - 343024$881.17Special order, ships in 7-14 days
4343074Ferrari Driver Side Door Cable - 343074$832.22Special order, ships in 7-14 days
4343075Ferrari Driver Side Door Cable - 343075$856.69Special order, ships in 7-14 days
4317557Ferrari Driver Side Door Cable LHD - 317557$832.22Special order, ships in 7-14 days
4320860Ferrari Driver Side Door Cable LHD - 320860$709.82Special order, ships in 7-14 days
4319414Ferrari Driver Side Door Cable RHD - 319414$881.17Special order, ships in 7-14 days
4320883Ferrari Driver Side Door Cable RHD - 320883$856.69Special order, ships in 7-14 days
5343025Ferrari Passenger Side Door Cable - 343025$562.96Special order, ships in 7-14 days
5343027Ferrari Passenger Side Door Cable - 343027$832.22Special order, ships in 7-14 days
5343076Ferrari Passenger Side Door Cable - 343076$783.26Special order, ships in 7-14 days
5343077Ferrari Passenger Side Door Cable - 343077$807.74Special order, ships in 7-14 days
5317560Ferrari Passenger Side Door Cable LHD - 317560$758.79Special order, ships in 7-14 days
5320861Ferrari Passenger Side Door Cable LHD - 320861$636.39Special order, ships in 7-14 days
5319415Ferrari Passenger Side Door Cable RHD - 319415$807.74Special order, ships in 7-14 days
5320885Ferrari Passenger Side Door Cable RHD - 320885$783.27Special order, ships in 7-14 days
6317955Ferrari Air Con Control Panel Extension - 317955$100.34Special order, ships in 7-14 days
7343189Ferrari Rear Fog Light Wiring Harnes - 343189$210.49Special order, ships in 7-14 days
7982883Ferrari Rear Fog Light Wiring Harnes - 982883$190.90Special order, ships in 7-14 days
8307038Ferrari Passenger Airbag Cables LHD - 307038$100.34Special order, ships in 7-14 days
8312757Ferrari Passenger Airbag Cables RHD - 312757$100.34Special order, ships in 7-14 days
9313160Ferrari Dct Cable - 313160$1,107.99Special order, ships in 7-14 days
10313952Ferrari Tank Wiring Harness - 313952$369.30Special order, ships in 7-14 days
11342209Ferrari Vehicle Lift Cable - 342209$660.87Special order, ships in 7-14 days
11786045Ferrari Vehicle Lift Cable - 786045$611.91Special order, ships in 7-14 days
12261704Ferrari Cap Connector For ECU - 261704$78.66Special order, ships in 7-14 days
13307436Ferrari Battery Cables LHD - 307436$320.06Special order, ships in 7-14 days
13312759Ferrari Battery Cables RHD - 312759$344.69Special order, ships in 7-14 days
14303357Ferrari Battery Ground Cables Complete - 303357$151.74Special order, ships in 7-14 days
14300473Ferrari Battery Ground Cables Complete LHD - 300473$393.93Special order, ships in 7-14 days
14819135Ferrari Compl. Battery Ground Cables - 819135$211.73Special order, ships in 7-14 days
14819136Ferrari Compl. Battery Ground Cables - 819136$162.48Special order, ships in 7-14 days
15255982Ferrari Chassis Ground Cable - 255982$98.46Special order, ships in 7-14 days
16826074Ferrari Engine Ground Braid - 826074$140.32Special order, ships in 7-14 days
17307439Ferrari Battery ECU Complete - 307439$344.69Special order, ships in 7-14 days
18746598Ferrari Brake Light Wiring Harness - 746598$83.20Special order, ships in 7-14 days
19170114Ferrari Terminal Box - 170114$86.15Available, ships in 3-6 days
2012578211Ferrari Flanged Nyloc Nut - 12578211$0.57Special order, ships in 7-14 days
2111568124Ferrari Screw M6 x 20 TCE - 11568124$1.78Available, ships in 3-6 days
22318547Ferrari Ring Clamp - 318547$3.70Special order, ships in 7-14 days
23277406Ferrari Battery Positive Wiring Harness - 277406$199.41Available, ships in 3-6 days
24312762Ferrari CFO ECU RHD - 312762$344.69Special order, ships in 7-14 days
2510815787Ferrari Clamp - 10815787$0.31Available, ships in 3-6 days
26343191Ferrari Rear Bumper Cable - 343191$293.71Special order, ships in 7-14 days
26343192Ferrari Rear Bumper Cable - 343192$685.34Special order, ships in 7-14 days
27798759Ferrari Battery Sensor - 798759$327.81Available, ships in 3-6 days
28273184Ferrari Ground Cables From Sensor To Pole - 273184$73.85Special order, ships in 7-14 days
29272083Ferrari S&S Negative Pole Complete LHD - 272083$194.48Special order, ships in 7-14 days
29314517Ferrari S&S Negative Pole Complete RHD - 314517$137.04Special order, ships in 7-14 days
30744953Ferrari Dummy Terminal Fastener - 744953$110.13Special order, ships in 7-14 days
31263383Ferrari Power Cable RHD - 263383$190.90Special order, ships in 7-14 days
32742960Ferrari Cable With Fuse Holder For S - 742960$1,395.20Special order, ships in 7-14 days
32742967Ferrari Cable With Fuse Holder For S - 742967$1,395.20Special order, ships in 7-14 days
33280772Ferrari Bracket RHD - 280772$85.64Special order, ships in 7-14 days
3411625624Ferrari/Maserati Screw - 11625624$1.50In stock
35742956Ferrari Power Cable - 742956$1,395.20Special order, ships in 7-14 days
