Ferrari 488 Pista — [ELECTRICAL SYSTEM] - F.10 - AUDIO UNIT (diagram 0185)

Exploded view of the [electrical system] - f.10 - audio unit on the Ferrari 488 Pista, with 69 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

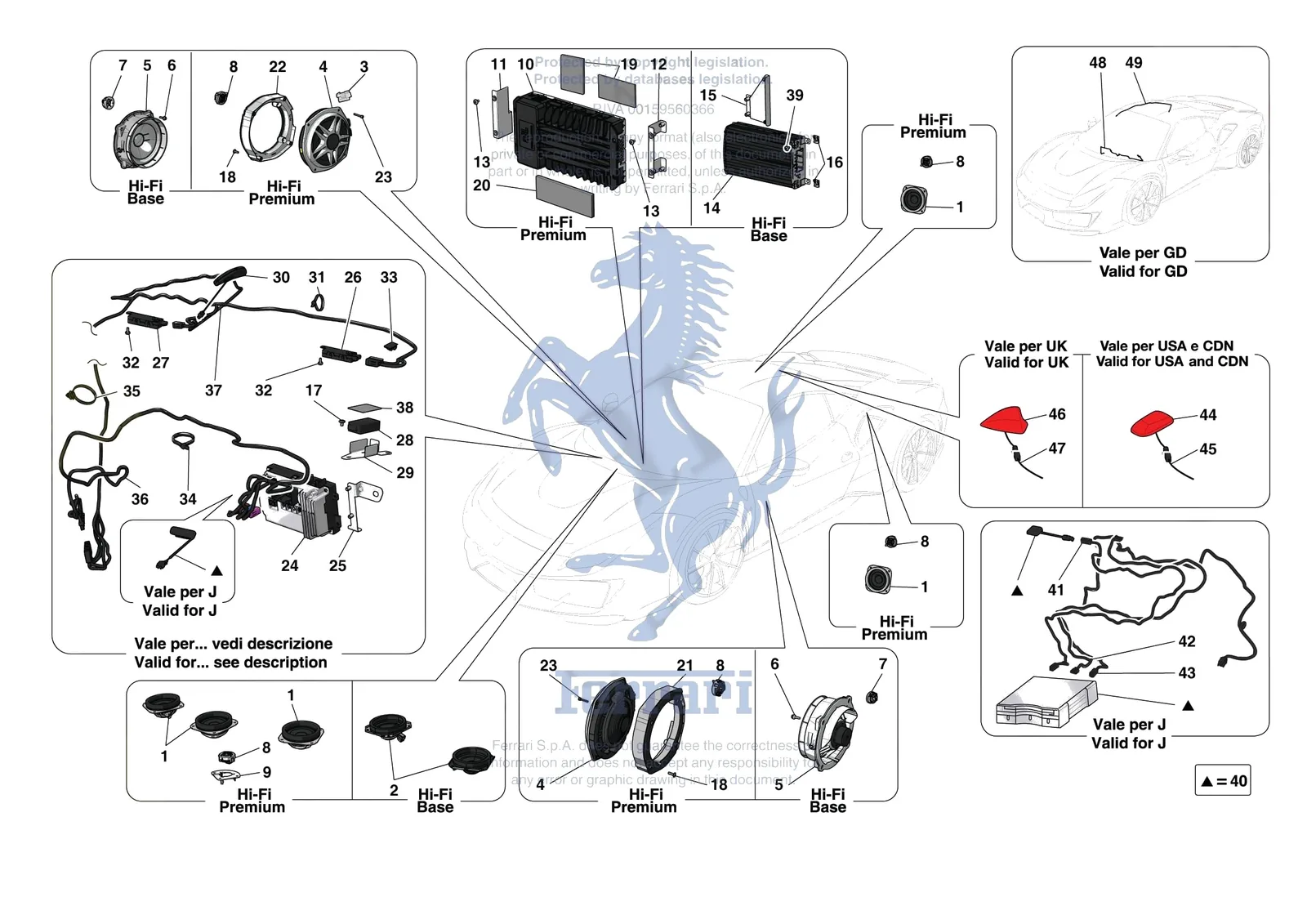

Ferrari 488 Pista [ELECTRICAL SYSTEM] - F.10 - AUDIO UNIT exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
318686Ferrari 8-Channel Amplifier. Base Audio - 318686SupersededOrder 815830 instead
265842Ferrari Passenger Compartment SDARS Cable - 265842SupersededOrder 270766 instead
11566224Ferrari Screw 5x14 - 11566224$0.77Available, ships in 3-6 days
307280Ferrari USB Cable - 307280SupersededOrder 307182 instead
1262757Ferrari Twiddler - 262757$369.86Special order, ships in 7-14 days
2269772Ferrari Twiddler - 269772$109.25Special order, ships in 7-14 days
3322884Ferrari Secondary Lock - 322884$2.07Special order, ships in 7-14 days
4254984Ferrari Woofer 200mm - 254984$562.96Special order, ships in 7-14 days
5334279Ferrari Woofer - 334279$183.56Special order, ships in 7-14 days
685834000Ferrari Screw M5 x 25 - 85834000$0.71Special order, ships in 7-14 days
7251541Ferrari Tweeter - 251541$56.79Special order, ships in 7-14 days
8258166Ferrari Tweeter - 258166$214.46Special order, ships in 7-14 days
982539400Ferrari Adaptor For Tweeter - 82539400$9.58Special order, ships in 7-14 days
10310726Ferrari Becker Amplifier - 310726$9,098.71Special order, ships in 7-14 days
1187254800Ferrari RH Amplifier Mounting Bracket Complete LHD - 87254800$58.73Special order, ships in 7-14 days
1187380900Ferrari RH Amplifier Mounting Bracket Complete RHD - 87380900$61.16Special order, ships in 7-14 days
1287255000Ferrari LH Amplifier Mounting Bracket Complete LHD - 87255000$61.16Special order, ships in 7-14 days
1287381000Ferrari LH Amplifier Mounting Bracket Complete RHD - 87381000$58.73Special order, ships in 7-14 days
1385833700Ferrari SCREW - 85833700$0.65Available, ships in 3-6 days
14815830Ferrari 8-Channel Amplifier. Base Au - 815830$2,051.44Special order, ships in 7-14 days
1587463000Ferrari LH Amplifier Mounting Bracket Complete RHD - 87463000$44.03Special order, ships in 7-14 days
1587255300Ferrari RH Mounting Bracket For Compl. 8 Channel Amplifier - 87255300$46.48Special order, ships in 7-14 days
1667278400Ferrari BRACKET - 67278400$21.60Special order, ships in 7-14 days
1785691900Ferrari Screw M5 x 8 TBFTX - 85691900$0.65Available, ships in 3-6 days
1885833900Ferrari Screw M5 x 16 TBFTX - 85833900$0.65Available, ships in 3-6 days
19179309Ferrari ADHESIVE FOAM - 179309$8.28Available, ships in 3-6 days
20142798Ferrari Rubber Shim - 142798$2.82Available, ships in 3-6 days
21260130Ferrari LH Woofer Adapter - 260130$44.24Special order, ships in 7-14 days
22260131Ferrari RH Woofer Adapter - 260131$44.24Special order, ships in 7-14 days
2314304524Ferrari Screw - 14304524$0.86Available, ships in 3-6 days
24310728Ferrari Becker Nit - 310728$11,462.56Contact us to order
24316113Ferrari Becker Nit - 316113$13,590.96Contact us to order
24316114Ferrari Becker Nit - 316114$14,346.27Contact us to order
24316115Ferrari Becker Nit - 316115$12,304.12Contact us to order
24310727Ferrari Becker Nit - ECE Navigation - 310727$12,124.61Contact us to order
24310729Ferrari Becker Row Nit - 310729$13,120.04Contact us to order
2587255600Ferrari Nit Mounting Bracket Complete - 87255600$44.03Special order, ships in 7-14 days
2587381400Ferrari Nit Mounting Bracket Complete - 87381400$44.03Special order, ships in 7-14 days
26298613Ferrari FM2/DAB Amplifier - 298613$443.17Special order, ships in 7-14 days
27277243Ferrari AM/FM Amplifier - 277243$241.27Special order, ships in 7-14 days
28316116Ferrari Can Box - 316116$1,517.60Special order, ships in 7-14 days
28321663Ferrari Can Box - 321663$1,517.60Special order, ships in 7-14 days
2986775700Ferrari Canbox Mounting Bracket - 86775700$46.48Available, ships in 3-6 days
30286160Ferrari Bluetooth Antenna - 286160$961.65Special order, ships in 7-14 days
3110815787Ferrari Clamp - 10815787$0.31Available, ships in 3-6 days
3267079400Ferrari Screw - 67079400$4.75Special order, ships in 7-14 days
33266000Ferrari Clip - 266000$1.80Special order, ships in 7-14 days
34145854Ferrari Cable tie 200mm - 145854$0.57Available, ships in 3-6 days
35217854Ferrari CLAMP - 217854$0.52Available, ships in 3-6 days
36317006Ferrari VP4 Dashboard Cable FM1-FM2-DAB-BT- - 317006$416.09Special order, ships in 7-14 days
36317010Ferrari VP4 Dashboard Cable FM1-FM2-DAB-BT- - 317010$293.71Special order, ships in 7-14 days
36317590Ferrari VP4 Dashboard Cable FM1-FM2-DAB-BT- - 317590$367.14Special order, ships in 7-14 days
36320448Ferrari VP4 Dashboard Cable FM1-FM2-DAB-BT- - 320448$367.14Special order, ships in 7-14 days
36320750Ferrari VP4 Dashboard Cable FM1-FM2-DAB-BT- - 320750$367.14Special order, ships in 7-14 days
37304348Ferrari FM/AM/BT FM/FM2 Passenger Compartment Cable - 304348$489.54Special order, ships in 7-14 days
37304714Ferrari FM/AM/BT FM/FM2 Passenger Compartment Cable - 304714$758.79Special order, ships in 7-14 days
37303145Ferrari FM/FM2 Passenger Compartment - 303145$734.31Special order, ships in 7-14 days
37304718Ferrari FM/FM2 Passenger Compartment - 304718$489.54Special order, ships in 7-14 days
37304656Ferrari FM/FM2 Passenger Compartment Cable FM1/FM2/DAB - 304656$1,003.57Special order, ships in 7-14 days
40306860Ferrari VICS System Kit - 306860$12,635.16Special order, ships in 7-14 days
41307180Ferrari VICS Card Reader - 5.8 GHz C - 307180$149.29Special order, ships in 7-14 days
42307181Ferrari VICS Card Reader - 2.5 GHz C - 307181$117.47Special order, ships in 7-14 days
43307182Ferrari VICS Card Reader - NIT CABLE - 307182$225.17Special order, ships in 7-14 days
44305819Ferrari SDARS Antenna - 305819Price on requestContact us for price and availability
45270766Ferrari Passenger Compartment SDARS Cable - 270766$440.56Special order, ships in 7-14 days
46813376Ferrari ROOF DAB ANTENNA - 813376Price on requestContact us for price and availability
47789674Ferrari Roof Dab Antenna Cable - 789674$269.23Special order, ships in 7-14 days
48304673Ferrari Dashboard Bluetooth-Nit Antenna Cable - 304673$181.11Special order, ships in 7-14 days
49304057Ferrari Passenger Compartment Bluetooth-Nit Antenna Cable - 304057$239.85Special order, ships in 7-14 days

All 488 Pista diagrams
